Surface Mount 0604 Channel
$100.00
Item
surface-mount-0604-channel
Only %1 left
ARCHITECTURAL COLLECTION
Description
ESSENCE Surface Mount 0604 Channels feature an ultra-shallow profile for a minimal appearance. This versatile fixture is ideal for shelf, cove, above-cabinet, and under-cabinet applications where a slim profile is desired.
- Field-cuttable components for on-site construction
- Channels available in black, white, and satin aluminum

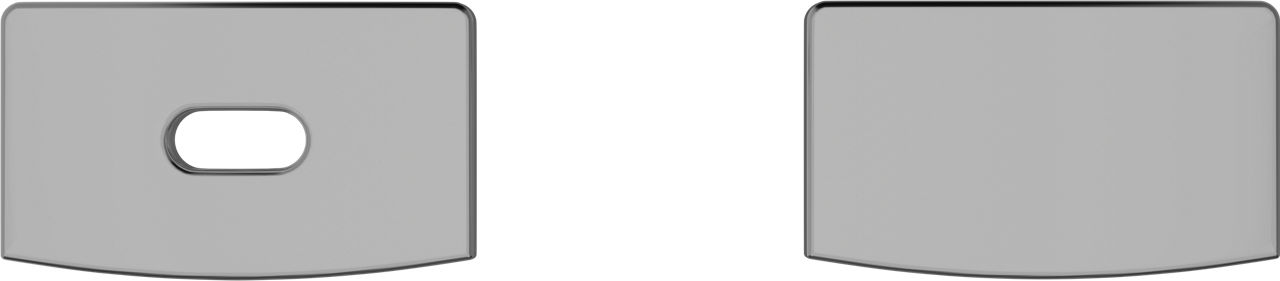

- Construction. Extruded aluminum channel, acrylic lens, and metal end caps
- Channels available in black, white, and satin aluminum
- Registered CEC appliance database. complies with CEC 2019 Title 24 Part 6
- ETL Listed Class 2, Damp Location
- Approved for use in closet storage spaces per NEC Article 410.16
- L70. 50,000 hours min
- Warranty. Power supplies 5 years. all other components 10 years
1. Select Extruded Channel With Lens (Required)
Surface Mount 0604 Channel
Description
ESSENCE Surface Mount 0604 Channels feature an ultra-shallow profile for a minimal appearance. This versatile fixture is ideal for shelf, cove, above-cabinet, and under-cabinet applications where a slim profile is desired.
| ESSF0604 | ESSENCE Surface Mount 0.6"W X 0.4"H |
| 48 | 48 IN |
| 96 | 96 IN |
| W | White |
| B | Black |
| A | Satin Aluminum |
| W | White (Paintable) |
4. Select LED Strip (Required To Choose One)
LED Strip Premium Indoor Static White
Description
ESSENCE premium LED Strip provides made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and impeccable service, ESSENCE is easy to specify, easy to install and blends seamlessly into the architectural design to elevate any space.
| ESLT | ESSENCE LED Strip Premium Indoor Static White |
| U | U-Series |
| P | P-Series |
Whole Numbers Only
| 200 | 200 LM/FT |
| 300 | 300 LM/FT |
| 500 | 500 LM/FT |
| 800 | 800 LM/FT |
| 924 | 2400K |
| 927 | 2700K |
| 930 | 3000K |
| 935 | 3500K |
| 942 | 4200K |
| N | No Leads |
| 1 | 1 Feed, Soldered Leads |
LED Strip Premium Indoor Warm Dim
Description
ESSENCE premium LED Strip provides made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and impeccable service, ESSENCE is easy to specify, easy to install and blends seamlessly into the architectural design to elevate any space.
| ESLT | ESSENCE LED Strip Premium Indoor Warm Dim |
| D | D-Series |
Whole Numbers Only
| 500 | 500 LM/FT |
| 350 | 350 LM/FT |
| 9W3018 | Warm Dim 3000K-1800K |
| N | No Leads |
| 1 | 1 Feed, Soldered Leads |
LED Strip Standard Indoor Static White
Description
The ESSENCE Standard Series Static White LED Strip is a budget-friendly, versatile light strip perfect for illuminating tight spaces, and can be paired with a channel for a finished appearance.
| ESLT | ESSENCE LED Strip Standard Indoor Static White |
| S | S-Series |
| 8 | 8 FT |
| 16 | 16 FT |
| 100 | 100 FT |
| 185 | 185 LM/FT |
| 315 | 315 LM/FT |
| 470 | 470 LM/FT |
| 927 | 2700K |
| 930 | 3000K |
| 935 | 3500K |
| N | No Leads |
| 1 | 1 Feed, Soldered Leads |
| 2 | 2 Feeds, Soldered Leads |
LED Strip Standard Indoor Strip to Wire Connector
LED Strip Standard Indoor Strip to Strip Connector
5. Select Power Supply (Required Calculate Power Before Choosing)
Power Supply Phase Dimming Remote 24VDC
Description
Remote Power Supply for dimming down to 0.2%. 120V input voltage with 24V DC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| ELV | Reverse-Phase, Forward-Phase, TRIAC |
| 120 | 120V |
Power Supply 0-10V Remote 24VDC 5%
Description
Remote Power Supply for 0-10V dimming down to 5%. Universal input 120V-277V with 24V DC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| 010 | 0-10V |
| 120-277 | 120-277V |
Power Supply EldoLED Lineardrive 0-10V Remote 24VDC 0.1%
Description
Remote eldoLED LINEARdrive Power Supply for 0-10V dimming down to 0.1%. Linear dimming curve. Universal input 120V-277V with 24VDC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| 1010 | 0-10V |
| 120-277 | 120-277V |
Power Supply Lutron Hi-Lume Ecosystem/3-Wire Remote 24VDC 0.1%
Description
Remote Lutron Hi-lume Power Supply for EcoSystem compatibility with dimming down to 0.1%. Universal input 120V-277V with 24V DC output available in 100W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 100 | 100W |
| 24 | 24VDC |
| HLECO | Lutron Hi-Lume ECO/3-Wire |
| 120-277 | 120-277V |
Power Supply Non-Dimming Remote 24VDC
Description
Remote Power Supply for applications where dimming is not required. Universal input 120V-277V with 24VDC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| ND | Non-Dimming |
| 120-277 | 120-277V |
