ESSENCE Fixtures

ESSENCE provides premier quality, made-to-order, specification-grade linear task and accent lighting solutions.

RECESSED FLANGED 0604

Dimensions
  • 1.0" W X 0.41" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 190 - 725 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

RECESSED FLANGED 0606

Dimensions
  • 1.0" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 170 - 625 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

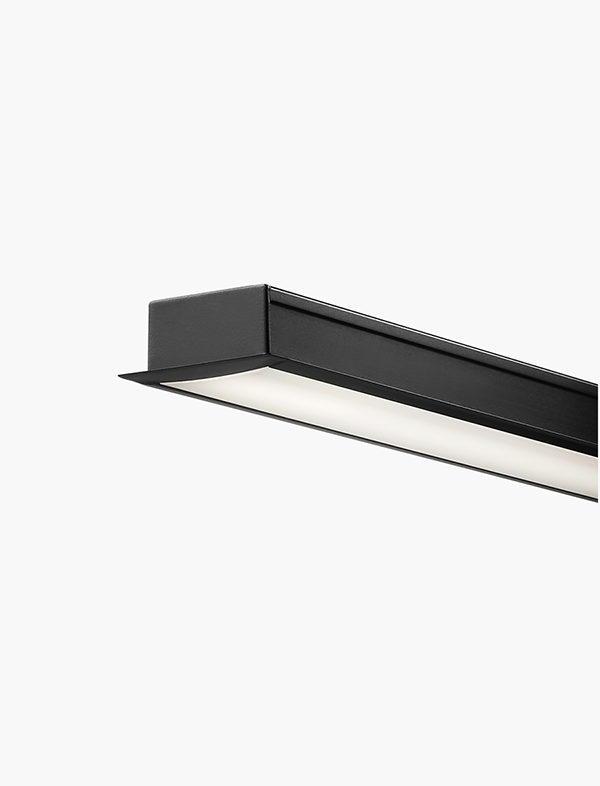

RECESSED FLANGED 1206

Dimensions
  • 1.54" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 170 - 735 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

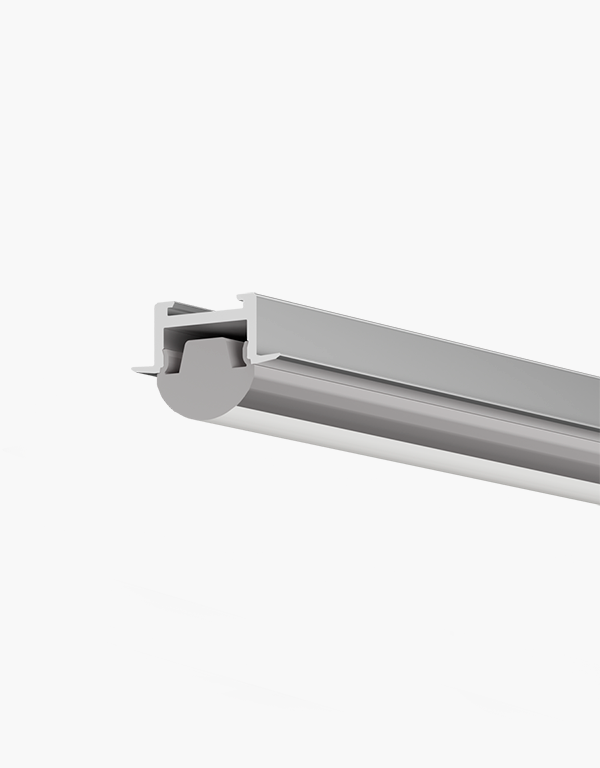

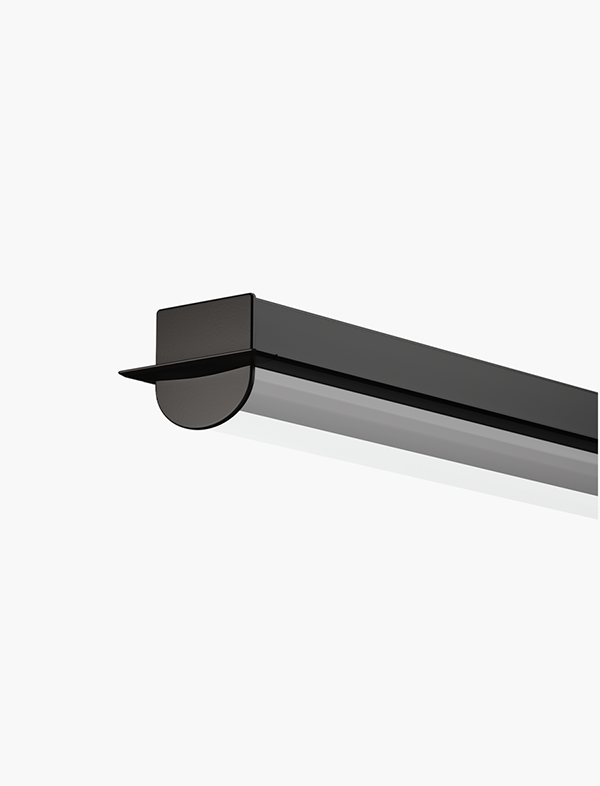

RECESSED FLANGED 0809 GRAZER

Dimensions
  • 1.2" W X 0.85" H
  • 0.84" W Lens
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 65 - 245 lm/ft
  • Center Beam Candlepower 515-2270 cd
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

RECESSED FLANGED 0606
WALL WASH

Dimensions
  • 1.0" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 155 - 585 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

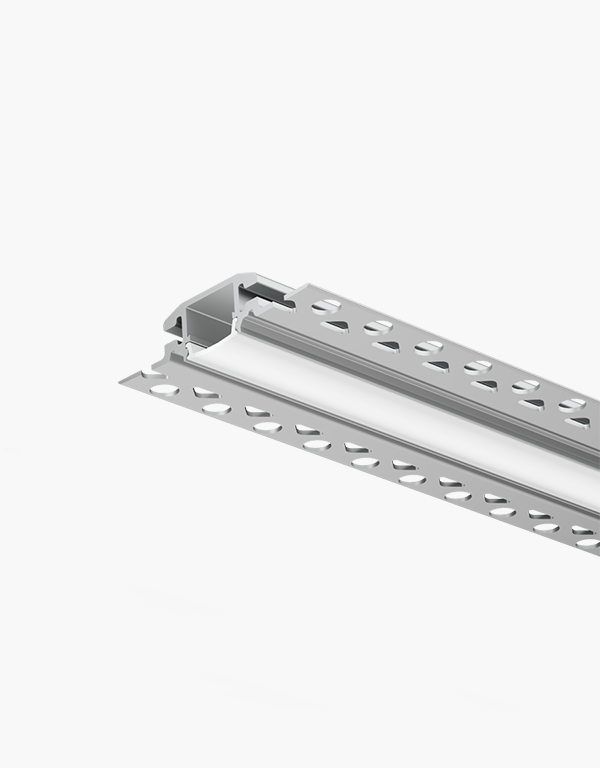

RECESSED FLANGELESS
MUD-IN 0605

Dimensions
  • 2.2" W X 0.5" H
  • 0.6" W Lens
  • Satin Aluminum (Not Visible)
  • Delivered Lumens: 170 - 625 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

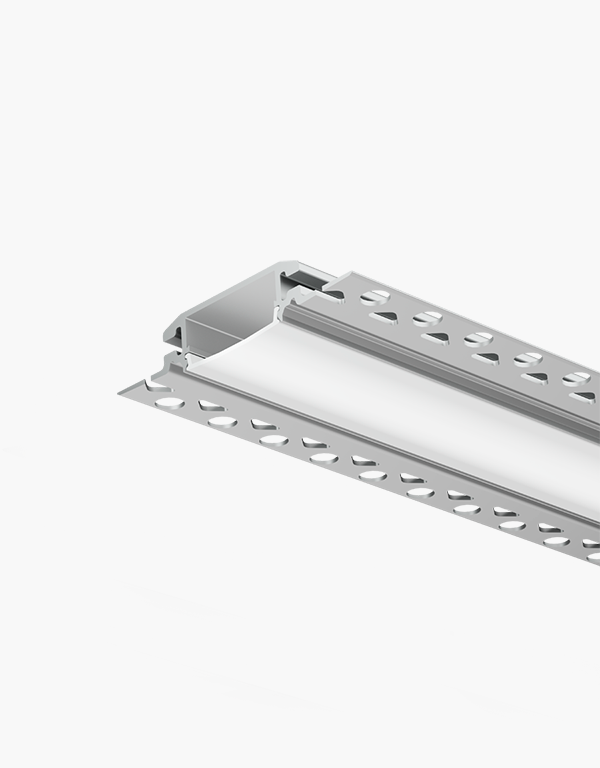

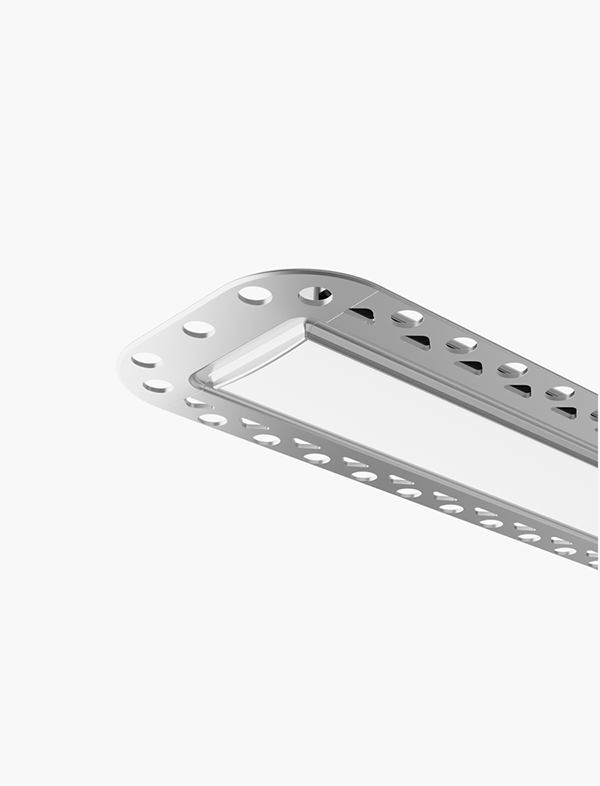

RECESSED FLANGLESS
MUD-IN 1205



Dimensions
  • 2.7" W X 0.4" H
  • 1.1" W Lens
  • Satin Aluminum (Not Visible)
  • Delivered Lumens: 170 - 735 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

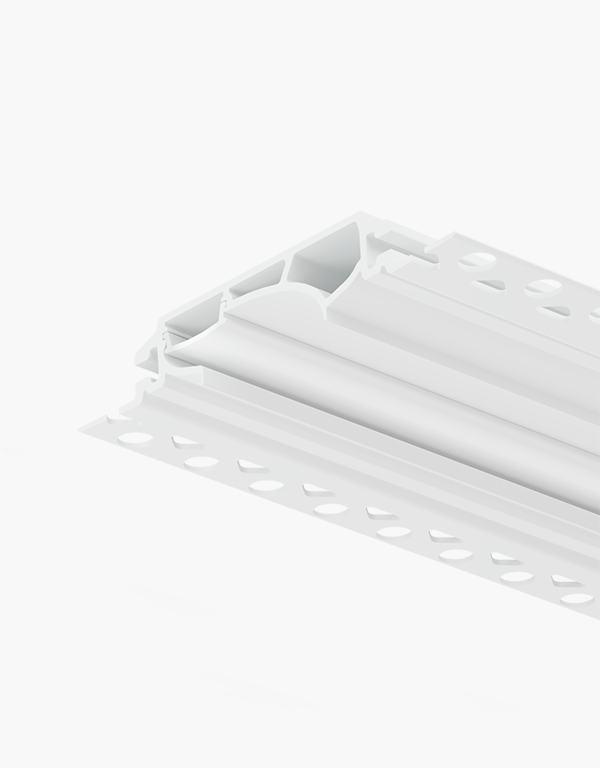

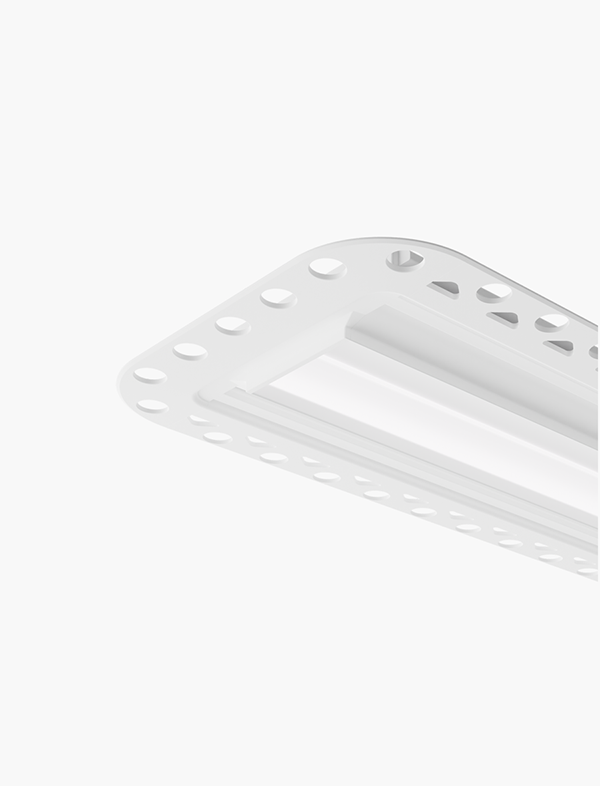

RECESSED FLANGLESS
MUD-IN WALL WASH



Dimensions
  • 3.6" W X 0.5" H
  • 1.1" W Aperture
  • White
  • Delivered Lumens: 135 - 540 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

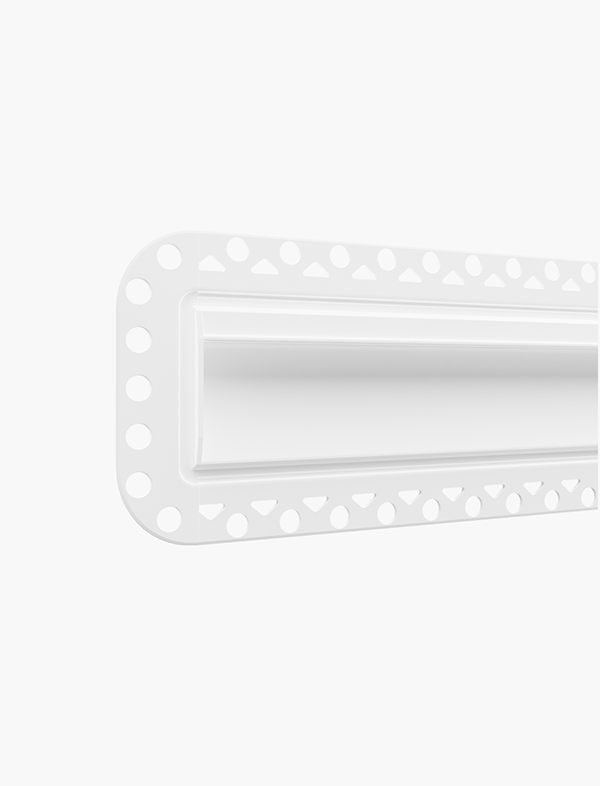

RECESSED FLANGELESS

MUD-IN COVE/TOE-KICK



Dimensions
  • 3.2" W X 0.5" H
  • 1.2" W Aperture
  • White
  • Delivered Lumens: 120 - 440 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

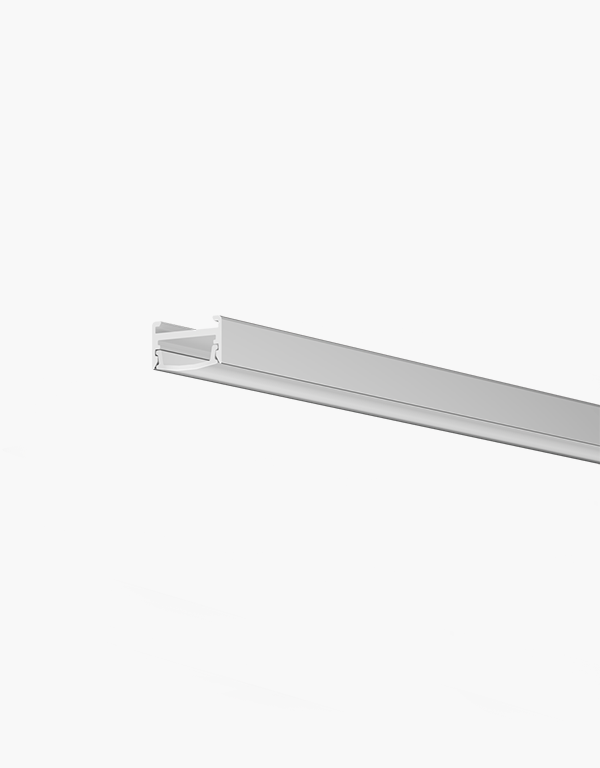

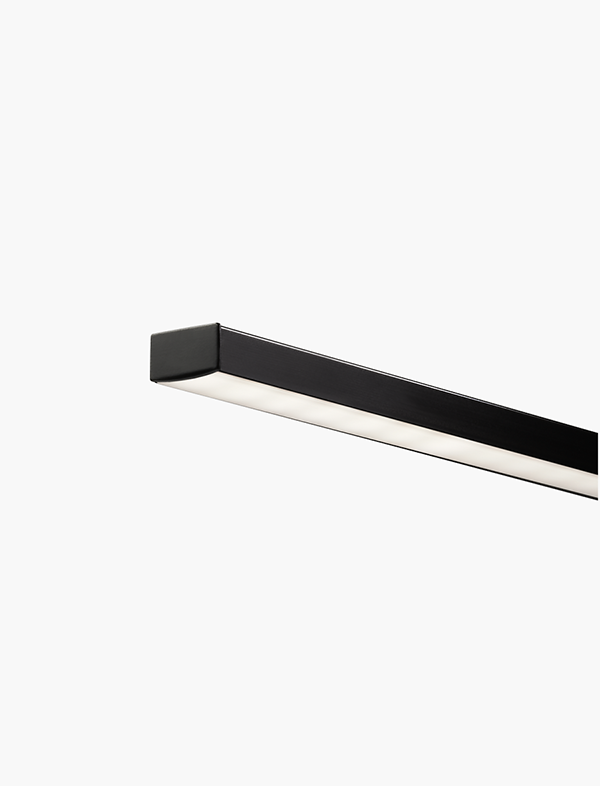

SURFACE 0604

Dimensions
  • 0.69" W X 0.41" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 190 - 725 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

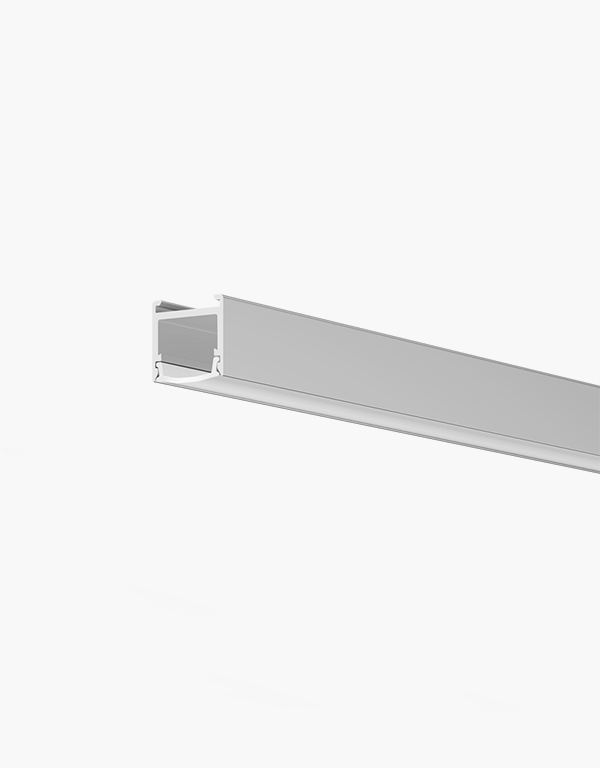

SURFACE 0606

Dimensions
  • 0.69" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 170 - 625 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

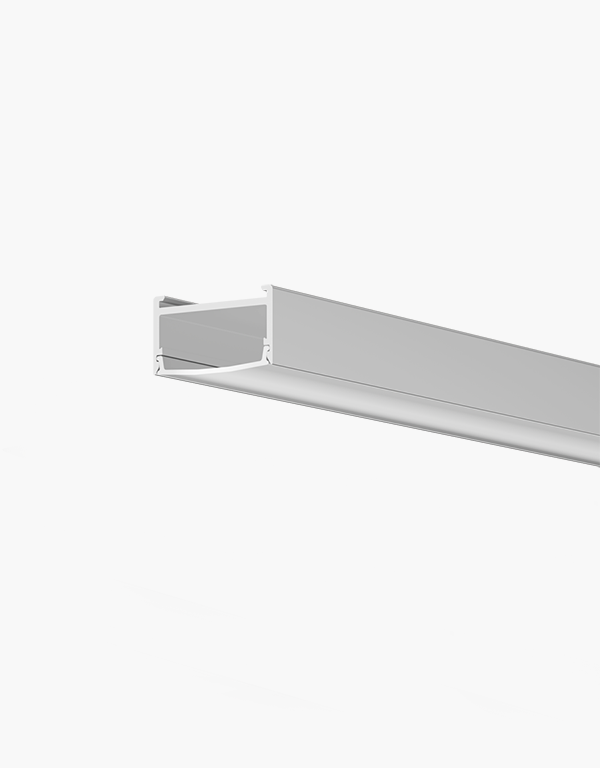

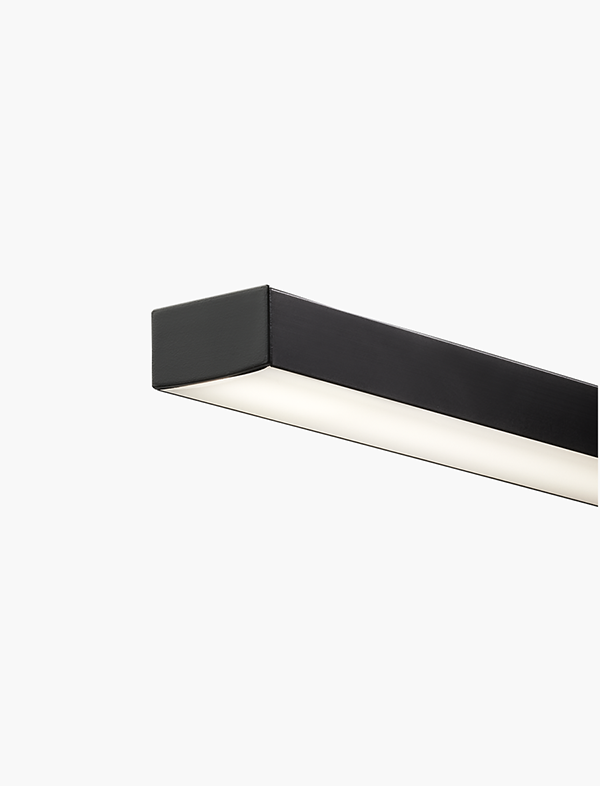

SURFACE 1206

Dimensions
  • 1.18" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 170 - 735 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

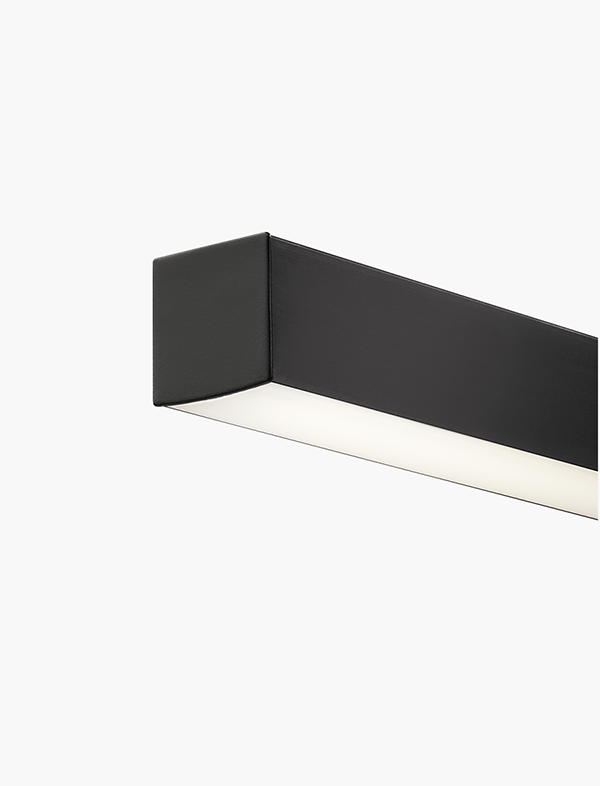

SURFACE 1212

Dimensions
  • 1.18" W X 1.19" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 145 - 630 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

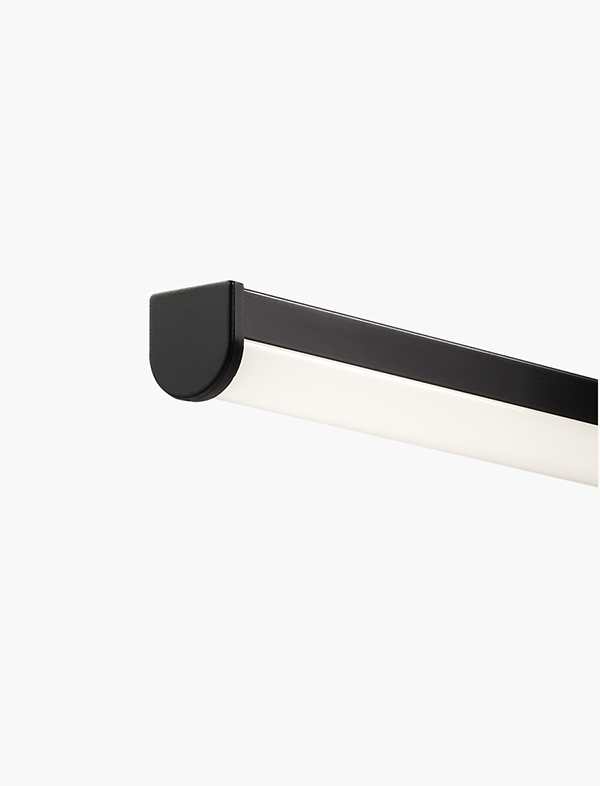

SURFACE 0808 ROUND

Dimensions
  • 0.77" W X 0.81" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 170 - 675 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 0808 SQUARE

Dimensions
  • 0.77" W X 0.81" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 170 - 675 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

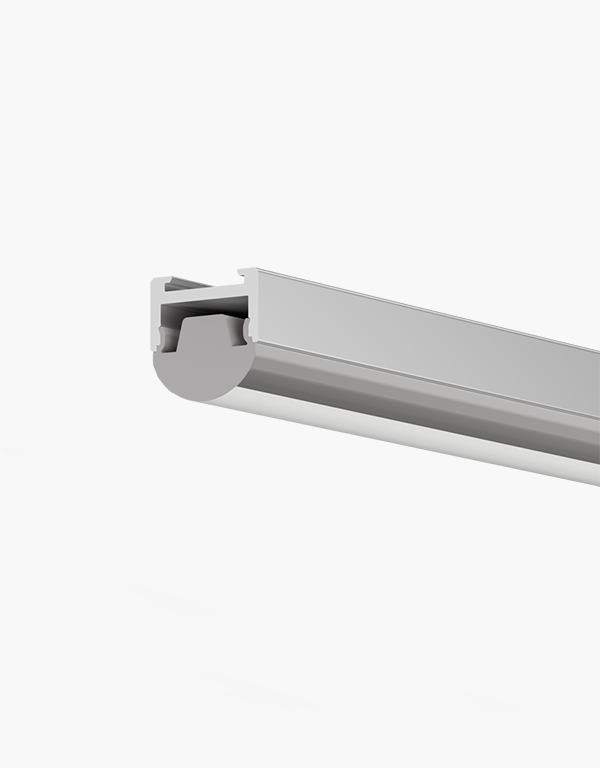

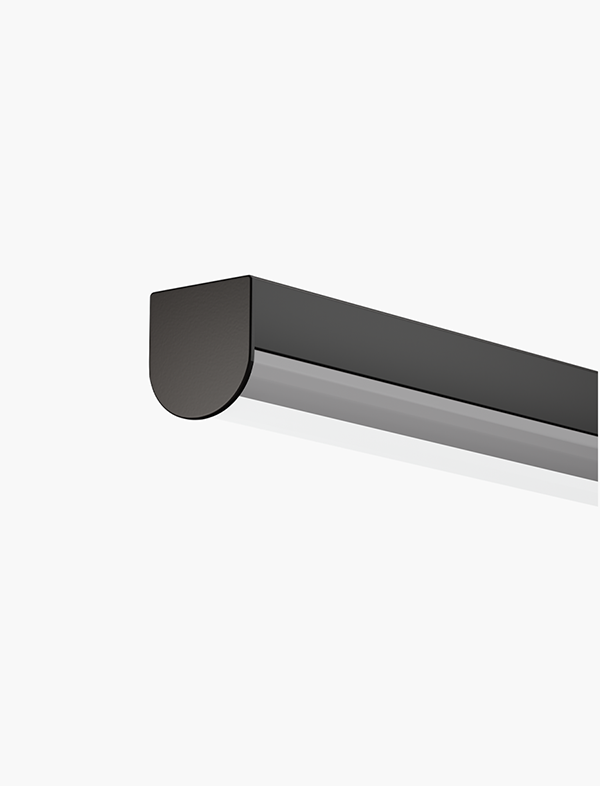

SURFACE 0809 GRAZER

Dimensions
  • 0.84" W X 0.85" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 65 - 245 lm/ft
  • Center Beam Candlepower 515-2270 cd
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

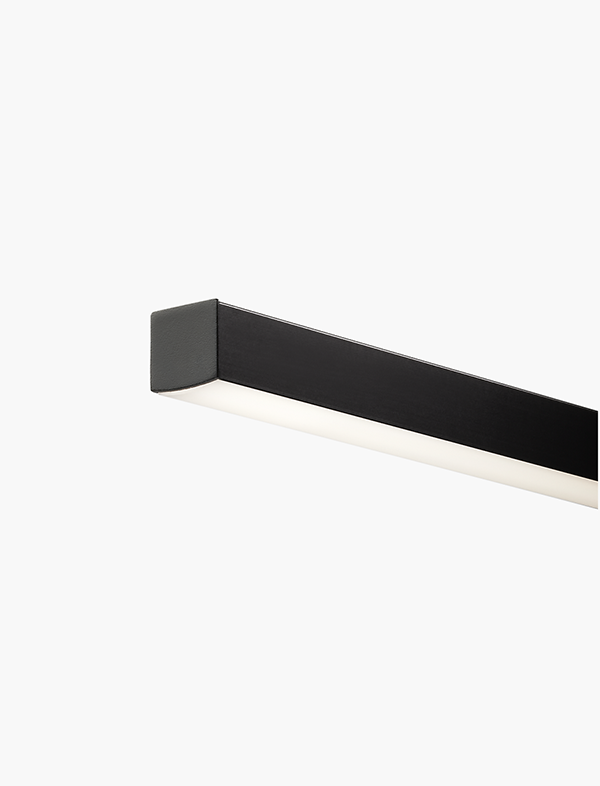

SURFACE 0606
WALL WASH

Dimensions
  • 0.69" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 155 - 585 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 45 DEGREE ROUND

Dimensions
  • 0.73" W X 0.73" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 185 - 715 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 45 DEGREE

Dimensions
  • 0.95" W X 0.94" H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 170 - 625 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 0606 WET IP65

Dimensions
  • 0.69” W x 0.66”H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 232-377 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Wet, T24

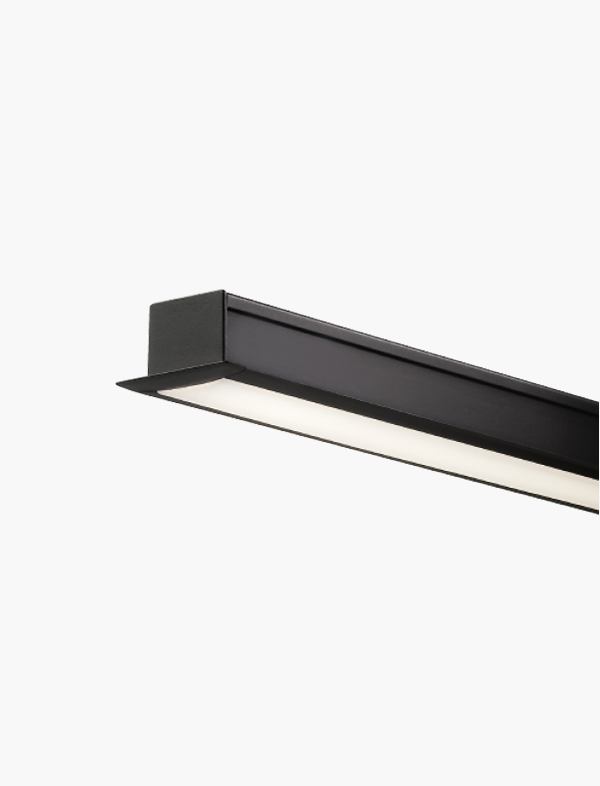

RECESSED FLANGED 0606 WET IP65

Dimensions
  • 1.0” W x 0.66”H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 232-377 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Wet, T24

SURFACE 0606 WET IP65

Dimensions
  • 0.69” W x 0.66”H
  • Black
  • Satin Aluminum
  • White
  • Delivered Lumens: 232-377 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Wet, T24

ESSENCE LED Channels

ESSENCE now offers an option to order channel/lens, end caps, joiners and LED strips individually. Channel, lens, and LED strip can be field-cut to the exact dimension for maximum flexibility.

SURFACE 45 DEGREE ROUND CHANNEL

Dimensions
  • 0.73" W X 0.73" H
  • Black
  • Satin Aluminum
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

RECESSED FLANGED 0809 GRAZER CHANNEL

Dimensions
  • 1.2" W X 0.85" H
  • 0.84" W Lens
  • Black
  • Satin Aluminum
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

RECESSED FLANGELESS MUD-IN 0605 CHANNEL

Dimensions
  • 2.2" W X 0.5" H
  • 0.6" W Lens
  • Satin Aluminum (Not Visible)
  • Ratings/Certification: Damp/Dry, T24, Closet

RECESSED FLANGELESS MUD-IN 1205 CHANNEL

Dimensions
  • 2.7” W x 0.4” H
  • 1.1" W Lens
  • Satin Aluminum (Not Visible)
  • Ratings/Certification: Damp/Dry, T24, Closet

RECESSED FLANGELESS MUD-IN
WALL WASH CHANNEL

Dimensions
  • 3.6” W x 0.5”H
  • 1.1" W Aperture
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

RECESSED FLANGELESS MUD-IN
COVE/TOE-KICK CHANNEL

Dimensions
  • 3.2" W X 0.5" H
  • 1.2" W Aperture
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 0604 CHANNEL

Dimensions
  • 0.69" W X 0.41" H
  • Black
  • Satin Aluminum
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 0606 CHANNEL

Dimensions
  • 0.69" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 1206 CHANNEL

Dimensions
  • 1.18" W X 0.66" H
  • Black
  • Satin Aluminum
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 1212 CHANNEL

Dimensions
  • 1.18” W x 1.19” H
  • Black
  • Satin Aluminum
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

SURFACE 0809 GRAZER CHANNEL

Dimensions
  • .84” W x .85 ”H
  • White
  • Ratings/Certification: Damp/Dry, T24, Closet

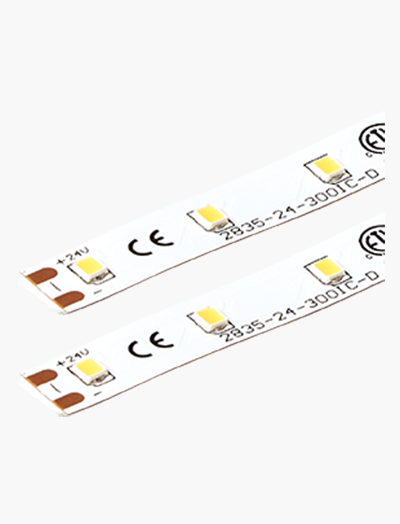

ESSENCE LED Strip Lights

LED strip is an incredibly versatile and long-lasting product that can be used in a wide range of applications where space may be limited such as under cabinets, cove ceilings, toe kicks,
in cabinets, or even in drawers. Its low profile design and flexibility allow for discrete installation.

LED STRIP PREMIUM INDOOR STATIC WHITE

Dimensions
  • 0.47" W X 0.1" H
  • Delivered Lumens: 200 - 800 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

LED STRIP PREMIUM INDOOR WARM DIM

Dimensions
  • 0.47" W X 0.1" H
  • Delivered Lumens: 350 - 500 lm/ft
  • CRI: 97+, 95+
  • Binning: 1-Step, 2-Step
  • Ratings/Certification: Damp/Dry, T24, Closet

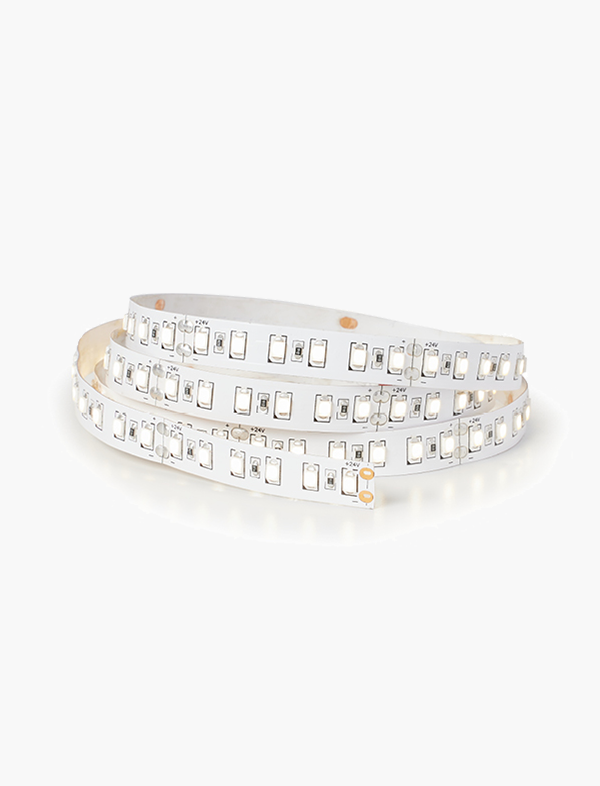

LED STRIP STANDARD INDOOR STATIC WHITE

Dimensions
  • 0.39”W x 0.04”H
  • Delivered Lumens: 185-470 lm/ft
  • CRI: 90+
  • Binning: 3-Step
  • Ratings/Certification: Damp/Dry, T24

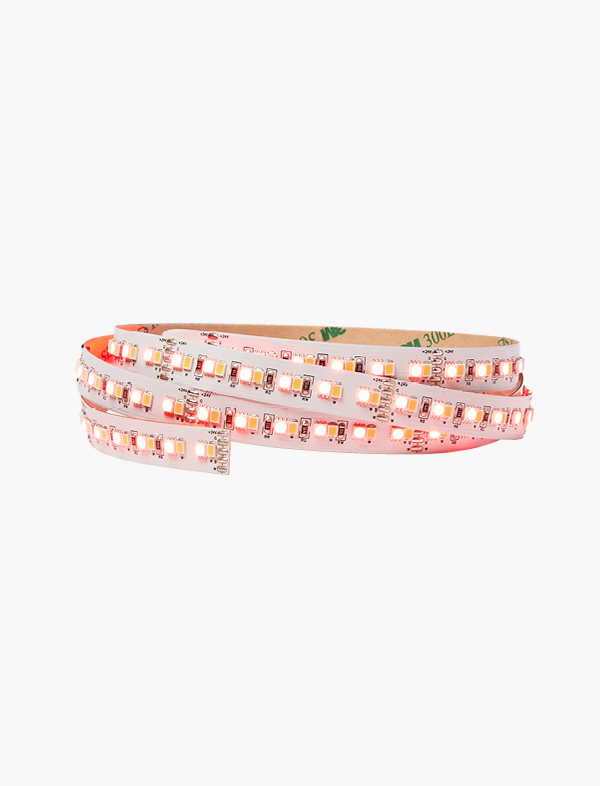

LED STRIP INDOOR RGBW

Dimensions
  • 0.5”W x 0.08”H
  • Delivered Lumens: 530 lm/ft
  • CRI: 95+ for White 3000K
  • Binning: 2-step for White 3000K
  • Ratings/Certification: Damp/Dry, T24

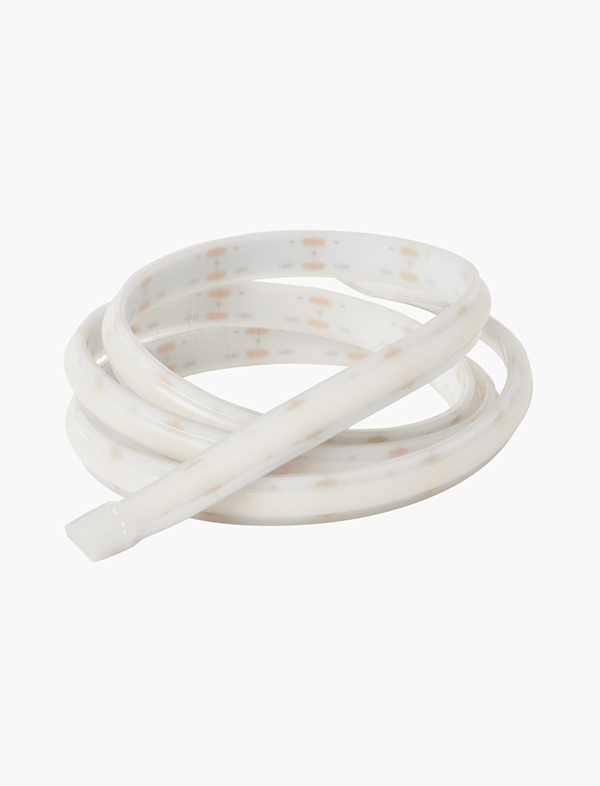

LED STRIP PREMIUM UNILUME INDOOR/OUTDOOR WET IP67 STATIC WHITE

Dimensions
  • 0.5" W X 0.2" H
  • Delivered Lumens: 350 - 800 lm/ft
  • CRI: 90+
  • Binning: 1-Step
  • Ratings/Certification: Wet, T24, Closet

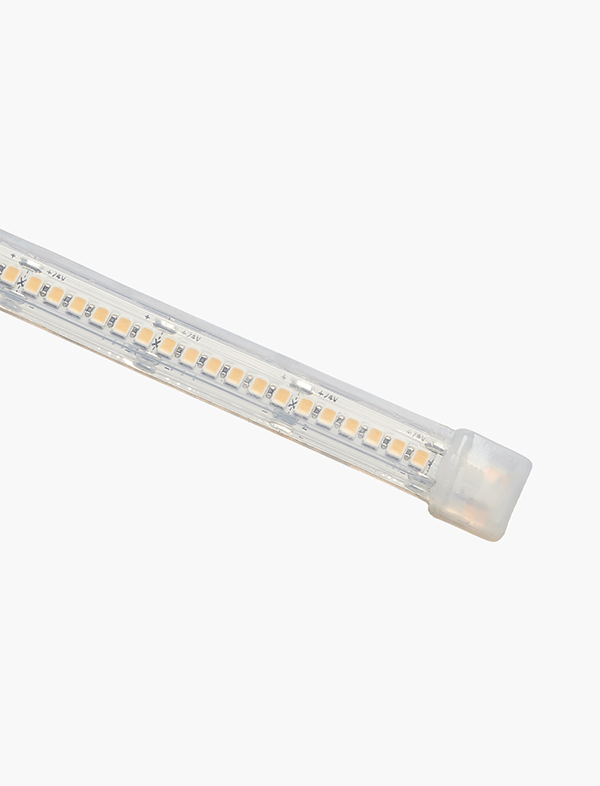

LED STRIP PREMIUM INDOOR/OUTDOOR WET IP67 STATIC WHITE

Dimensions
  • 0.6" W X 0.4" H
  • Delivered Lumens: 335 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Wet, T24, Closet

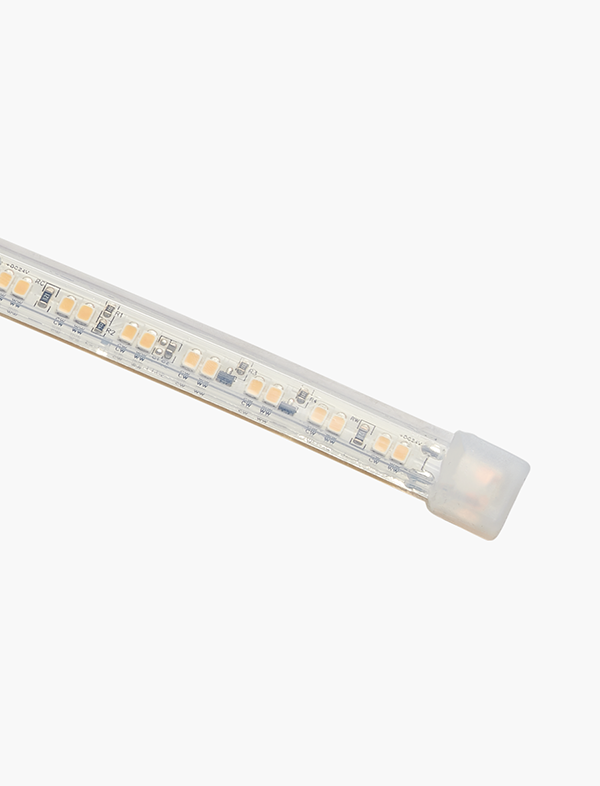

LED STRIP PREMIUM INDOOR/OUTDOOR WET IP67 WARM DIM

Dimensions
  • 0.6" W X 0.4" H
  • Delivered Lumens: 290 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Wet, T24, Closet

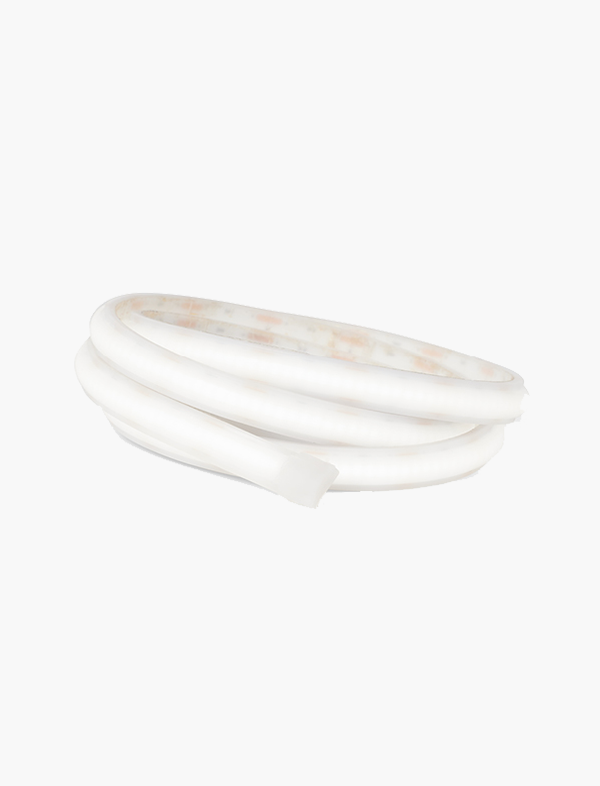

LED STRIP STANDARD UNILUME INDOOR/OUTDOOR WET IP67 STATIC WHITE

Dimensions
  • 0.43”W x 0.2”H
  • Delivered Lumens: 370 lm/ft
  • CRI: 90+
  • Binning: 3-Step
  • Ratings/Certification: Wet, T24

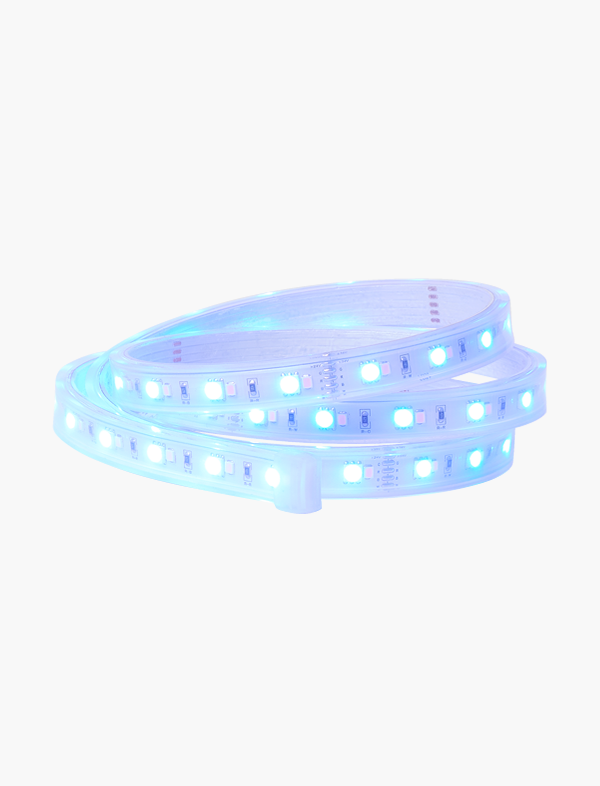

LED STRIP INDOOR/OUTDOOR WET IP67 RGBW

Dimensions
  • 0.5”W x 0.2”H
  • Delivered Lumens: 390 lm/ft
  • CRI: 95+ for White 3000K
  • Binning: 2-Step for White 3000K
  • Ratings/Certification: Wet, T24

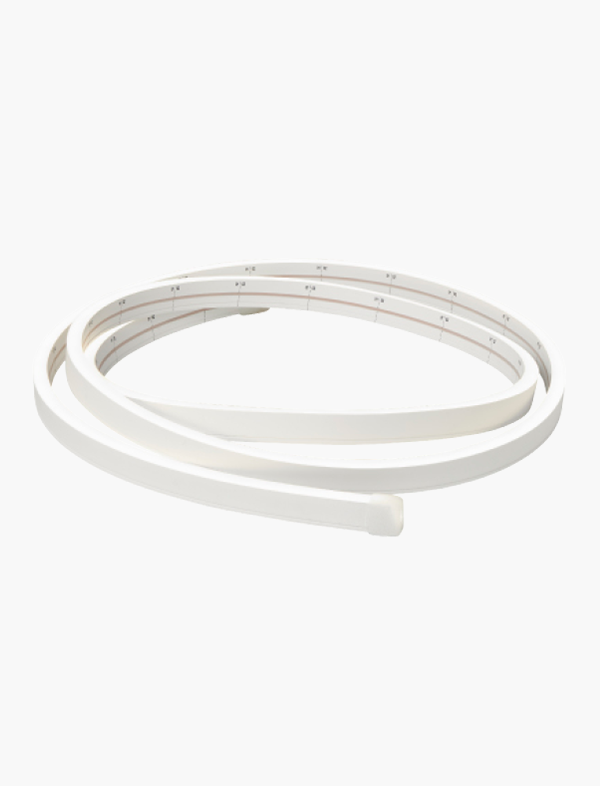

SURFACE SIDE BEND 0408 WET IP67

Dimensions
  • 0.5” W x 0.8”H
  • White
  • Delivered Lumens: 250-290 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Wet, T24

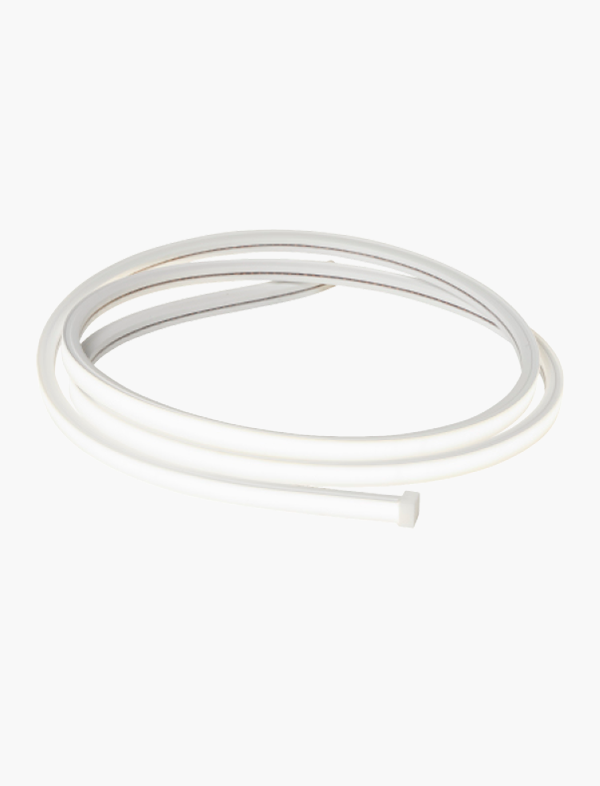

SURFACE TOP BEND 0605 WET IP67

Dimensions
  • 0.68” W x 0.59”H
  • White
  • Delivered Lumens: 232-377 lm/ft
  • CRI: 95+
  • Binning: 2-Step
  • Ratings/Certification: Wet, T24

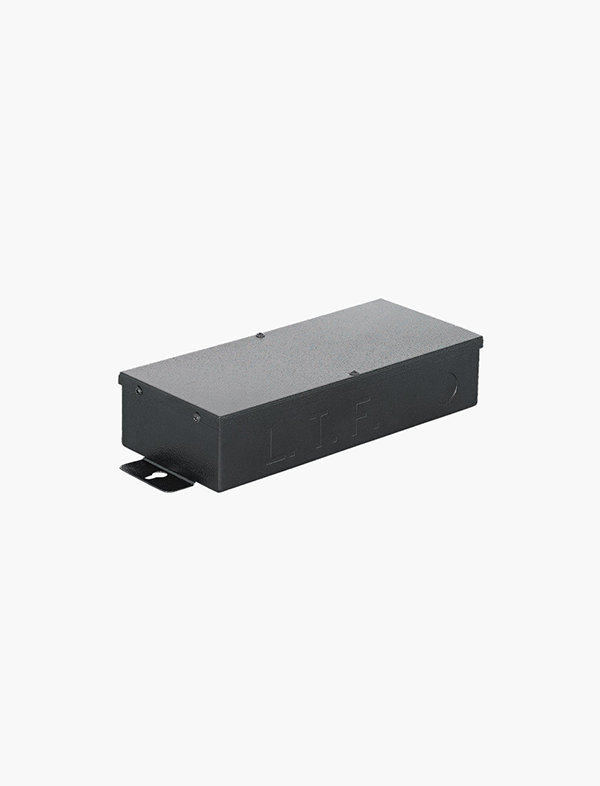

ESSENCE Power Supplies

ESSENCE power supplies convert 120V or 277V line voltage power to 24VDC and are required for ESSENCE LED fixtures and strip lights.

 SPEC SHEET
INSTRUCTIONS

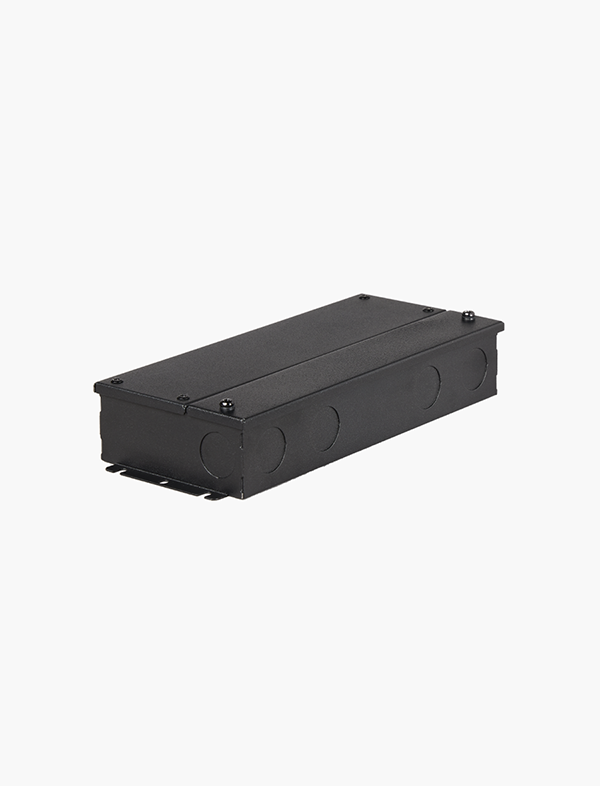

ESSENCE POWER SUPPLY

UNIVERSAL DIMMING REMOTE

24VDC WET IP66

 SPEC SHEET
INSTRUCTIONS

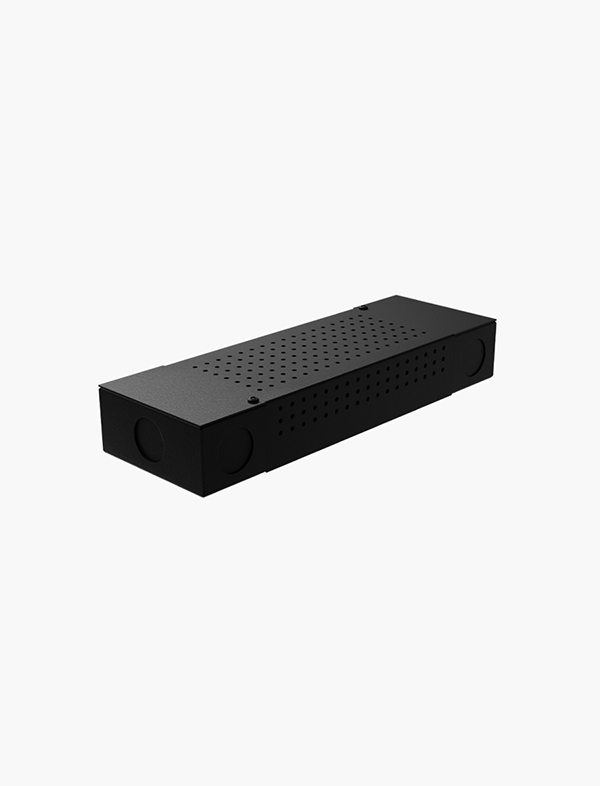

ESSENCE POWER SUPPLY

PHASE DIMMING REMOTE 24VDC

 SPEC SHEET
INSTRUCTIONS

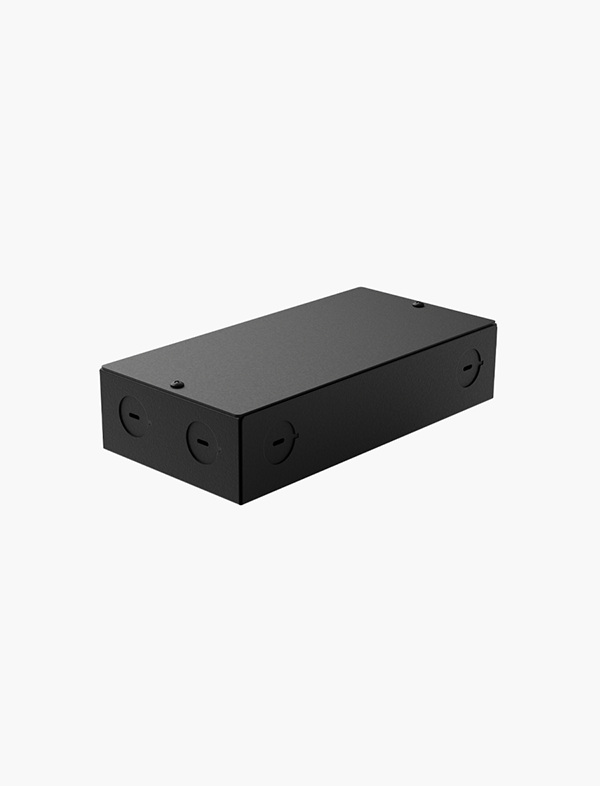

ESSENCE POWER SUPPLY

0-10V REMOTE 24VDC 5%

 SPEC SHEET
INSTRUCTIONS

ESSENCE POWER SUPPLY ELDOLED

LINEARDRIVE 0-10V
REMOTE
24VDC 0.1%

 SPEC SHEET
INSTRUCTIONS

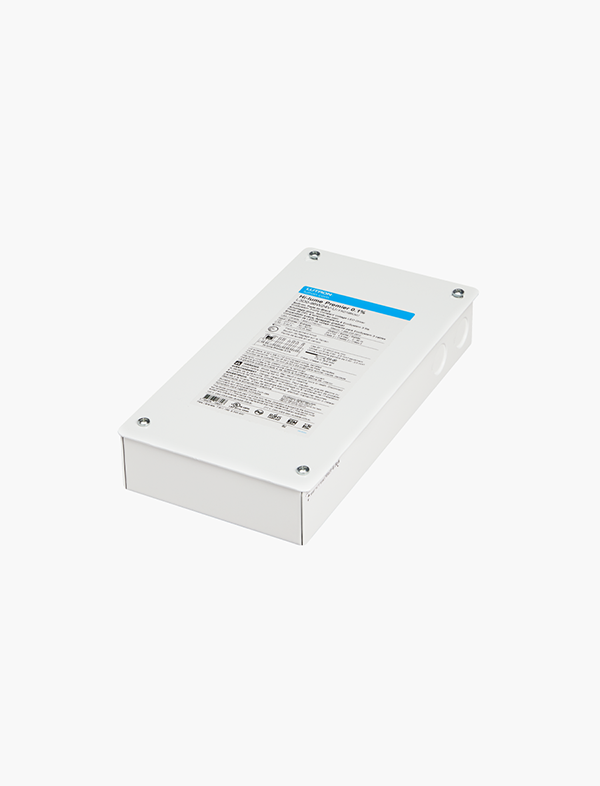

ESSENCE LUTRON HI-LUME

ECOSYSTEM/3-WIRE 0.1%

 SPEC SHEET
INSTRUCTIONS

ESSENCE POWER SUPPLY
NON-DIMMING REMOTE 24VDC

 SPEC SHEET
INSTRUCTIONS

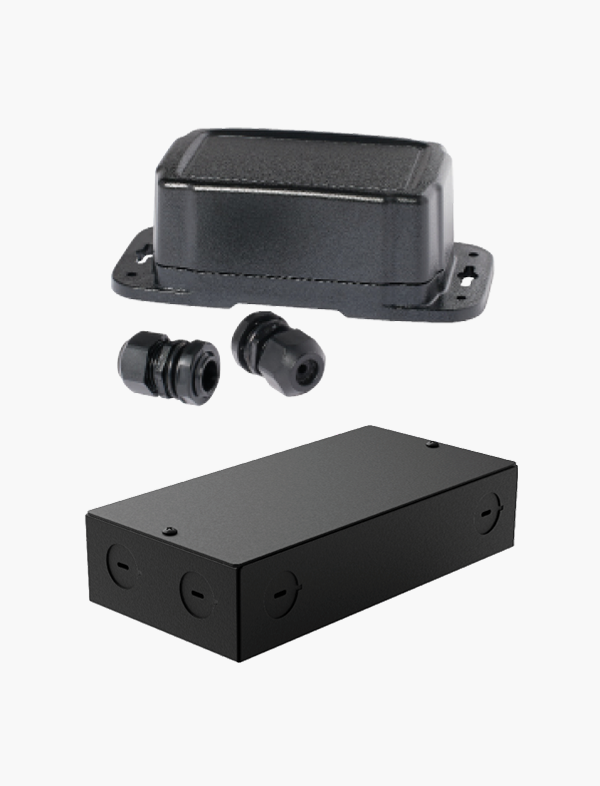

POWER SUPPLY AND CONTROLLER KIT WiZ RGBW REMOTE 24VDC

 SPEC SHEET
INSTRUCTIONS

ESSENCE LUTRON HI-LUME

ECOSYSTEM/3-WIRE 0.1%


ESSENCE Accessories

Components to supplement your lighting installation

 SPEC SHEET
INSTRUCTIONS

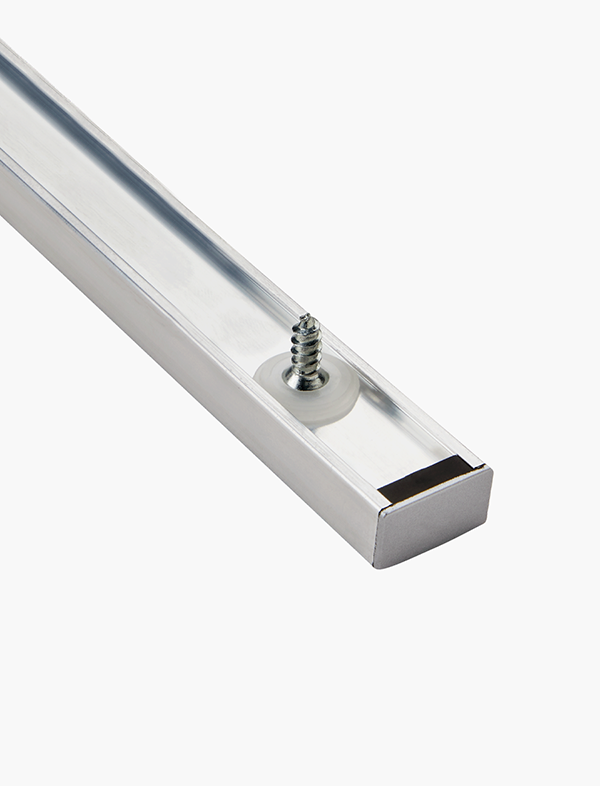

ESSENCE CHANNEL MOUNTING
CLIP SURFACE FIXED

 SPEC SHEET
INSTRUCTIONS

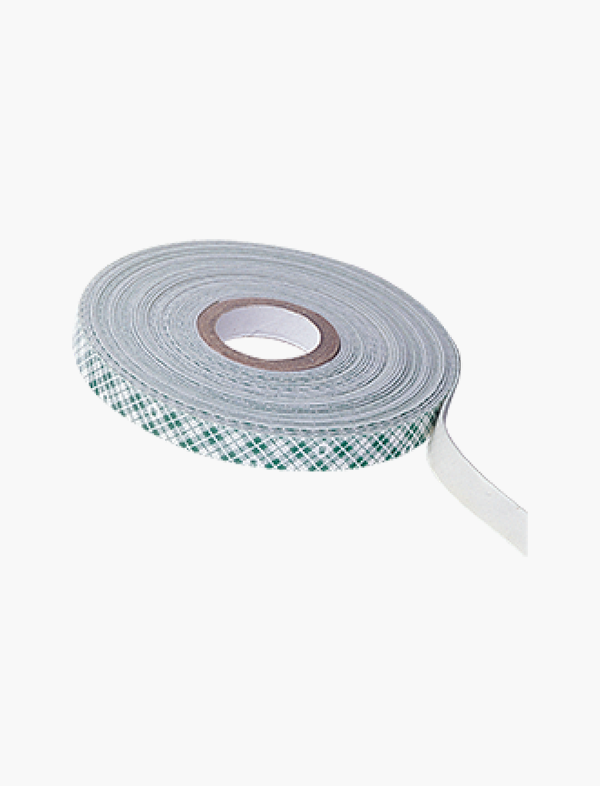

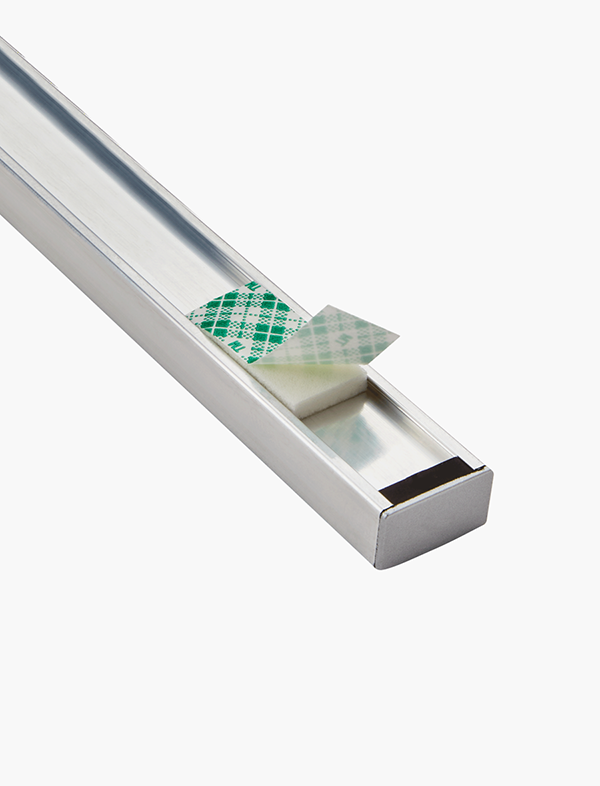

ESSENCE CHANNEL MOUNTING

DOUBLE SIDED TAPED

 SPEC SHEET
INSTRUCTIONS

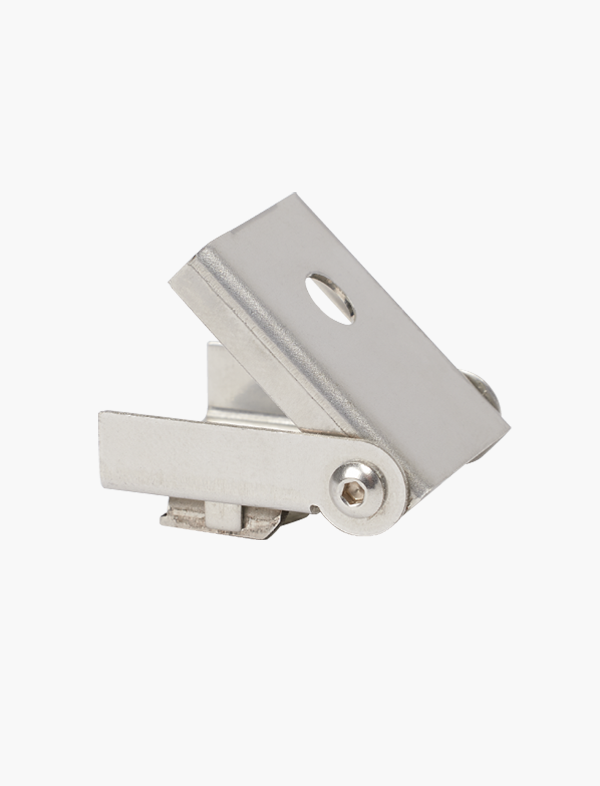

ESSENCE CHANNEL MOUNTING CLIP

90-DEGREE ADJUSTABLE

 SPEC SHEET
INSTRUCTIONS

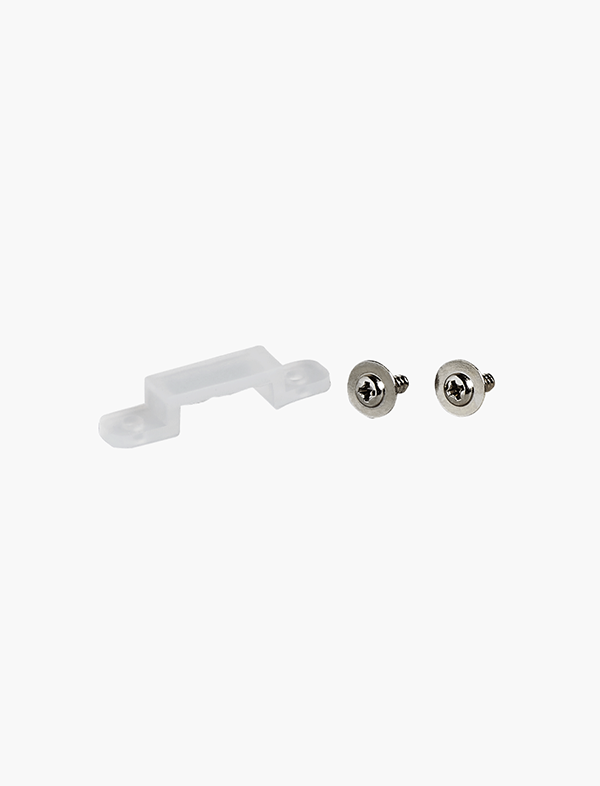

ESSENCE LED STRIP MOUNTING

STRAP WET IP67

 SPEC SHEET
INSTRUCTIONS

ESSENCE LED STRIP

SILICONE GLUE

 SPEC SHEET
INSTRUCTIONS

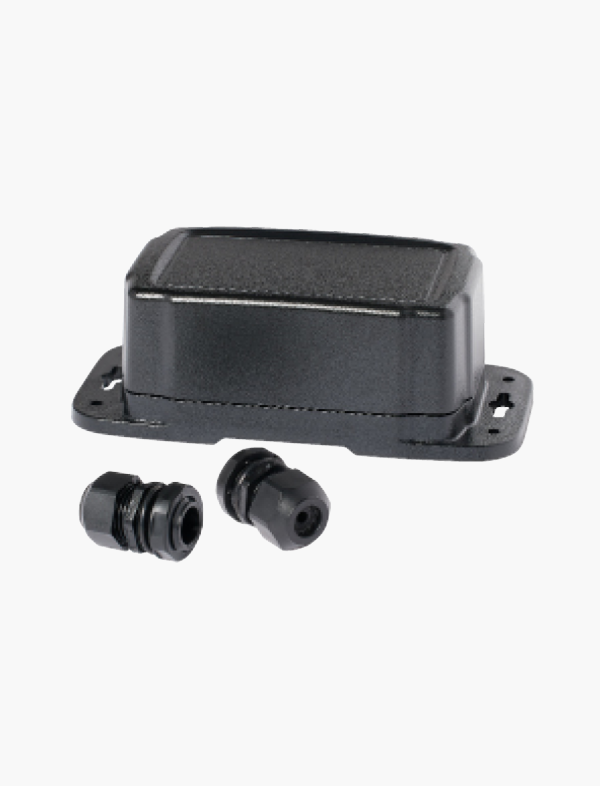

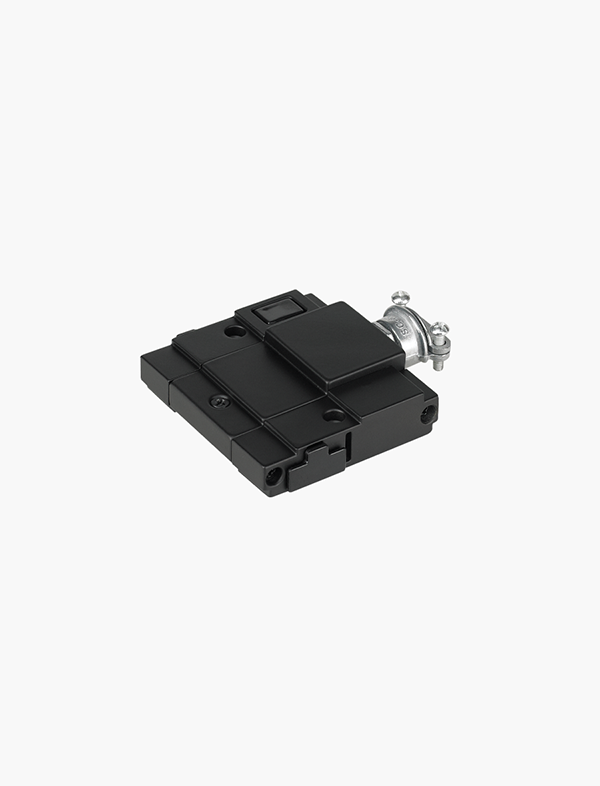

ESSENCE LED STRIP SPLICE BOX

 SPEC SHEET
INSTRUCTIONS

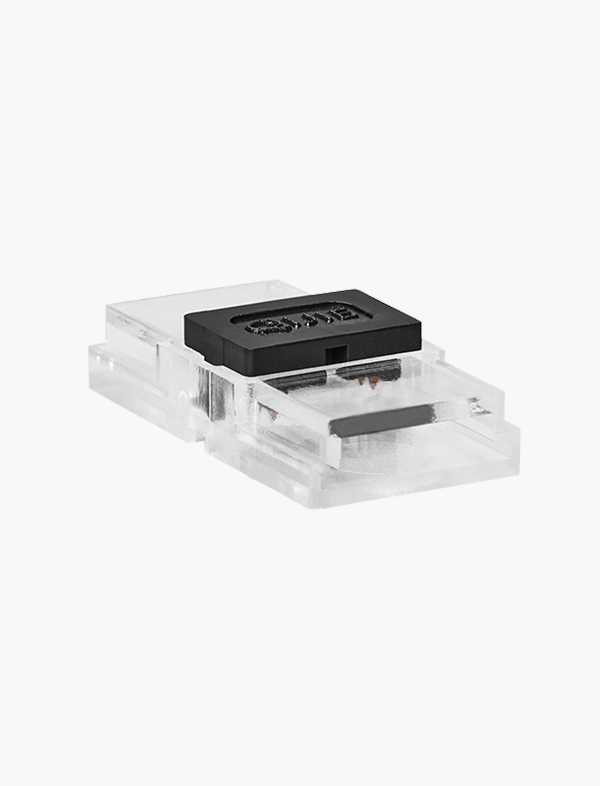

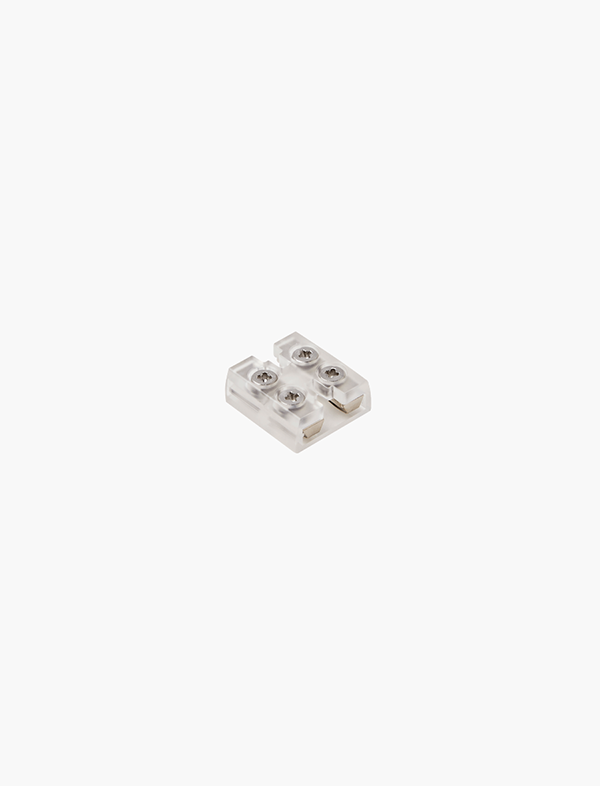

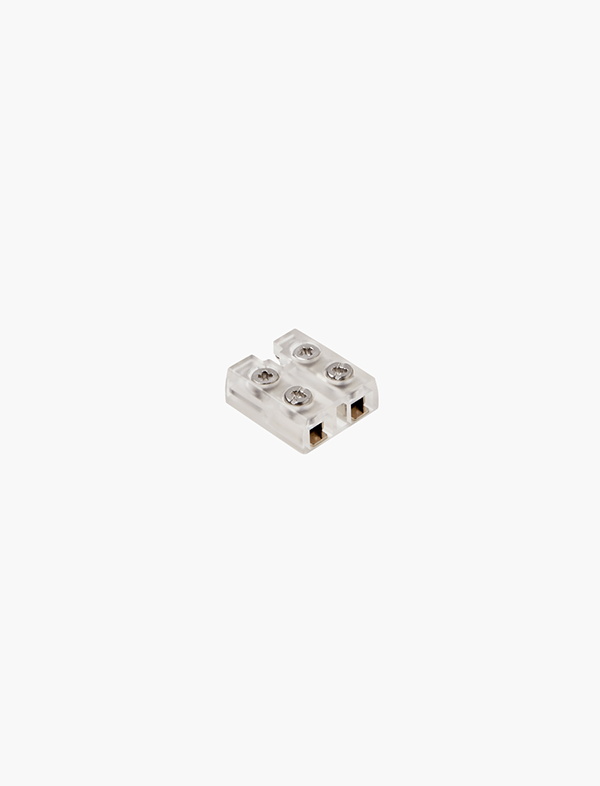

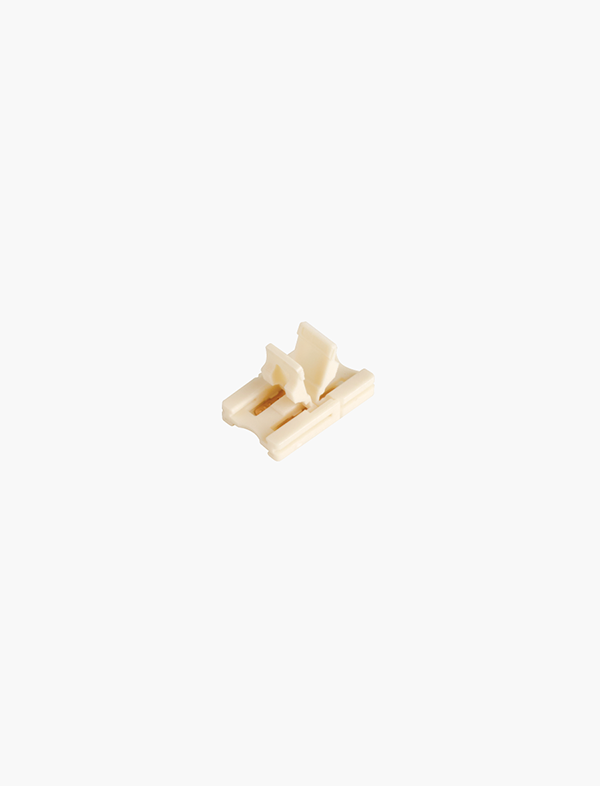

ESSENCE LED STRIP TO

STRIP CONNECTOR

 SPEC SHEET
INSTRUCTIONS

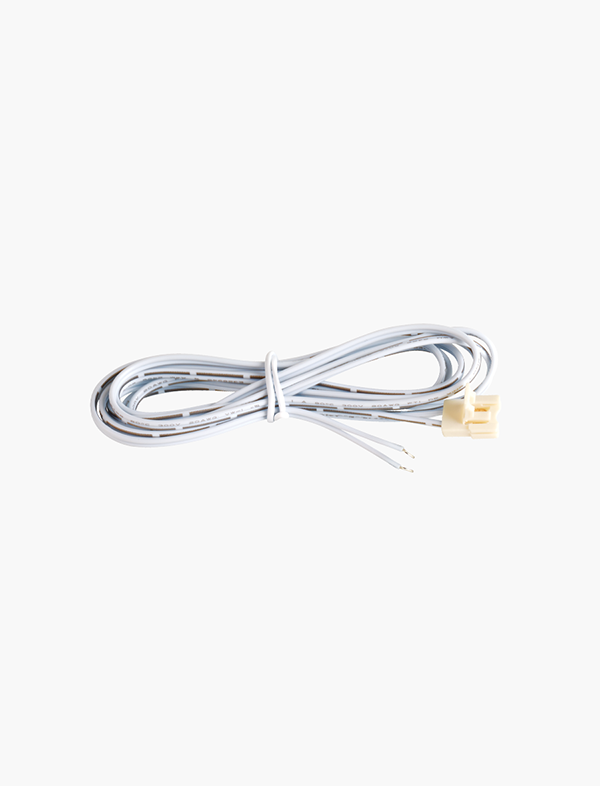

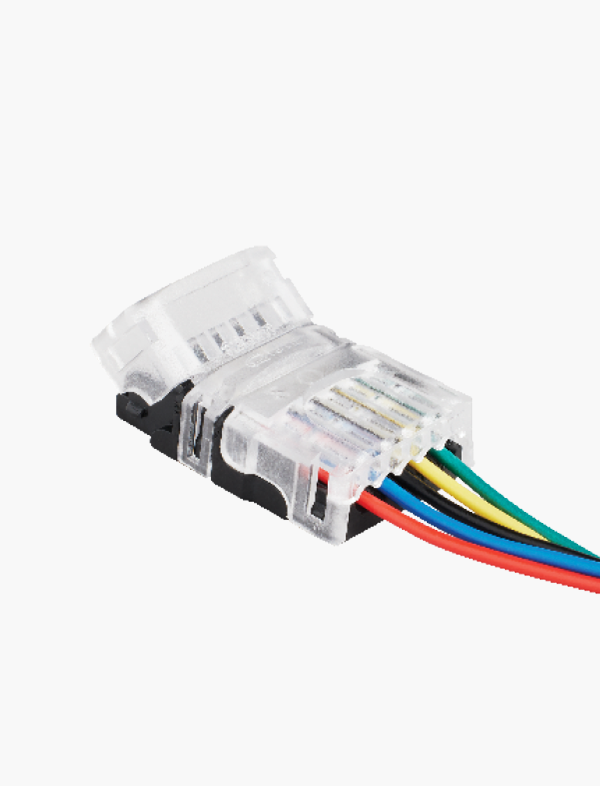

ESSENCE LED STRIP TO

WIRE CONNECTOR

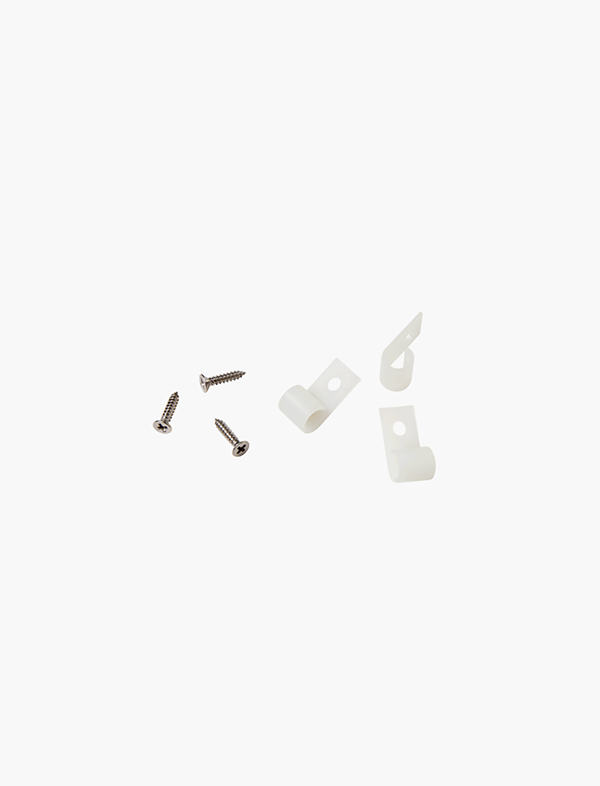

ESSENCE LED STRIP WIRE

MANAGEMENT CLIP J TYPE

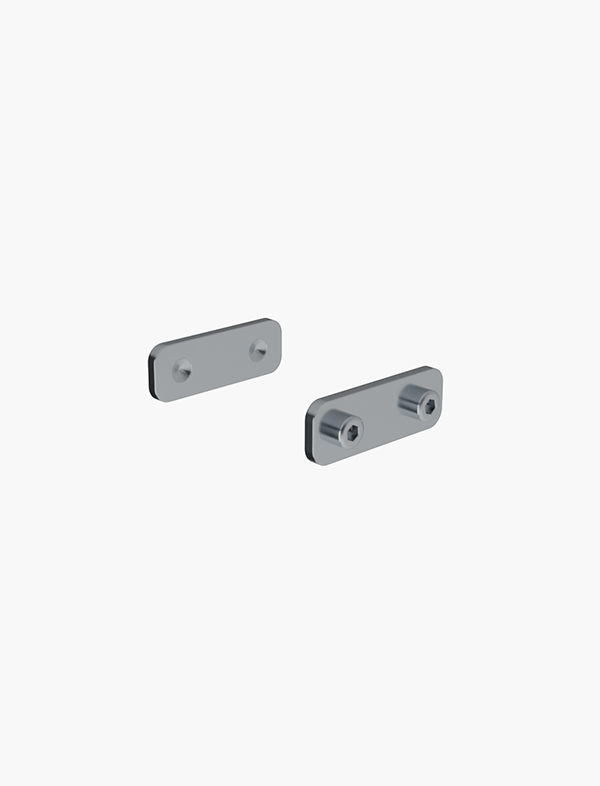

ESSENCE RECESSED FLANGELESS

MUD-IN CHANNEL JOINER

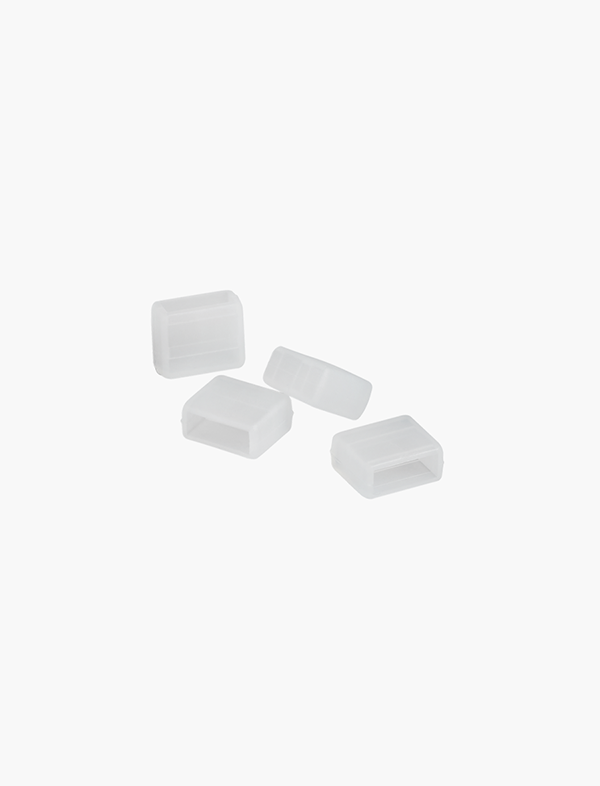

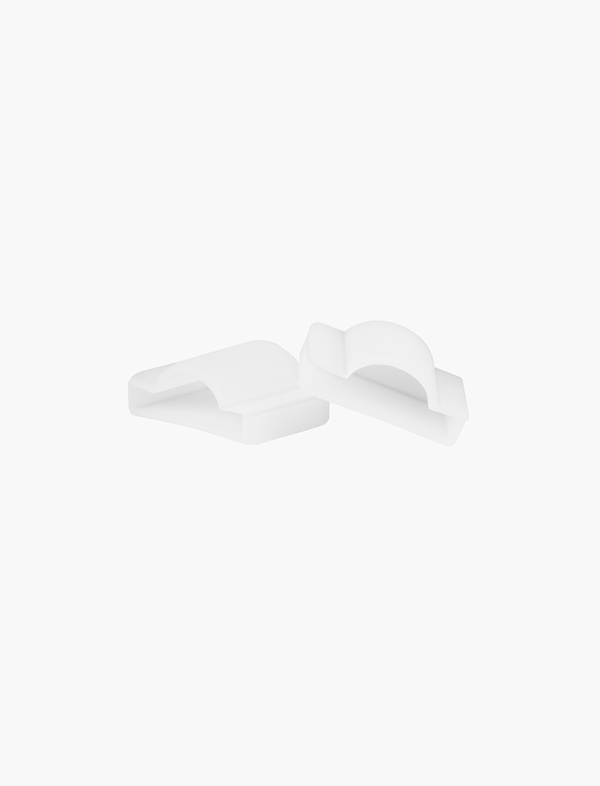

UNILUME LED STRIP 05

END CAP WET IP67

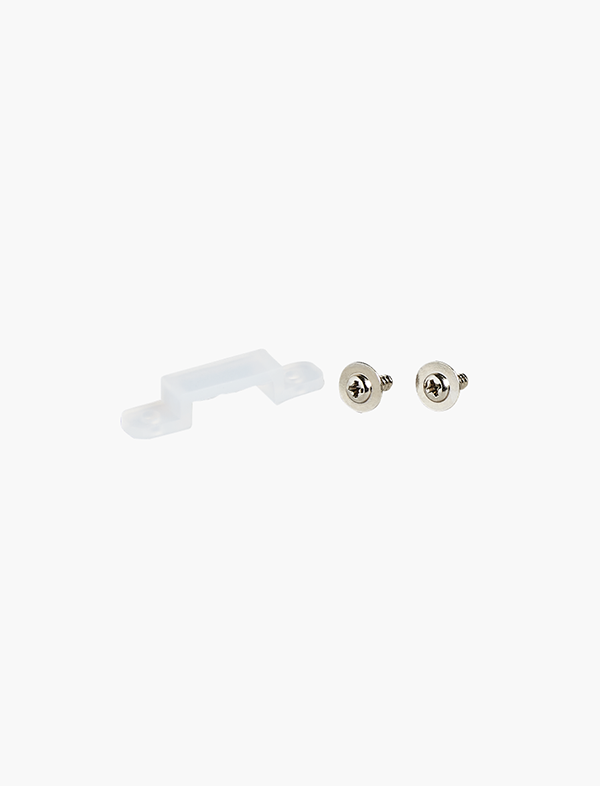

UNILUME LED STRIP 05

MOUNTING STRAP WET IP67

LED STRIP TO STRIP CONNECTOR STANDARD SERIES

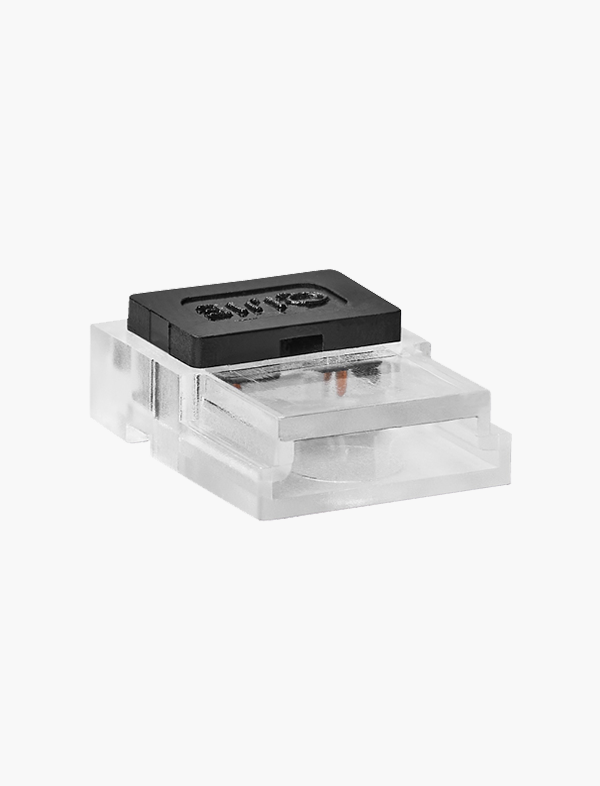

LED STRIP TO WIRE CONNECTOR STANDARD SERIES

UNILUME STANDARD SERIES STATIC LED STRIP 04 END CAP WET IP67

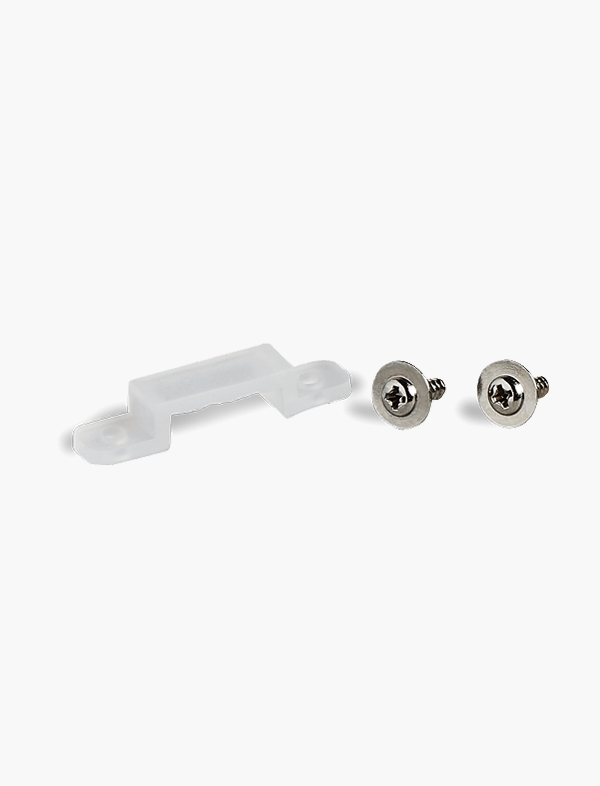

UNILUME STANDARD SERIES STATIC LED STRIP 04 MOUNTING STRAP WET IP67

ESSENCE LED STRIP END CAP WET

STRIP TO WIRE CONNECTOR RGBW

STRIP TO STRIP CONNECTOR RGBW

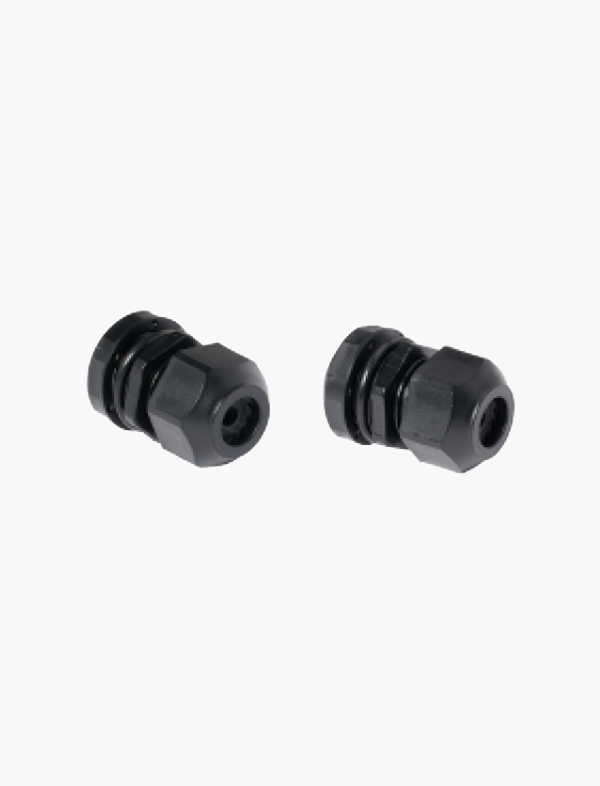

CABLE GLANDS WET IP67

SPLICE BOX WET IP67

CABLE GLANDS WET IP67


Jane LED Tape System

LED tape is an incredibly versatile and long-lasting product that can be used in a wide range of applications where space may be limited such as under cabinets, cove ceilings, toe kicks, in cabinets, or even in drawers. Its low profile design and flexibility allow for discrete installation.

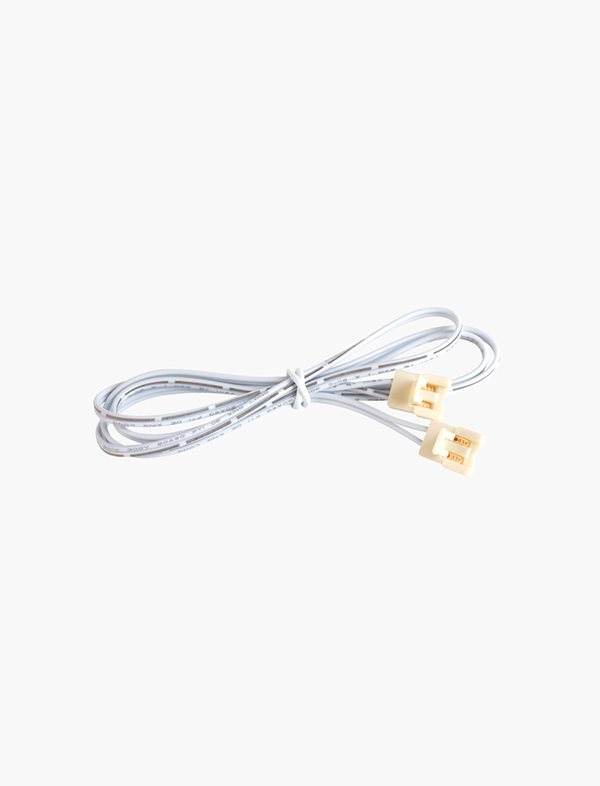

JANE 200 LED TAPE CONNECTOR CORDS

JANE 200 LED TAPE
POWER CORDS

JANE 200 LED TAPE JOINER CONNECTOR

 SPEC SHEET
INSTRUCTIONS

JANE LED TAPE LED

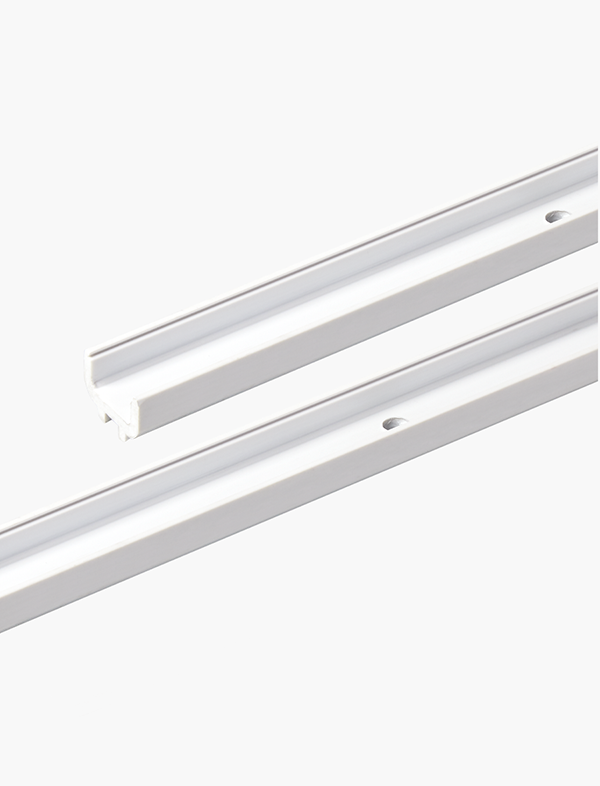

EXTRUDED CHANNEL

 SPEC SHEET
INSTRUCTIONS

JANE 200 LED TAPE EXTRUDED CHANNEL FLAT LENS

 SPEC SHEET
INSTRUCTIONS

JANE 200 LED TAPE
DOUBLE FACED TAPE

 SPEC SHEET
INSTRUCTIONS

JANE 200 LED TAPE CHANEL SCREWS

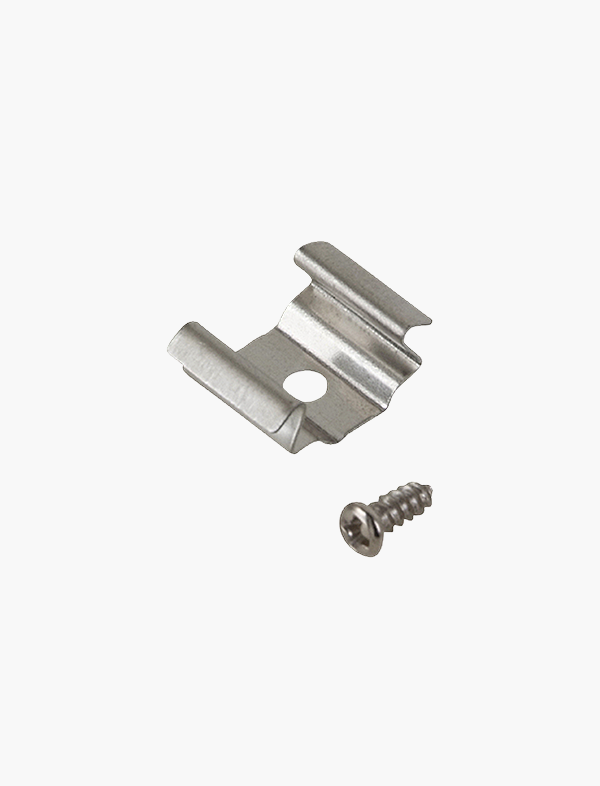

JANE 200 LED TAPE CLIPS

 SPEC SHEET
INSTRUCTIONS

JANE 200 LED TAPE
ELECTRONIC TRANSFORMER

 SPEC SHEET
INSTRUCTIONS

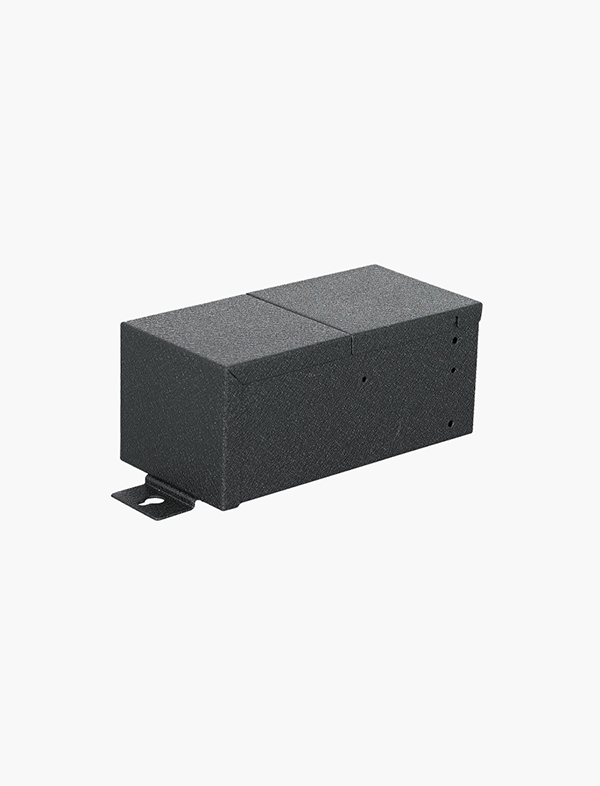

JANE 200 LED TAPE
MAGNETIC TRANSFORMER


UniLume

Using high quality LED technology, these fixtures achieve great light output and a high level of energy efficiency at an extremely affordable price point. With local on/off switches and the ability to be dimmed down to 10% these fixtures work well for different activities or times of day.

SPEC SHEET
INSTRUCTIONS

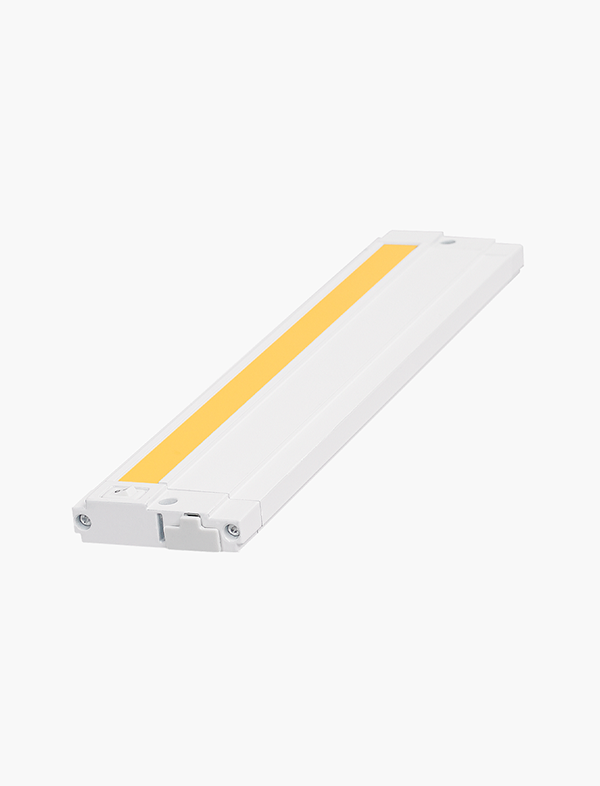

UNILUME LED SLIMELINE

Size

  • 7”
  • 13”
  • 19”
  • 31”
SPEC SHEET
INSTRUCTIONS

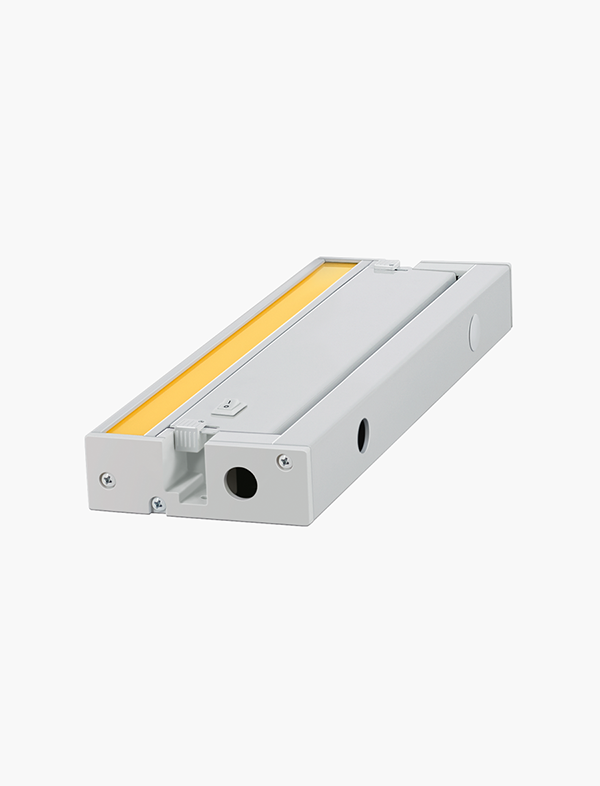

UNILUME LED DIRECT WIRE

Size

  • 7”
  • 13”
  • 19”
  • 30”
 SPEC SHEET
INSTRUCTIONS

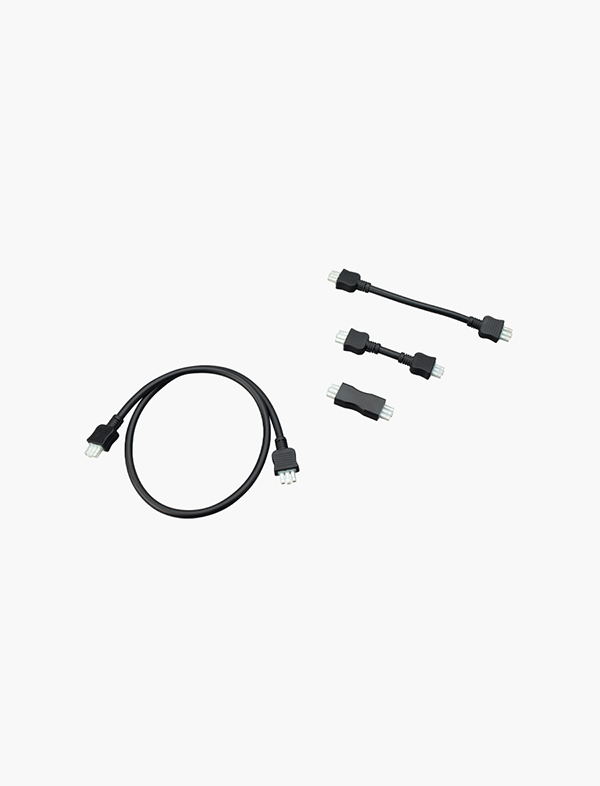

UNILUME LED SLIMLINE

JUMPER CONNECTORS

 SPEC SHEET
INSTRUCTIONS

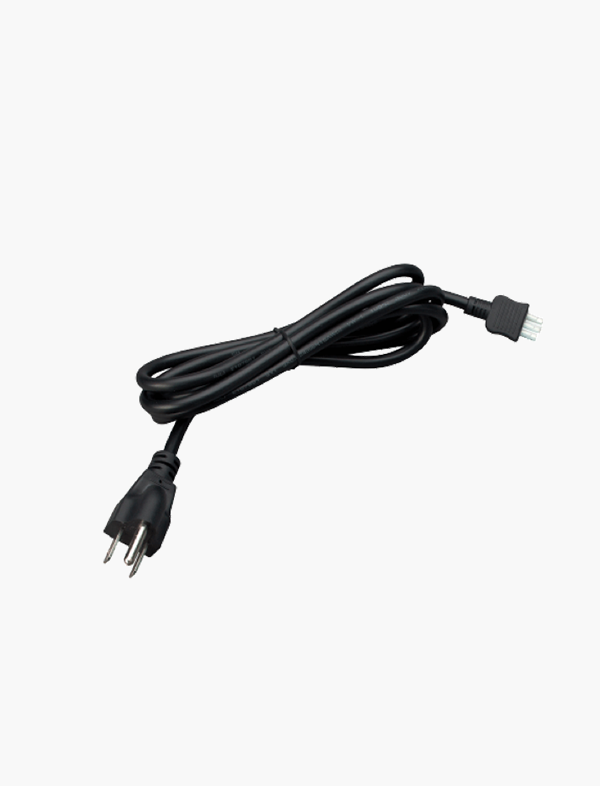

UNILUME LED SLIMLINE

PLUG-IN WALL FEED

 SPEC SHEET
INSTRUCTIONS

UNILUME LED SLIMLINE

SPLICE BOX

 SPEC SHEET
INSTRUCTIONS

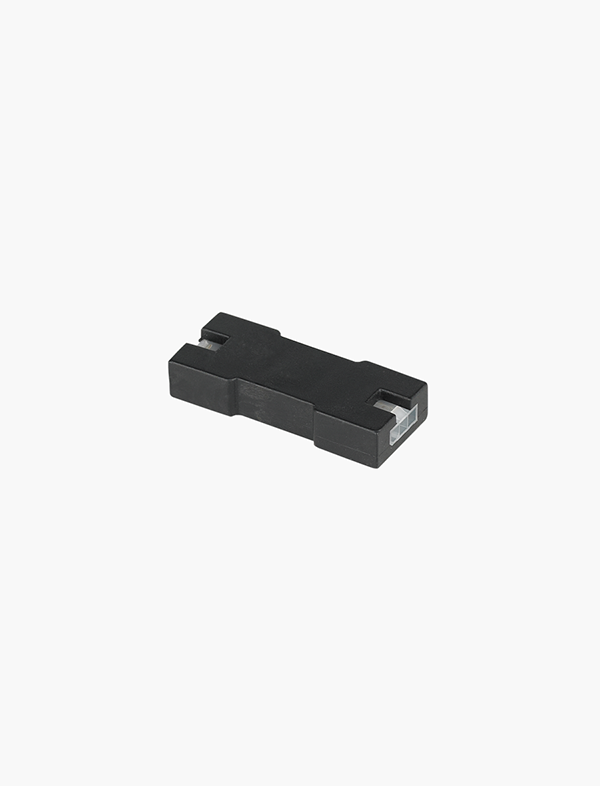

UNILUME SLIMLINE FEMALE

TO FEMALE CONNECTOR


Glyde

Using high quality LED technology, these fixtures achieve great light output and a high level of energy efficiency at an extremely affordable price point. With local on/off switches and the ability to be dimmed down to 10% these fixtures work well for different activities or times of day.

SPEC SHEET
INSTRUCTIONS

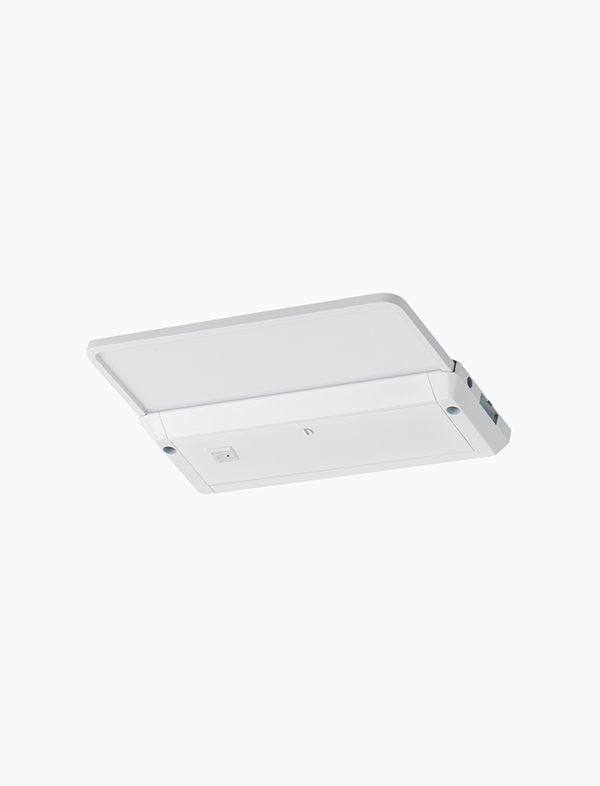

GLYDE 120V

Size
  • 7.5”
  • 12”
  • 18”
  • 24”
  • 30”
 SPEC SHEET
INSTRUCTIONS

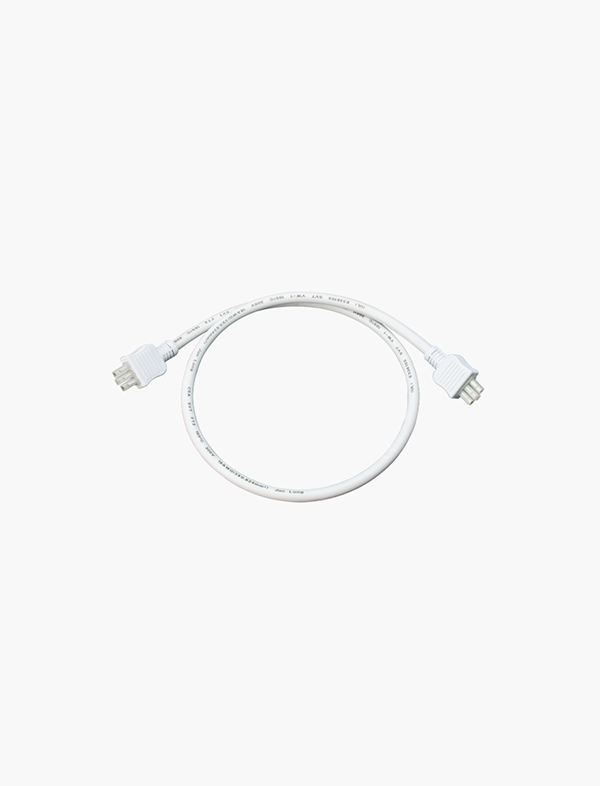

GLYDE
CONNECTOR CORDS

 SPEC SHEET
INSTRUCTIONS

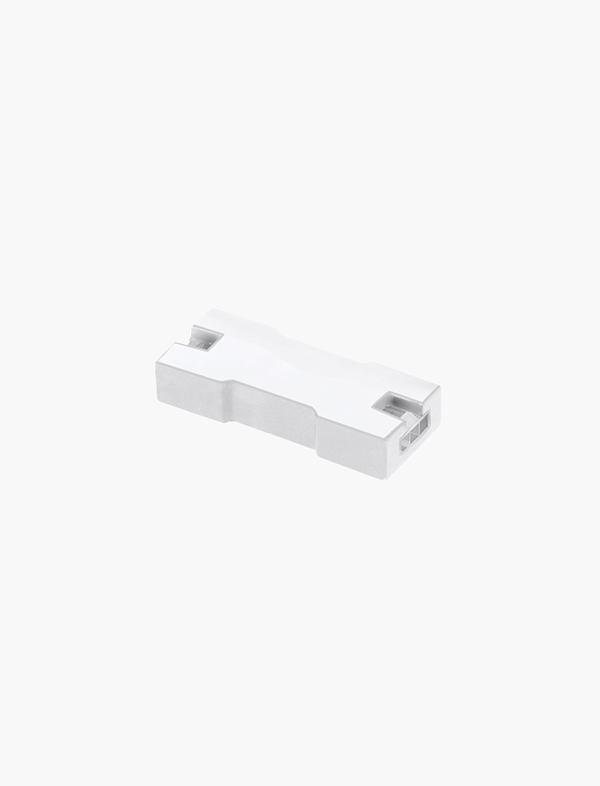

GLYDE OR VIVID I
FEMALE TO FEMALE
CONNECTOR

 SPEC SHEET
INSTRUCTIONS

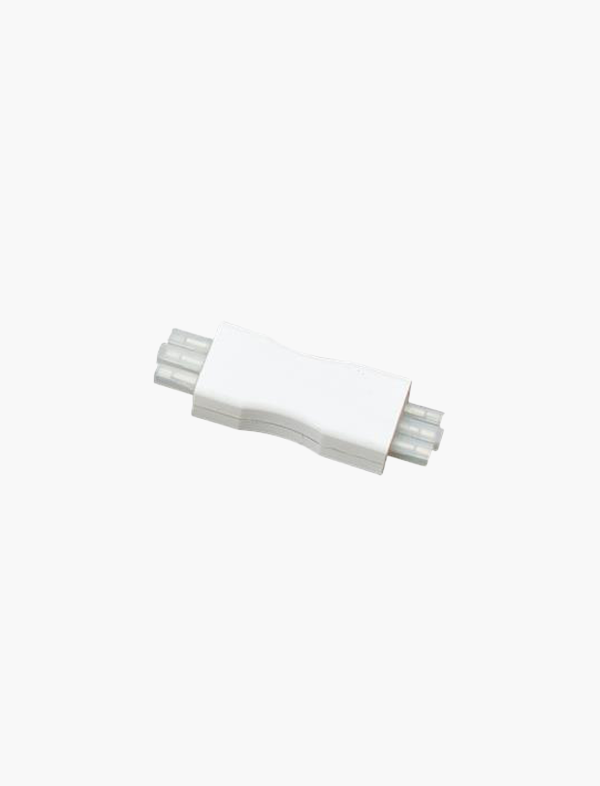

GLYDE OR VIVID I MALE TO MALE CONNECTOR

 SPEC SHEET
INSTRUCTIONS

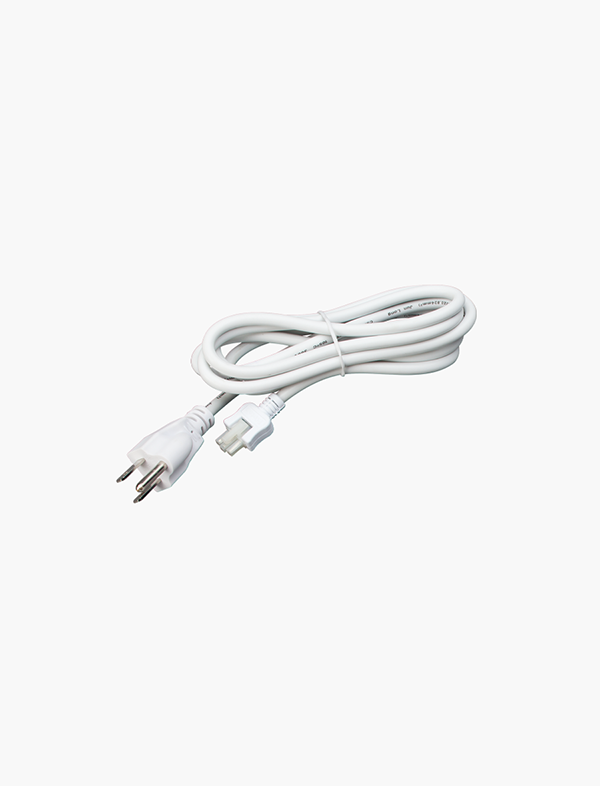

GLYDE OR VIVID I POWER CORD

 SPEC SHEET
INSTRUCTIONS

VIVID II
CONNECTOR CORDS


Vivid

Using high quality LED technology, these fixtures achieve great light output and a high level of energy efficiency at an extremely affordable price point. With local on/off switches and the ability to be dimmed down to 10% these fixtures work well for different activities or times of day.

SPEC SHEET
INSTRUCTIONS

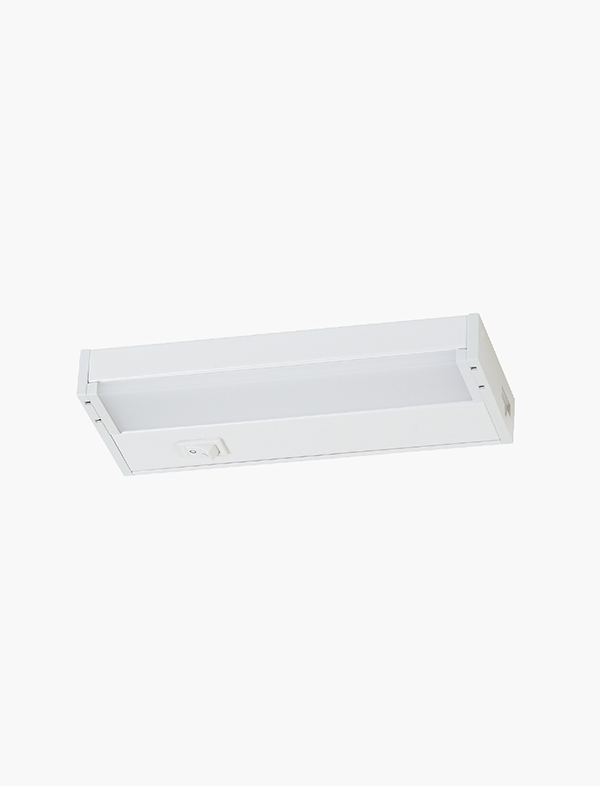

VIVID 120V

Size
  • 7.5”
  • 12”
  • 18”
  • 24”
  • 30”
 SPEC SHEET
INSTRUCTIONS

VIVID
CONNECTOR CORDS

 SPEC SHEET
INSTRUCTIONS

GLYDE OR VIVID I
FEMALE TO FEMALE
CONNECTOR

 SPEC SHEET
INSTRUCTIONS

GLYDE OR VIVID I MALE TO MALE CONNECTOR

 SPEC SHEET
INSTRUCTIONS

GLYDE OR VIVID I POWER CORD

 SPEC SHEET
INSTRUCTIONS

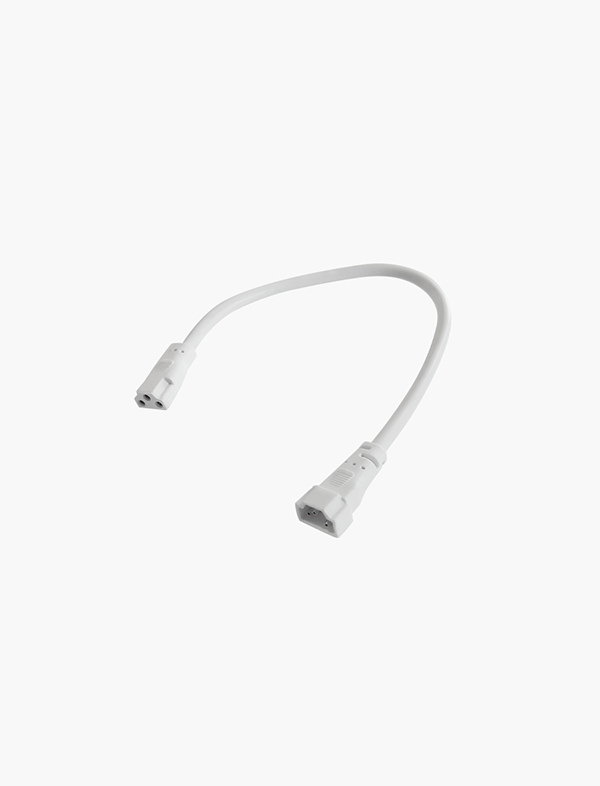

VIVID II
CONNECTOR CORDS

 SPEC SHEET
INSTRUCTIONS

VIVID II CONNECTOR

 SPEC SHEET
INSTRUCTIONS

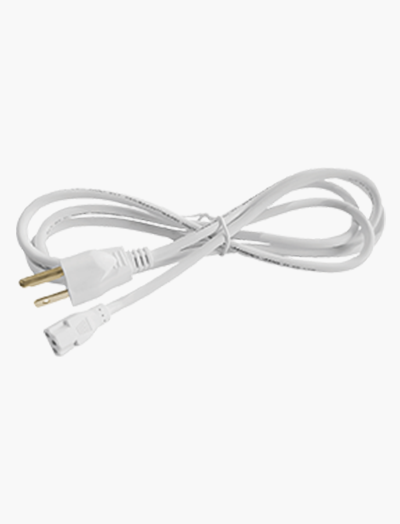

VIVID II POWER CORD


Self Contained

Using high quality LED technology, these fixtures achieve great light output and a high level of energy efficiency at an extremely affordable price point. With local on/off switches and the ability to be dimmed down to 10% these fixtures work well for different activities or times of day.

SPEC SHEET
INSTRUCTIONS

SELF-CONTAINED FLUORESCENT

Size
  • 12”
  • 21”
  • 24”
 SPEC SHEET
INSTRUCTIONS

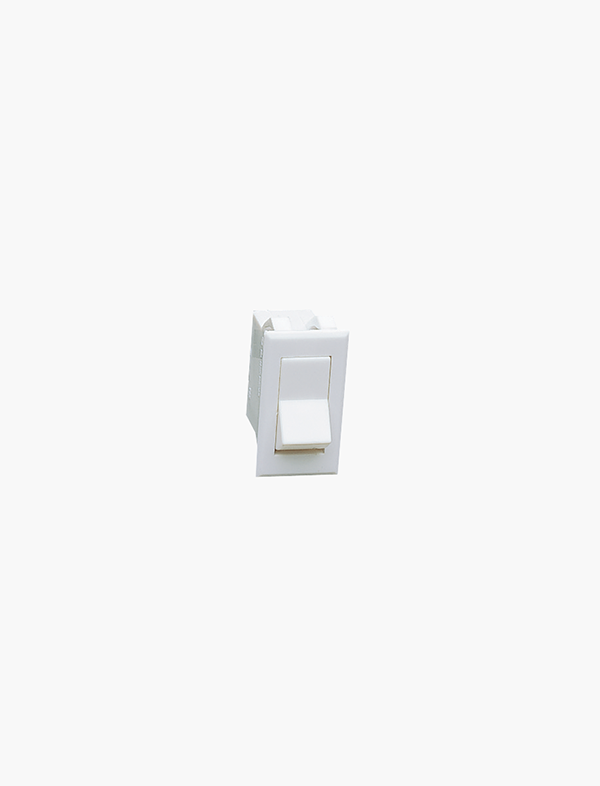

SELF CONTAINED ON/OFF SWITCH


LED Disk Lights

Disk Lights are convenient and small LED lights that feature a round, circular shape. Ideal for residential, commercial, and retail applications with ample lumne output and versatility.

 SPEC SHEET
INSTRUCTIONS

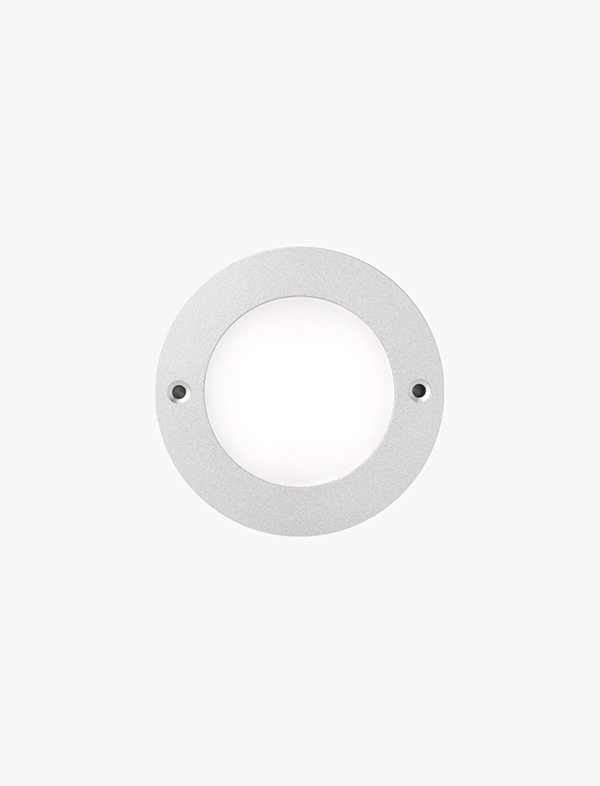

LED DISK LIGHTS

 SPEC SHEET
INSTRUCTIONS

DISK USB C FEMALE INPUT
TO 2 USB C MALE OUTPUTS

 SPEC SHEET
INSTRUCTIONS

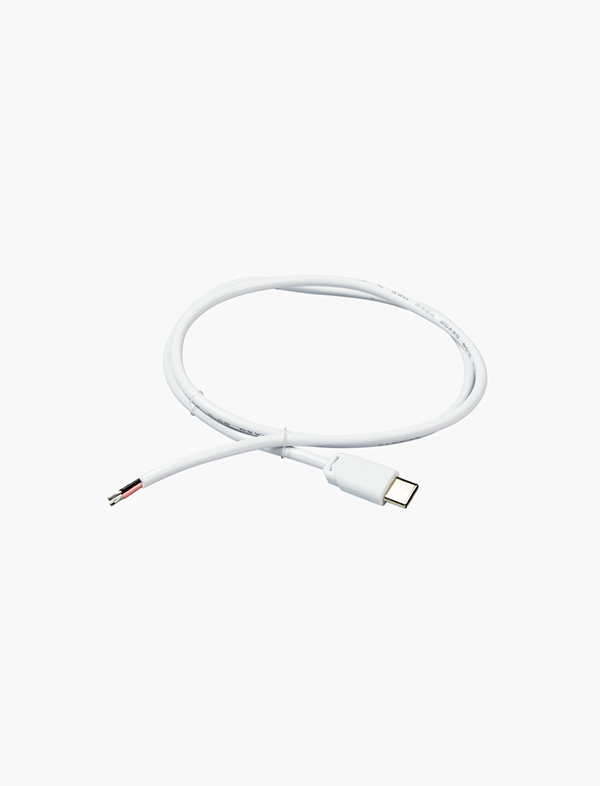

DISK POWER CORDS

 SPEC SHEET
INSTRUCTIONS

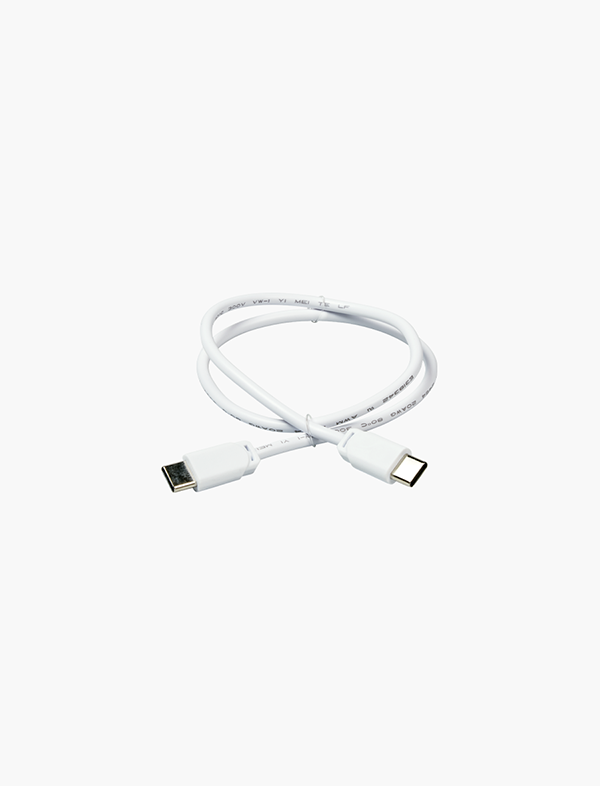

DISK USB C TO
USB C CABLE

 SPEC SHEET
INSTRUCTIONS

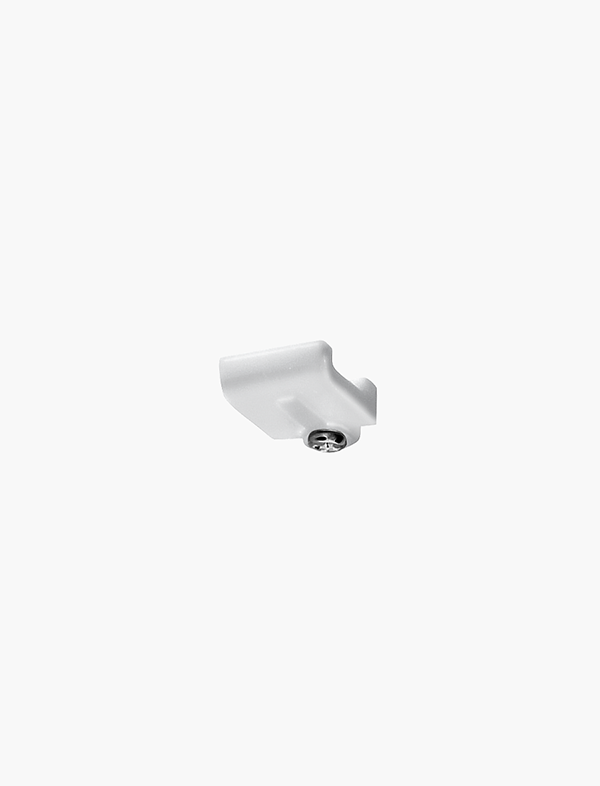

DISC MOUNTING CLIPS

 SPEC SHEET
INSTRUCTIONS

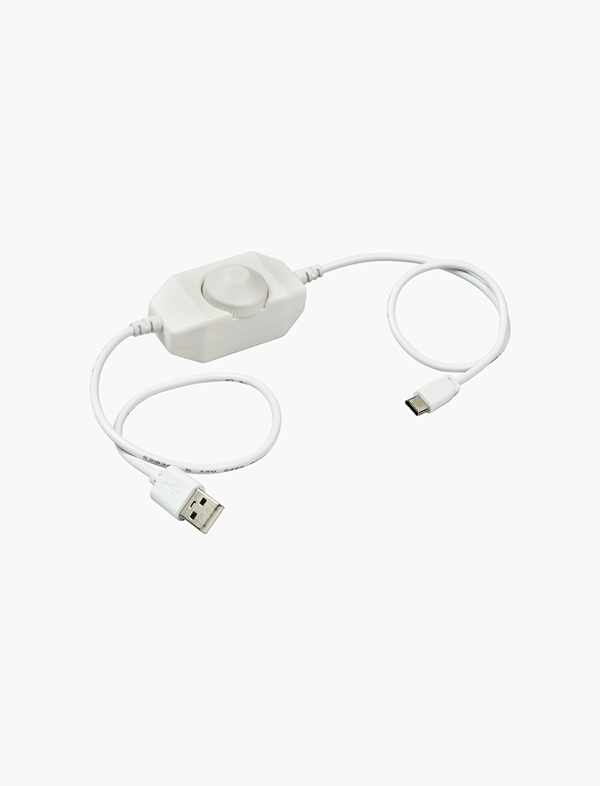

DISK DIMMER

 SPEC SHEET
INSTRUCTIONS

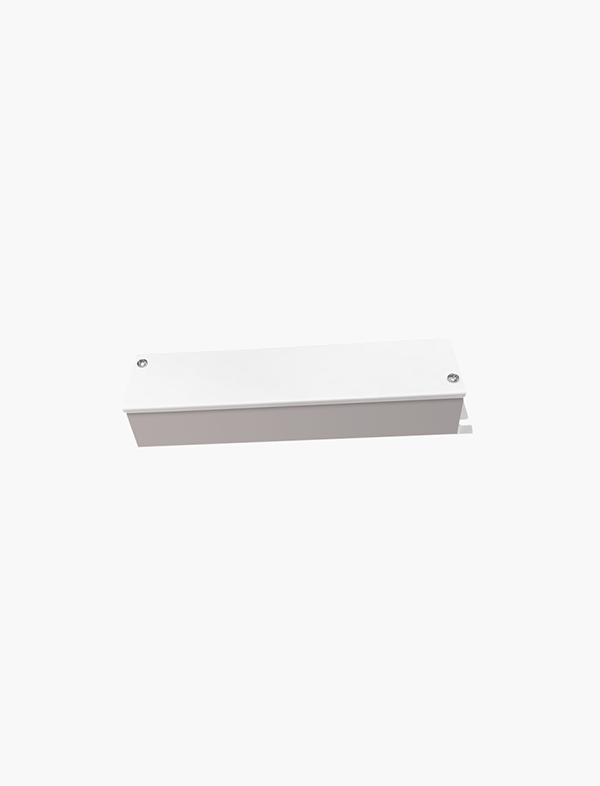

DISK TRANSFORMER

 SPEC SHEET
INSTRUCTIONS

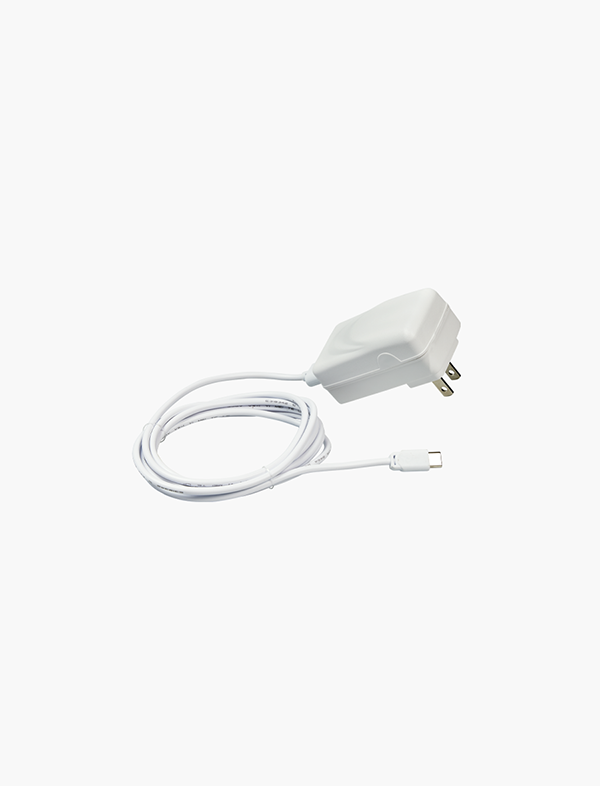

DISK PLUG IN POWER ADAPTER


LX Cable System

Lx Cable System gives users the utmost flexibility to easily design and install customized lighting to meet the specific needs of their space.

 SPEC SHEET
INSTRUCTIONS

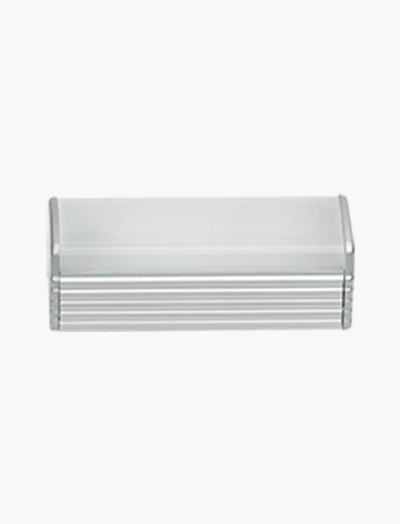

HIGH OUTPUT LED MODULES

Size
  • 2”
  • 4”
 SPEC SHEET
INSTRUCTIONS

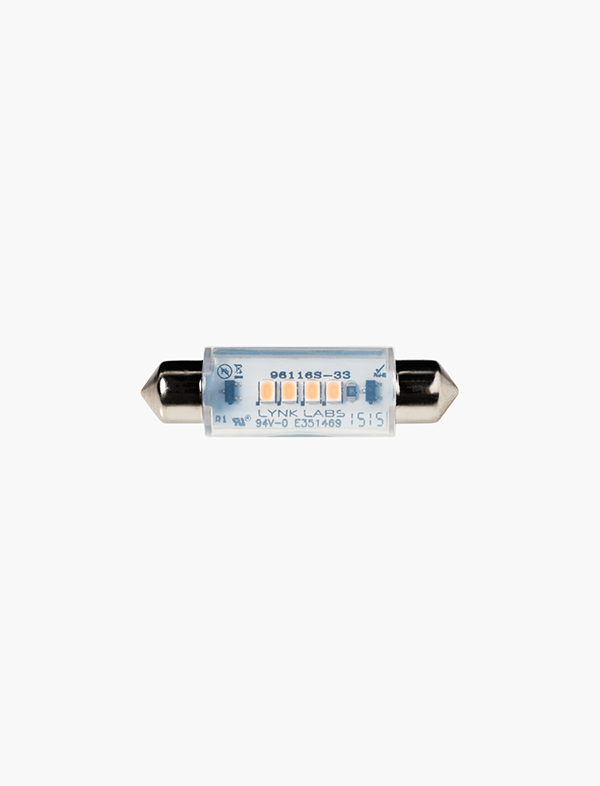

LED FESTOON

 SPEC SHEET
INSTRUCTIONS

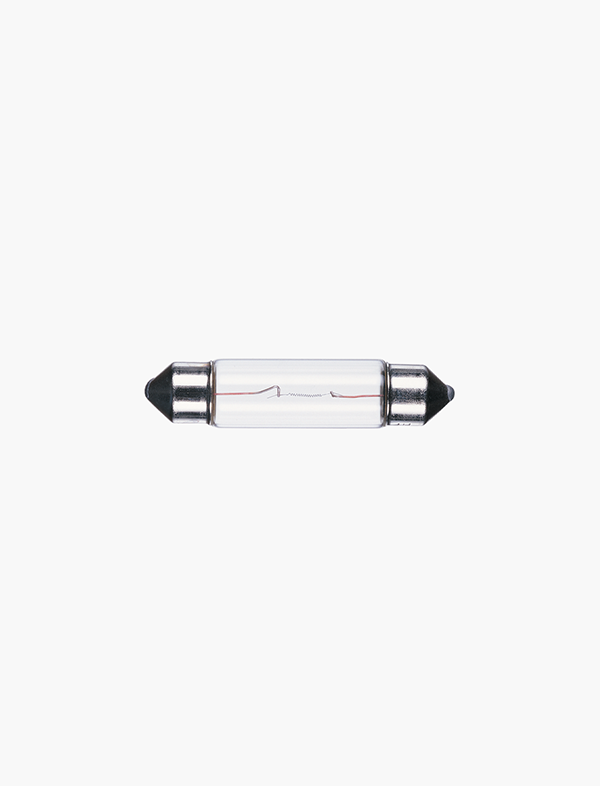

XENON FESTOON

 SPEC SHEET
INSTRUCTIONS

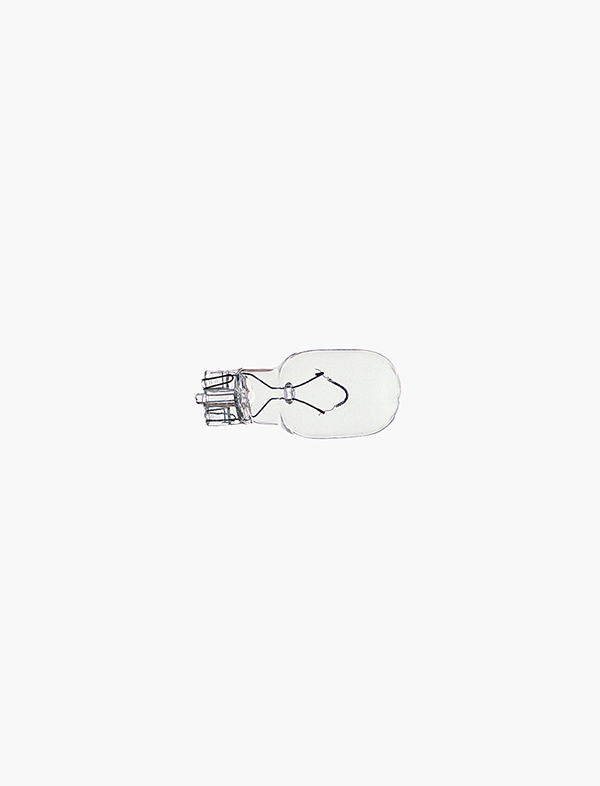

WEDGE BASE

 SPEC SHEET
INSTRUCTIONS

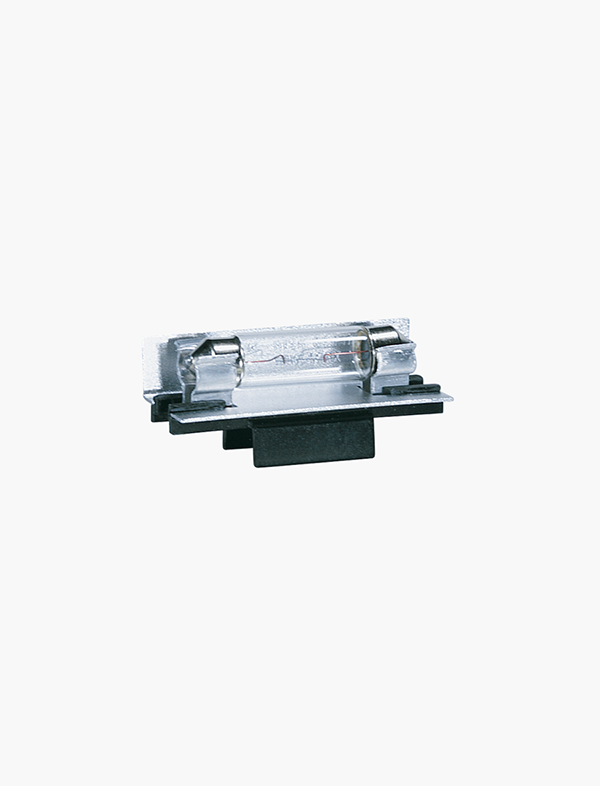

FESTOON LAMPHOLDER

 SPEC SHEET
INSTRUCTIONS

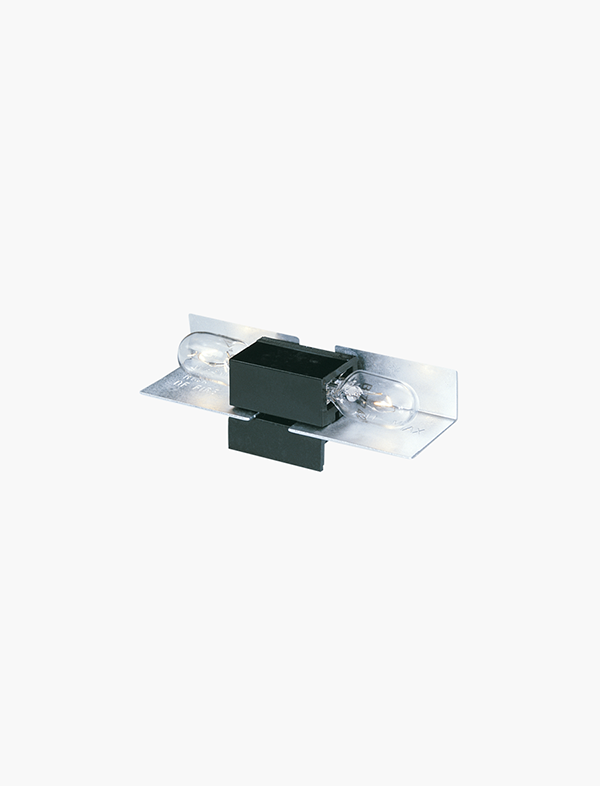

WEDGE BASED LAMPHOLDER

 SPEC SHEET
INSTRUCTIONS

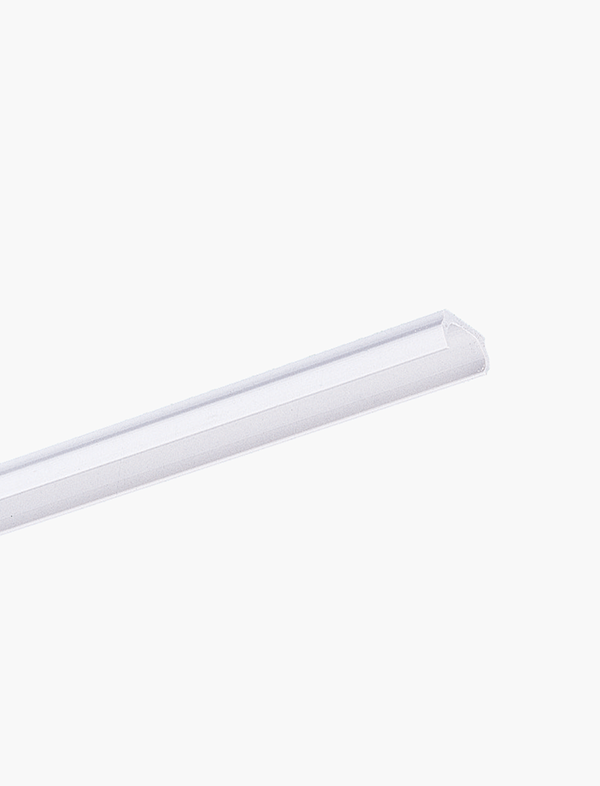

LX CABLE TRACK

 SPEC SHEET
INSTRUCTIONS

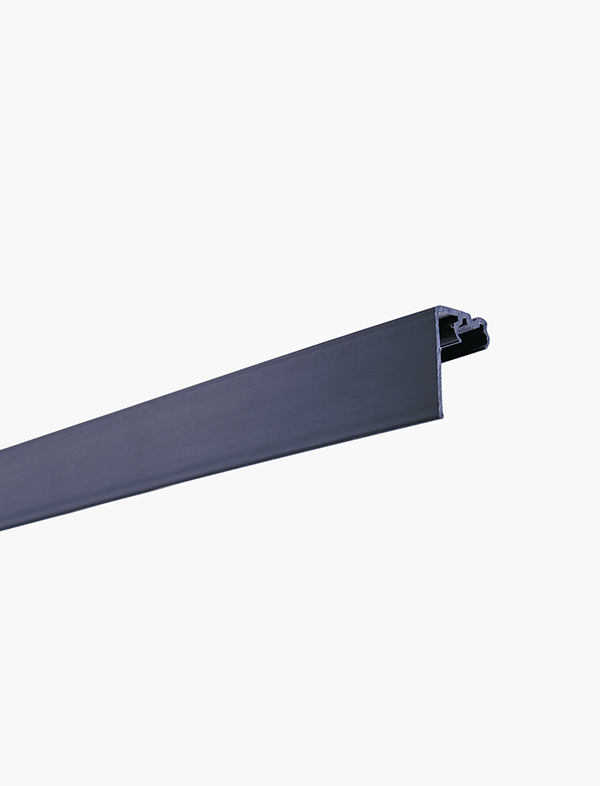

LX CABLE TRACK WITH FASCIA

 SPEC SHEET
INSTRUCTIONS

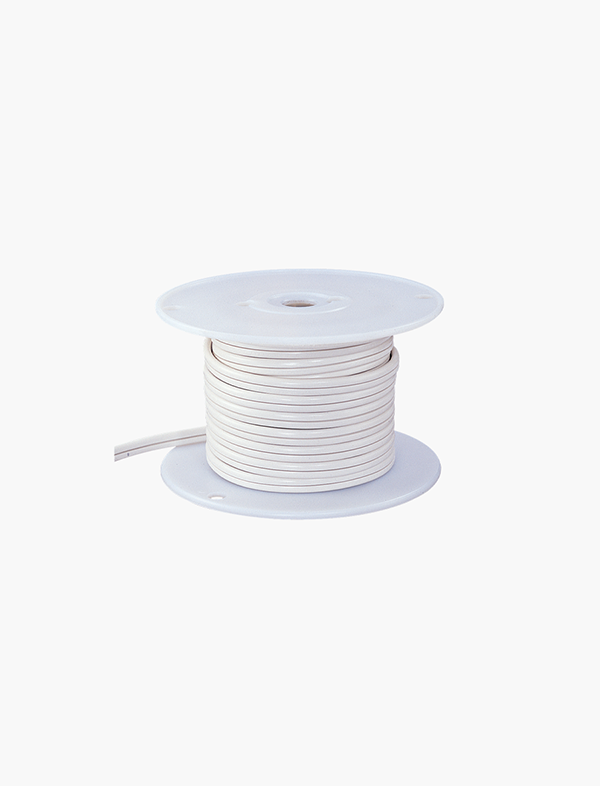

LX CABLE INDOOR CABLE SPOOL

 SPEC SHEET
INSTRUCTIONS

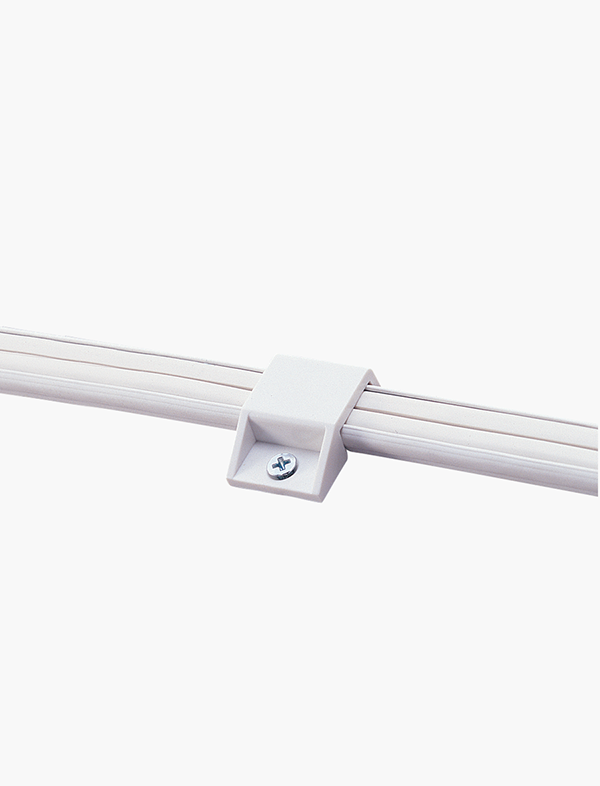

LX CABLE TRACK CLIP

 SPEC SHEET
INSTRUCTIONS

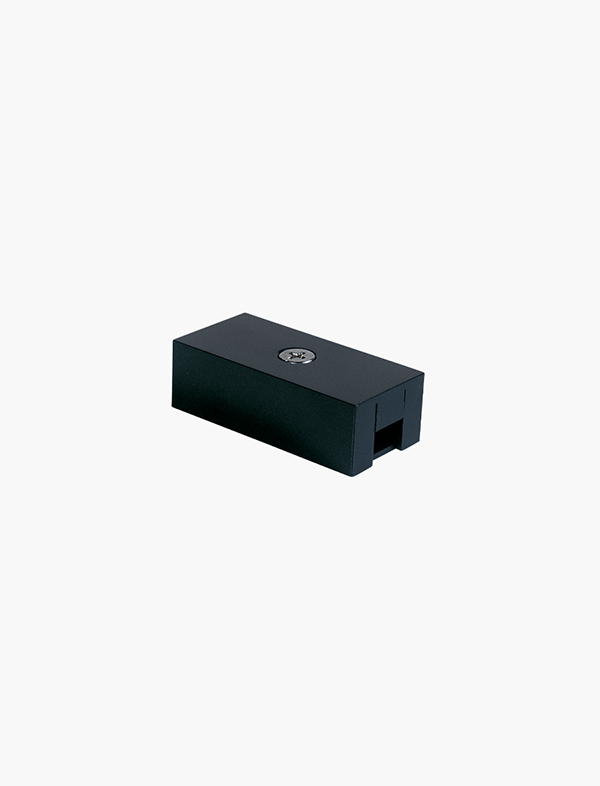

LX CABLE MINIATURE WIRING
COMPARTMENT/SPLICER

 SPEC SHEET
INSTRUCTIONS

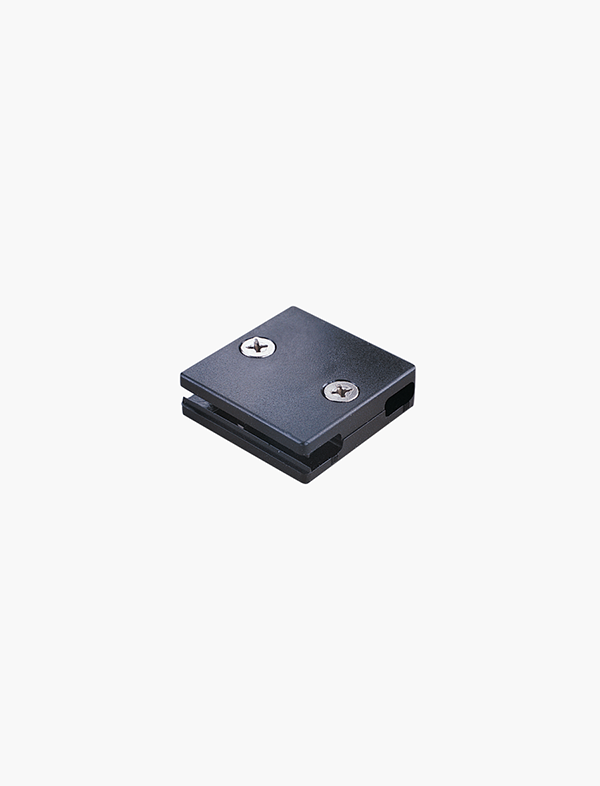

LX CABLE TAP OFF CONNECTOR

 SPEC SHEET
INSTRUCTIONS

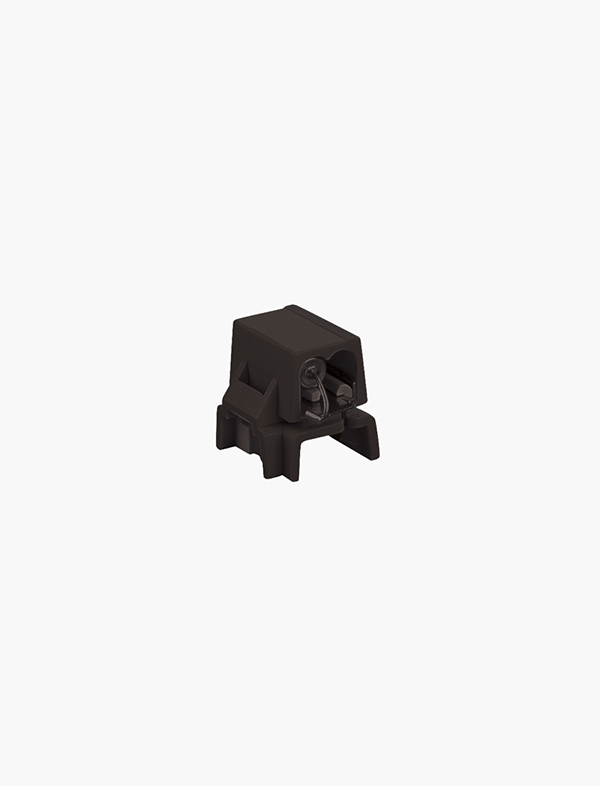

LX CABLE FUSED PLUG

 SPEC SHEET
INSTRUCTIONS

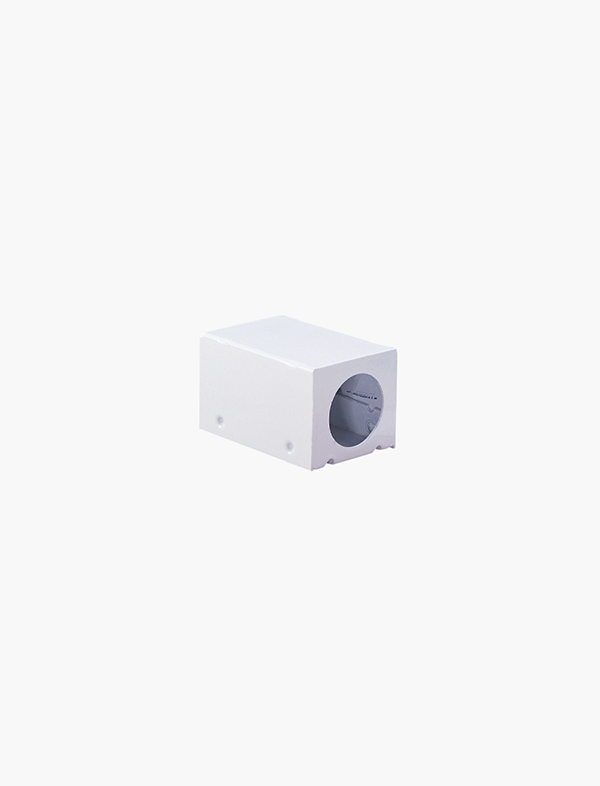

LX CABLE WIRING
COMPARTMENT

 SPEC SHEET
INSTRUCTIONS

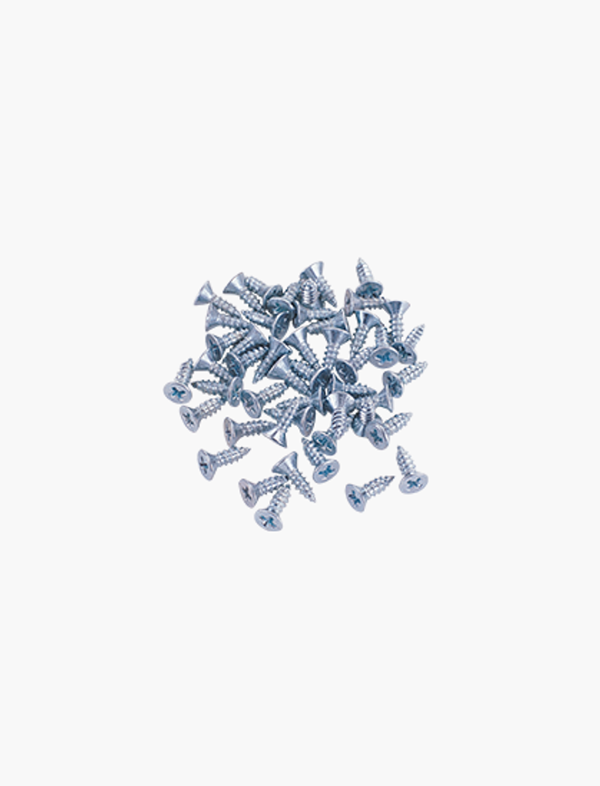

LX CABLE CHANNEL SCREWS

 SPEC SHEET
INSTRUCTIONS

LX CABLE DOUBLE FACED TAPE

 SPEC SHEET
INSTRUCTIONS

LX CABLE MAGNETIC
TRANSFORMERS

 SPEC SHEET
INSTRUCTIONS

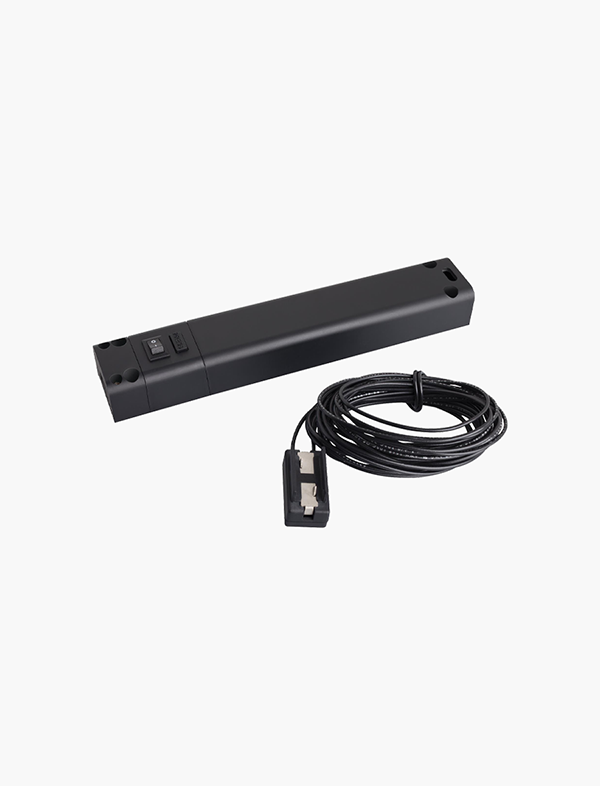

LX CABLE ELECTRONIC
TRANSFORMERS

Top
