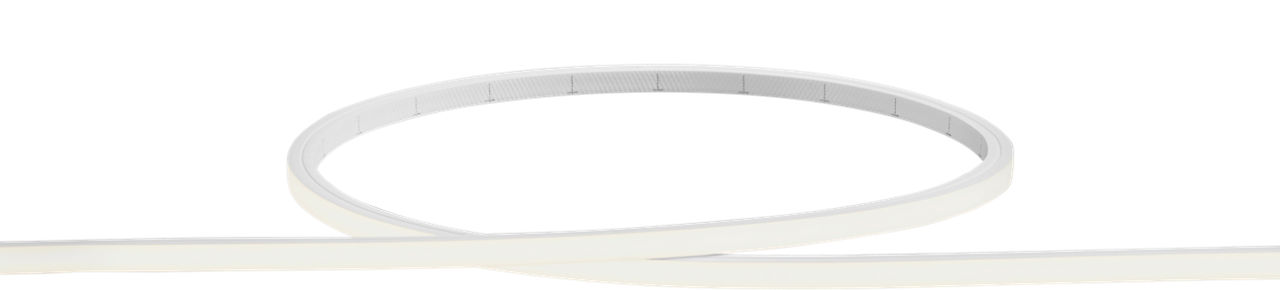

Essence Micro Flex Top Bend 0303 Indoor/Outdoor Wet IP67 Static White LED Strip
$100.00
Item
micro-flex-top-bend-0303-indoor-outdoor-wet-ip67-static
Only %1 left
ARCHITECTURAL COLLECTION
Description
ESSENCE™ Micro Flex Top Bend is a versatile flexible LED strip designed for indoor and outdoor architectural lighting applications. Delivering pixel-free illumination from an ultra-slim 0.3-inch profile, it bends vertically to create seamless lighting details while maintaining a minimal visual footprint.
- Integral lens delivers pixel-free, uniform illumination. ;
- Ultra-slim 0.3-inch profile blends seamlessly into the surrounding architecture when unlit. ;
- Factory-built in specified lengths from 7 inches to 274 inches. ;
- Mounting clips and mounting channel available for straight and curved applications. ;
- Fully sealed silicone construction protects internal components from moisture, dirt, and debris. ;
- Wet IP67 construction withstands demanding indoor and outdoor environments. ;
- Ideal for accent, cove, and architectural lighting. ;
- Compatible with reverse-phase, forward-phase, TRIAC, and 0-10V dimming. ;
- UL Listed Class 2 and Title 24 compliant.
Essence Micro Flex Top Bend 0303 Indoor/Outdoor Wet IP67 Static White LED Strip
Description
ESSENCE™ Micro Flex Top Bend is a versatile flexible LED strip designed for indoor and outdoor architectural lighting applications. Delivering pixel-free illumination from an ultra-slim 0.3-inch profile, it bends vertically to create seamless lighting details while maintaining a minimal visual footprint.
| ESTB0303 | ESSENCE Flex Top Bend .3" X .3" |
| P | P-Series |
Whole Numbers Only
| 08 | 80 LM/FT |
| 14 | 140 LM/FT |
| 924 | 2400K |
| 927 | 2700K |
| 930 | 3000K |
| 935 | 3500K |
| 940 | 4000K |
| F | Frosted |
| W | White |
| B | Back |
| E | End |
| N | No Feed |
| S1 | Side 1 |
| S2 | Side 2 |
| B | Back |
| E | End |
| N | No Feed |
| S1 | Side 1 |
| S2 | Side 2 |
| 7 | Wet IP67 |

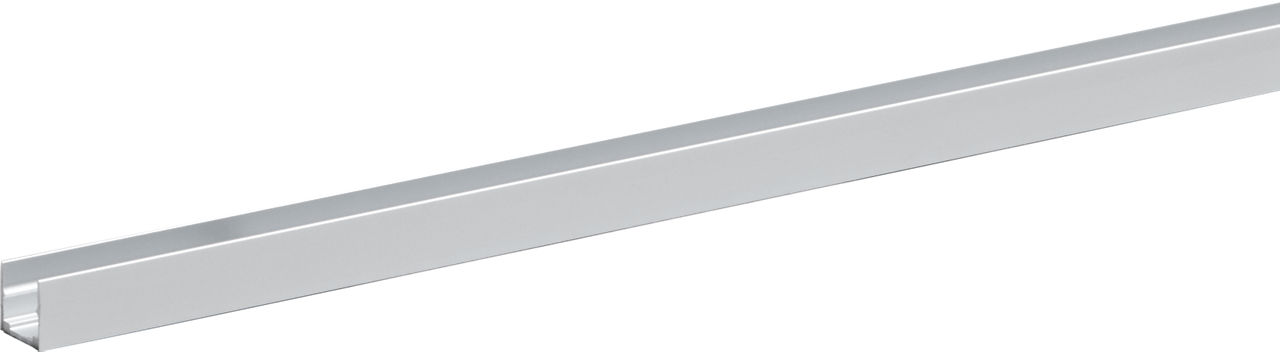

ESSENCE Micro Flex Rigid Mounting Channel
Description
ESSENCE™ Micro Flex Rigid Mounting Channels are compatible with ESSENCE Micro Flex 0303 LED Strips. Rigid Mounting Channels have an anodized aluminum finish. Available in 48" and 96" lengths and can be field cut to shorter lengths. Channels come with predrilled holes for mounting, 7.9-inches from each end. If field cutting channel, redrill mounting holes as needed.
| ESF0303 | ESSENCE Micro Flex Rigid Mounting Channel |
| 48 | 48 IN |
| 96 | 96 IN |
| A | Satin Aluminum |

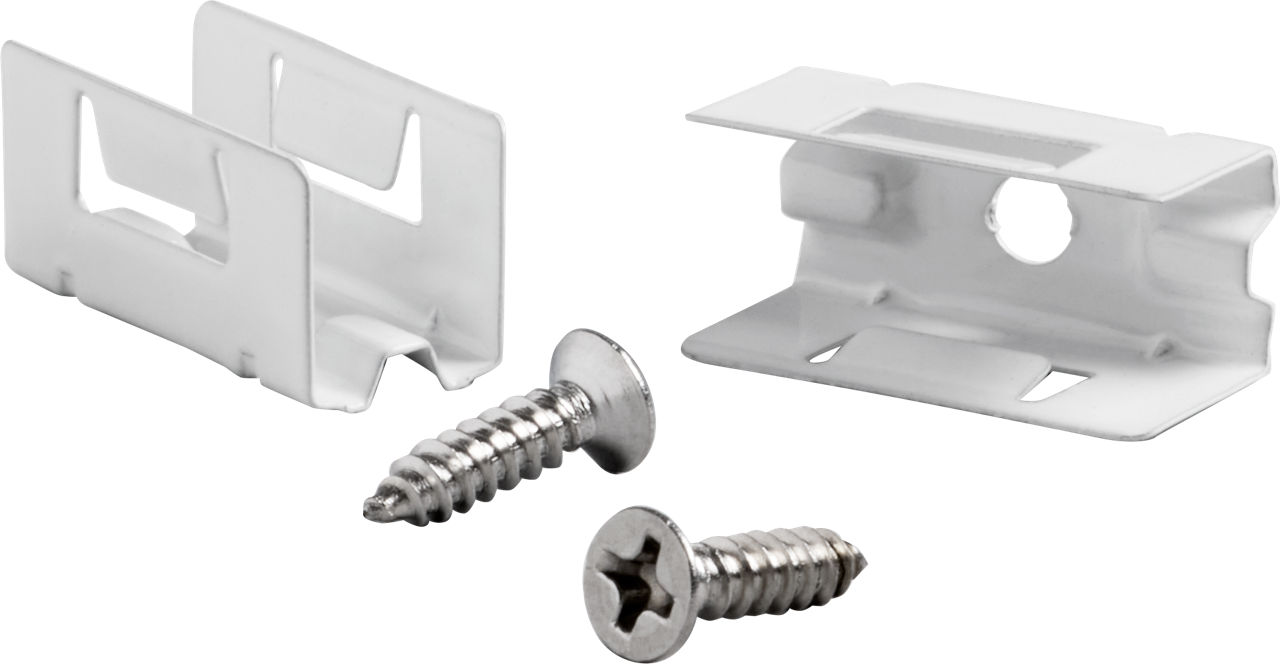

ESSENCE Micro Flex Mounting Clip
Description
ESSENCE™ Micro Flex Mounting Clips are compatible with ESSENCE Micro Flex 0303 LED Strips. Mounting clips are stainless steel and painted white. Mounting clips included with ESSENCE Flex LED Strip, order additional as needed. Each pack contains two mounting clips and two screws.
| ESFCLPSF03W | ESSENCE Micro Flex Mounting Clip |
ESSENCE Flex Wet IP68 Splice Box
Description
ESSENCE™ Flex Wet IP68 Splice Box is compatible with all ESSENCE Flex LED Strip. Provides a watertight enclosure for electrical wire connections for indoor and outdoor wet applications. Connect up to three wires with easy lever lock design. White finish. Slim 1-inch profile.
| ESFCW8 | ESSENCE Wet IP68 Splice Box |
