Recessed Flangeless Mud-In Cove/Toe Kick Channel
$100.00
Item
recessed-flangeless-mud-in-cove-toe-kick-channel
ARCHITECTURAL COLLECTION
Description
Create layers of light with soft indirect illumination at floor level for an elegant and modern aesthetic using ESSENCE Recessed Flangeless Mud-In Cove/Toe Kick Channels. Alternatively, draw the eye upward by highlighting cove architectural features that add depth and dimension to your space.
- Field-cuttable components for on-site construction
- Construction. Extruded aluminum channel, acrylic lens, and metal end caps
- Can be installed in drywall that is 1/2" thick or larger without stud/joist modification
- Suitable for wall mount
- Registered CEC appliance database. complies with CEC 2019 Title 24 Part 6
- ETL Listed Class 2, Damp Location
- Approved for use in closet storage spaces per NEC Article 410.16
- L70. 50,000 hours min
- Warranty. Power supplies 5 years. all other components 10 years
1. Select Extruded Channel With Lens (Required)
Description
Create layers of light with soft indirect illumination at floor level for an elegant and modern aesthetic using ESSENCE Recessed Flangeless Mud-In Cove/Toe Kick Channels. Alternatively, draw the eye upward by highlighting cove architectural features that add depth and dimension to your space.
| ESRLCV | ESSENCE Recessed Flangeless Mud-In Cove/Toe Kick |
| 48 | 48 IN |
| 96 | 96 IN |
| F | Frosted |
2. Select Power Feed (Required)
Description

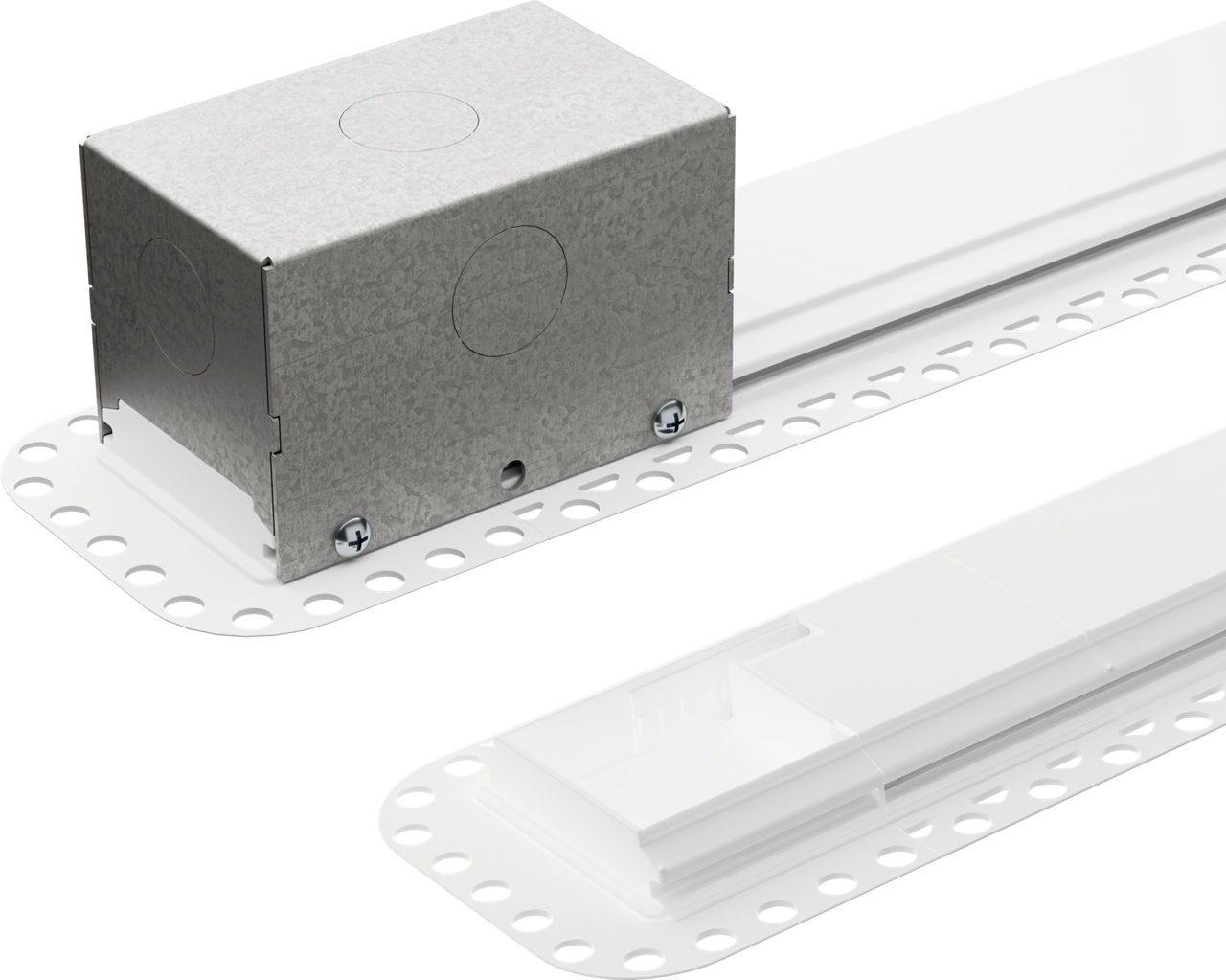

The power feed includes a satin aluminum access box, a 12-inch satin aluminum starter channel, a strip-to-wire connector,* a white lens, and a joiner. Electrical connections are completed at the access box. Note: Local electrical codes may require a junction box.
| ESRLCVPFFE | Recessed Flangeless Mud-In Cove/Toe Kick Power Feed |
| J | End Feed, With Metal Junction Box |
| N | End Feed, No Junction Box |
3. Select End Caps (Required)
Description

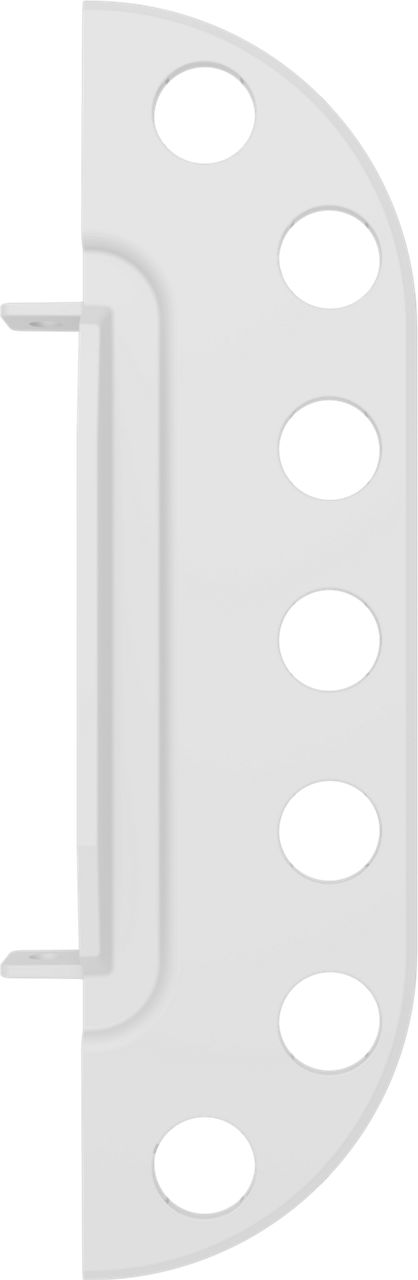

An end cap is required for the non-powered end of the fixture. Use a standard end cap for a seamless appearance. Select the low-profile end cap for installations where one end of a ceiling-mounted fixture meets a wall or ceiling corner.
| ESRLCVEND | Recessed Flangeless Mud-In Cove/Toe Kick End Cap |
| L | Low Profile End Cap |
| S | Standard End Cap |
4. Select Joiner (Optional)
Description
ESRLCJ is used to connect multiple channel segments. Included with fixtures Order additional channel joiners when connecting 2 fixtures to form a longer run.
| ESRLCJ | ESSENCE Recessed Flangeless Mud-In Channel Joiner |
5. Select LED Strip (Required To Choose One)
LED Strip Premium Indoor Static White
Description
ESSENCE premium LED Strip provides made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and Tech Lighting’s impeccable service, ESSENCE is easy to specify, easy to install and blends seamlessly into the architectural design to elevate any space.
| ESLT | ESSENCE LED Strip Premium Indoor Static White |
| U | U-Series |
| P | P-Series |
Whole Numbers Only
| 200 | 200 LM/FT |
| 300 | 300 LM/FT |
| 500 | 500 LM/FT |
| 800 | 800 LM/FT |
| 924 | 2400K |
| 927 | 2700K |
| 930 | 3000K |
| 935 | 3500K |
| 942 | 4200K |
| N | No Leads |
| 1 | 1 Feed, Soldered Leads |
LED Strip Premium Indoor Warm Dim
Description
ESSENCE premium LED Strip provides made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and Tech Lighting’s impeccable service, ESSENCE is easy to specify, easy to install and blends seamlessly into the architectural design to elevate any space.
| ESLT | ESSENCE LED Strip Premium Indoor Warm Dim |
| D | D-Series |
Whole Numbers Only
| 500 | 500 LM/FT |
| 350 | 350 LM/FT |
| 9W3018 | Warm Dim 3000K-1800K |
| N | No Leads |
| 1 | 1 Feed, Soldered Leads |
LED Strip Premium Indoor Strip to Wire Connector Recessed
LED Strip Standard Indoor Static White
Description
The ESSENCE Standard Series Static White LED Strip is a budget-friendly, versatile light strip perfect for illuminating tight spaces, and can be paired with a channel for a finished appearance.
| ESLT | ESSENCE LED Strip Standard Indoor Static White |
| S | S-Series |
| 8 | 8 FT |
| 16 | 16 FT |
| 100 | 100 FT |
| 185 | 185 LM/FT |
| 315 | 315 LM/FT |
| 470 | 470 LM/FT |
| 927 | 2700K |
| 930 | 3000K |
| 935 | 3500K |
| N | No Leads |
| 1 | 1 Feed, Soldered Leads |
| 2 | 2 Feeds, Soldered Leads |
LED Strip Standard Indoor Strip to Wire Connector
LED Strip Standard Indoor Strip to Strip Connector
6. Select Power Supply (Required Calculate Power Before Choosing)
Power Supply Phase Dimming Remote 24VDC
Description
Remote Power Supply for dimming down to 0.2%. 120V input voltage with 24V DC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| ELV | Reverse-Phase, Forward-Phase, TRIAC |
| 120 | 120V |
Power Supply 0-10V Remote 24VDC 5%
Description
Remote Power Supply for 0-10V dimming down to 5%. Universal input 120V-277V with 24V DC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| 010 | 0-10V |
| 120-277 | 120-277V |
Power Supply EldoLED Lineardrive 0-10V Remote 24VDC 0.1%
Description
Remote eldoLED LINEARdrive Power Supply for 0-10V dimming down to 0.1%. Linear dimming curve. Universal input 120V-277V with 24VDC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| 1010 | 0-10V |
| 120-277 | 120-277V |
Power Supply Lutron Hi-Lume Ecosystem/3-Wire Remote 24VDC 0.1%
Description
Remote Lutron Hi-lume Power Supply for EcoSystem compatibility with dimming down to 0.1%. Universal input 120V-277V with 24V DC output available in 100W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 100 | 100W |
| 24 | 24VDC |
| HLECO | Lutron Hi-Lume ECO/3-Wire |
| 120-277 | 120-277V |
Power Supply Non-Dimming Remote 24VDC
Description
Remote Power Supply for applications where dimming is not required. Universal input 120V-277V with 24VDC output available in 60W and 96W. Enclosure included.
| ESPR | ESSENCE Power Supply Remote |
| 060 | 60W |
| 100 | 96W |
| 24 | 24VDC |
| ND | Non-Dimming |
| 120-277 | 120-277V |
Recessed Flangeless Mud-In Cove/Toe Kick Channel
