ESSENCE Recessed Flanged 0809 Grazer Channels offer a perfect balance of form and function. These channels beautifully illuminate the architectural details on your walls, accentuating textures and shadows, and creating visual interest, all while taking up minimal space.
Field-cuttable components for on-site construction
Channels available in black, white, and satin aluminum
Construction. Extruded aluminum channel, acrylic lens, and metal end caps
Channels available in black, white, and satin aluminum
Registered CEC appliance database. Complies with CEC 2019 Title 24 Part 6
ETL Listed Class 2, Damp Location
Approved for use in closet storage spaces per NEC Article 410.16
L70. 50,000 hours min
Warranty. Power supplies 5 years. all other components 10 years
ESSENCE Recessed Flanged 0809 Grazer Channels offer a perfect balance of form and function. These channels beautifully illuminate the architectural details on your walls, accentuating textures and shadows, and creating visual interest, all while taking up minimal space.
Set includes one power feed and one end cap. Sold as a pair.
SKU:Copied!
ESRF0809END

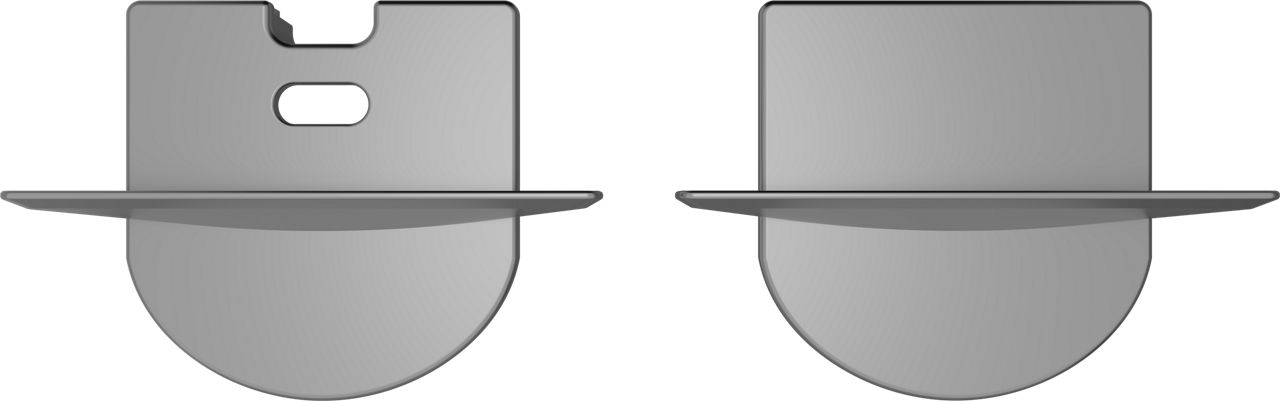

Recessed Flanged 0809 Grazer End Cap Kit
B
Black
A
Satin Aluminum
W
White (Paintable)
3. Select Joiner (Optional)
Description
The joiner connects multiple channels to form longer runs. One joiner required per joint.
SKU:Copied!
ESSF0606CJ
Channel Joiner 06 Wide
4. Select LED Strip (Required To Choose One)
LED Strip Premium Indoor Static White
Description
ESSENCE premium LED Strip provides made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and Tech Lighting’s impeccable service, ESSENCE is easy to specify, easy to install and blends seamlessly into the architectural design to elevate any space.
ESSENCE premium LED Strip provides made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and Tech Lighting’s impeccable service, ESSENCE is easy to specify, easy to install and blends seamlessly into the architectural design to elevate any space.
The ESSENCE Standard Series Static White LED Strip is a budget-friendly, versatile light strip perfect for illuminating tight spaces, and can be paired with a channel for a finished appearance.
Strip-to-wire connectors are used to feed power to a run of S-Seriess Indoor/Damp LED strips. The connectors can be used to power the strip as a standalone light source or combined with channels when a finished appearance is desired. Compatible with 20-22 AWG wire.
Power Supply EldoLED Lineardrive 0-10V Remote 24VDC 0.1%
Description
Remote eldoLED LINEARdrive Power Supply for 0-10V dimming down to 0.1%. Linear dimming curve. Universal input 120V-277V with 24VDC output available in 60W and 96W. Enclosure included.
Power Supply Lutron Hi-Lume Ecosystem/3-Wire Remote 24VDC 0.1%
Description
Remote Lutron Hi-lume Power Supply for EcoSystem compatibility with dimming down to 0.1%. Universal input 120V-277V with 24V DC output available in 100W. Enclosure included.
Remote Power Supply for applications where dimming is not required. Universal input 120V-277V with 24VDC output available in 60W and 96W. Enclosure included.
