ELEMENT RECESSED
Engineered for the Most Discerning Eye
ELEMENT is a modern interpretation of specification-grade downlighting, expertly engineered to deliver critically specified light for any environment. Since its inception, ELEMENT has been defined by the needs and requirements of the design community. Our goal is to design for you - to help you solve real lighting challenges. We accomplish that because what matters to you also matters to us.

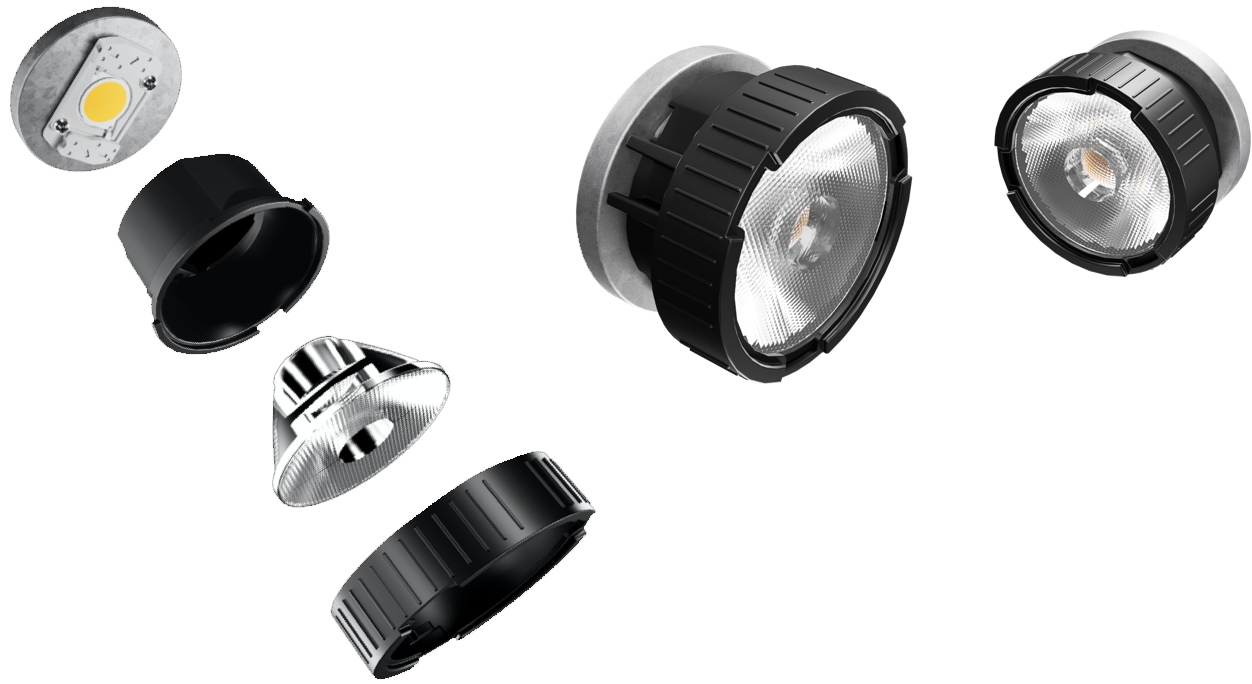

Element LED Module
Our field-replaceable LED modules are built to last over 50,000 hours while delivering the highest quality light. The drivers that power each LED provide deep dimming to 1% or less and are compatible with a wide variety of third-party dimmer controls.


Color Temperature
We offer numerous color temperature options to to suit a diverse set of needs and preferences.

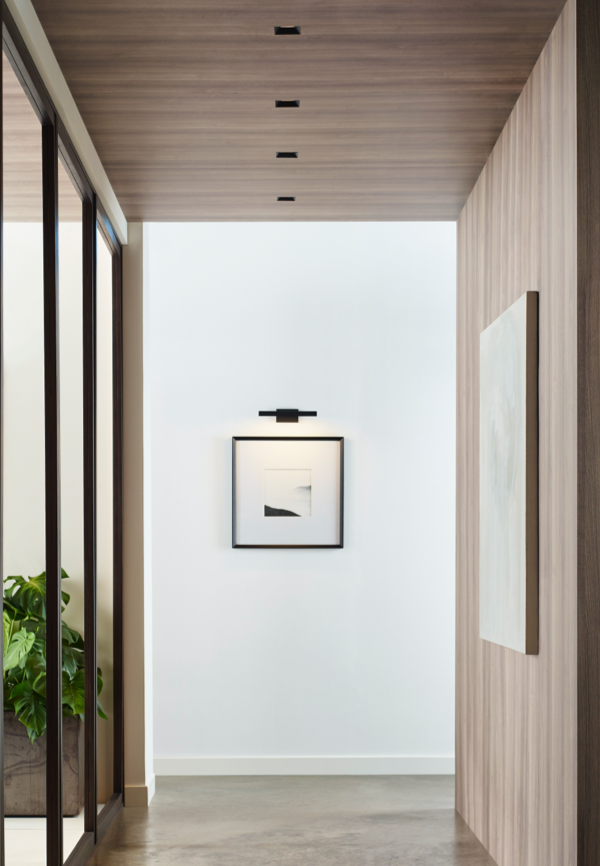

Static White
Available as standard in 2700K, 3000K or 3500K. Inquire for custom color temperatures. Compatible with a wide range of dimmers, but does not change color temperature as it dims.

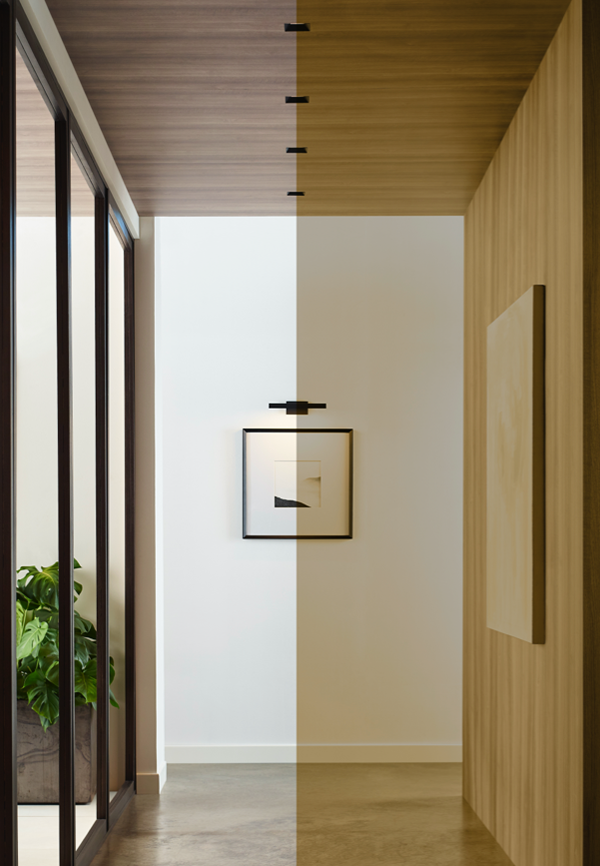

Warm Dim
As the LED dims, it warms in color temperature, much like an incandescent light bulb. Does not require any special controls other than a dimmer.

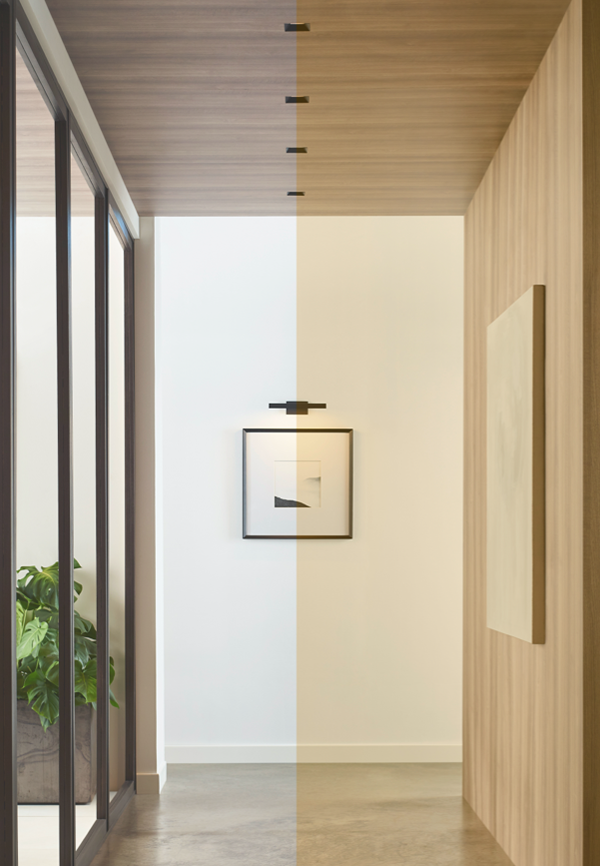

Tunable White
The color temperature can be controlled independently from the brightness. Available in two options 4000K-1800K and 5000K-2700K. Available with 0-10V and DALI Controls.
Precision Optics
We have developed a series of custom designed optics to deliver clean, even illumination – from a very narrow 10° to a wide 60° and even up to 95° in the E4 Pro Series to be used for general illumination.


10°

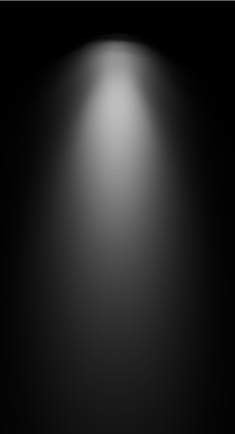

18°


25°

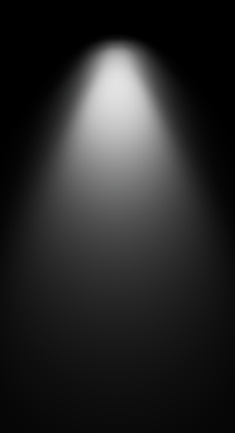

40°


60°
Multiple Aperture Sizes
Select the ideal size for your application.

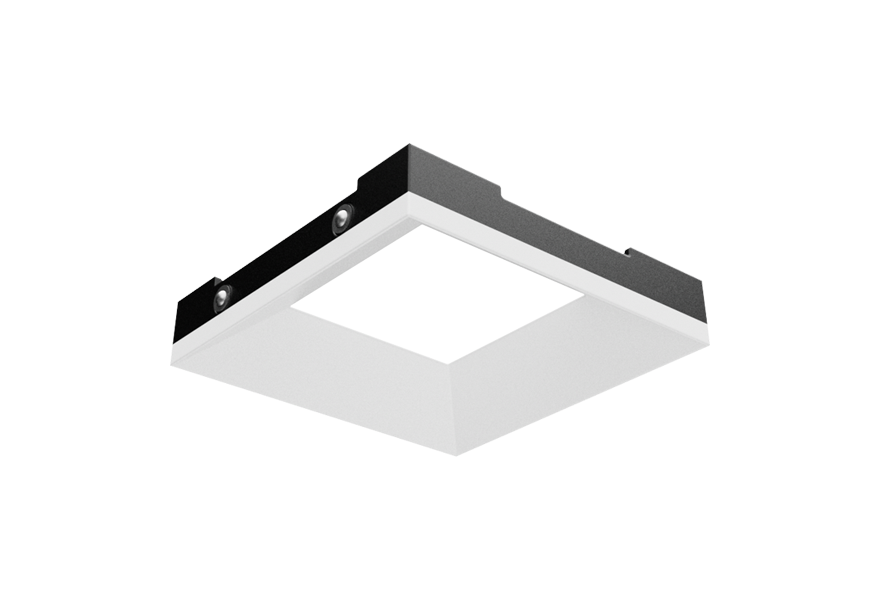

2"
Ideal when a smaller aperture is preferred for the most minimal aesthetic while still offering great output and functionality.


3"
Small aperture downlights engineered with a broad set of features and housings to accommodate numerous specialty applications in both new construction and remodel applications.

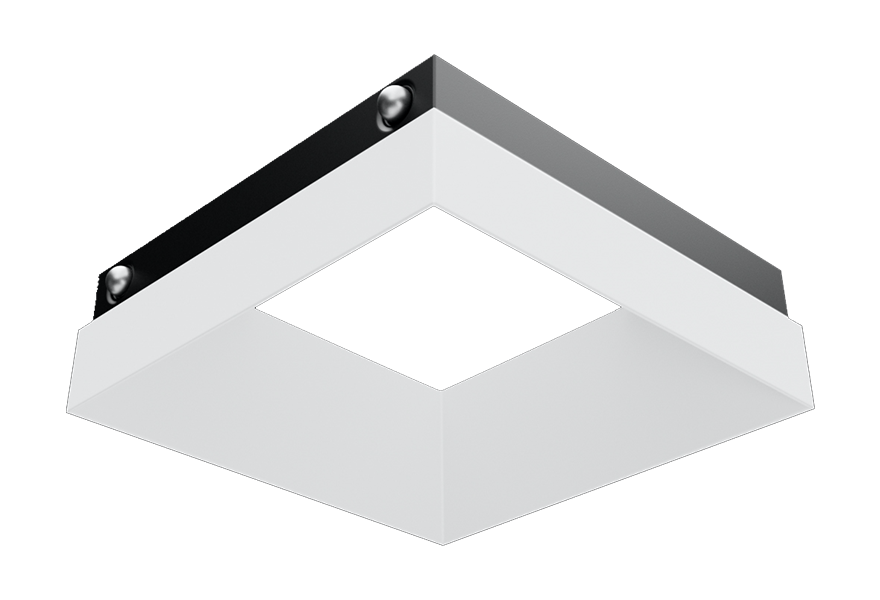

4"
Ideal for maximum light output in environments with higher ceilings while still providing a small aperture, tailored aesthetic.

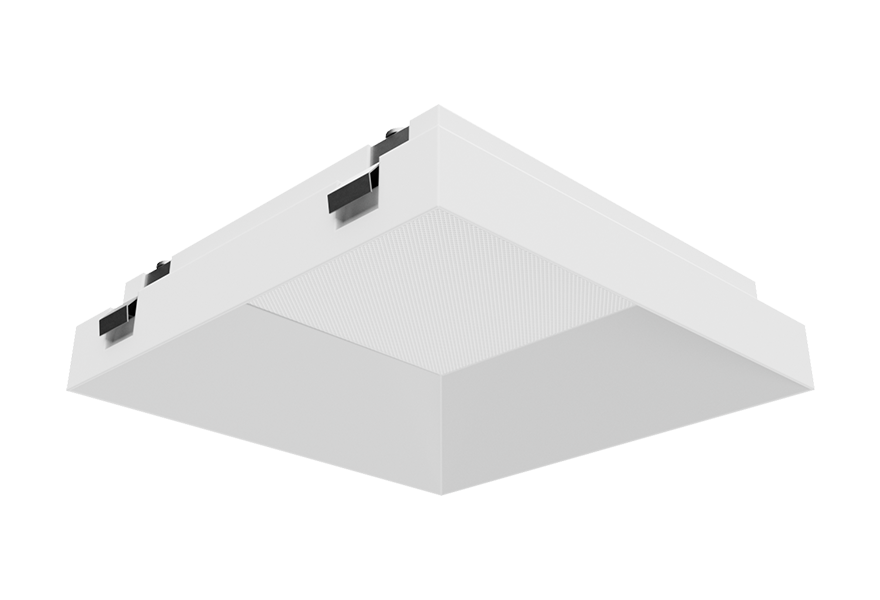

4" Pro
Available for high output and wide-angle general illumination.

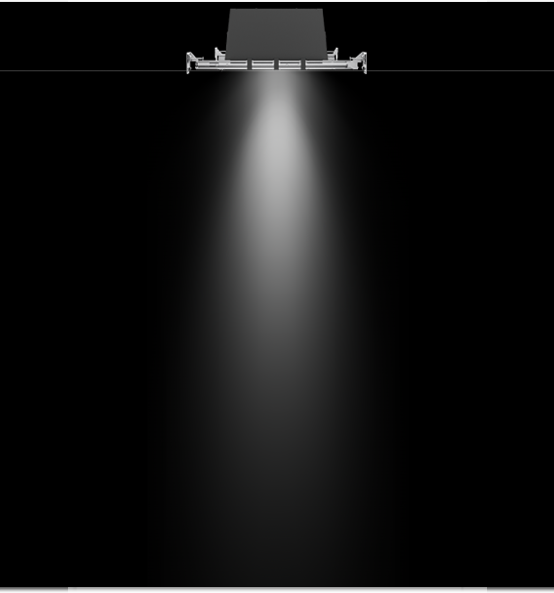

Multiple Functions
Available in Adjustable, Fixed, and Wall Wash to direct the light precisely where needed, with aesthetically common trims.

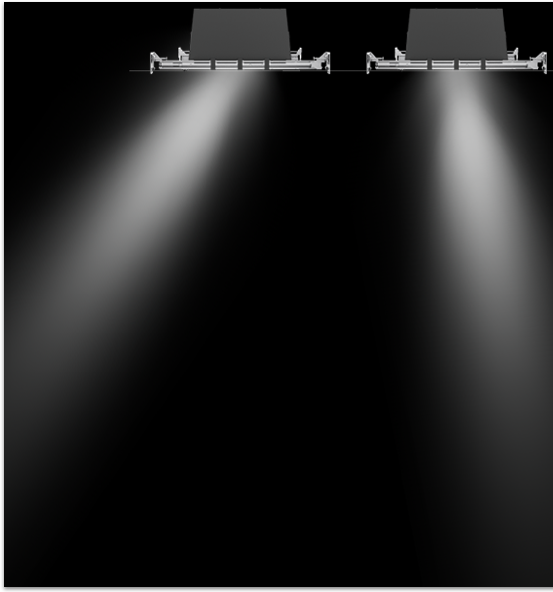

Adjustable
Aims light toward the object or surface you are illuminating. It provides maximum flexibility to direct the light at the most critical focal points in the space.


Fixed
Most cost-effective option. Best used where adjustability is not needed now or in the future.


Wall Wash
Creates uniform flood of light with minimal hot spots or scalloping. Used to illuminate large art or multiple smaller pieces in the same space or to call attention to architectural details like fireplaces or wall hangings.
Architectural Grade Aiming Control
Create layers of light and highlight key elements in the space or specific task surfaces. Aiming the light at specific focal points establishes contrast, creating interest and depth. We call it “Painting a Space in Light”.
40˚ TILT, HOT-AIMING
Light can be aimed higher or lower through the vertical tilt adjustment. The center beam is maintained through the aperture. Most options incorporate tool-free tilt and lock making adjustments quick and easy.
361˚ ROTATION
Light can be aimed left or right through the horizontal rotation adjustment allowing the light to be placed exactly where it is needed even if the light fixture itself is not centered relative to the focal point. Tool-free, 361° of rotation ensures there are not any ‘dead’ spots that cannot be illuminated.
PATENTED HIGH-LOW LAMP POSITIONS
Patented High-Low Lamp Positioning allows easy tool-free adjustment for optimum light output. Simply pull the lamp closer to the ceiling for maximum output or push the lamp higher into the housing to reduce glare, minimize flash and achieve a Quiet Ceiling aesthetic.
Flanged & Flangeless Trims
Create layers of light and highlight key elements in the space or specific task surfaces. Aiming the light at specific focal points establishes contrast, creating interest and depth. We call it “Painting a Space in Light”.

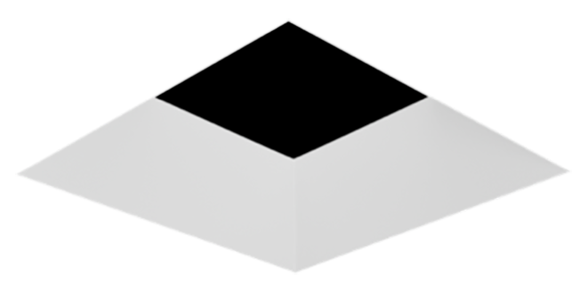

FLANGELESS
Sits completely flush with the ceiling plane for a smooth transition delivering the ultimate ‘Architectural’ appearance.


FLANGED
Has a thin ceiling ‘flange’ that sits on the surface of the ceiling. Provides easier installation.

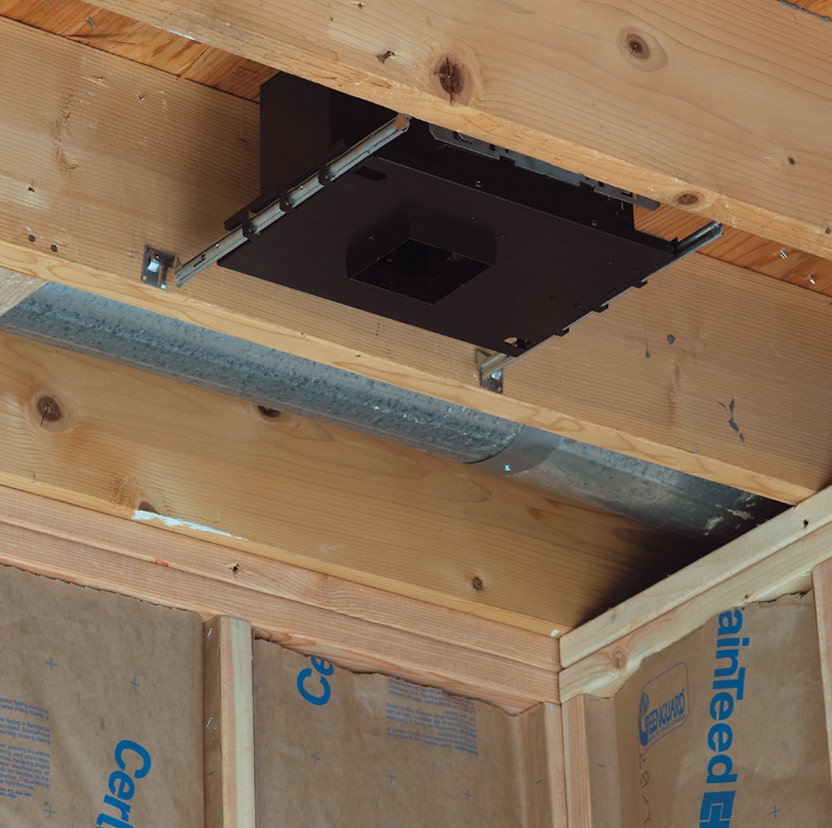

STEP 1


Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).

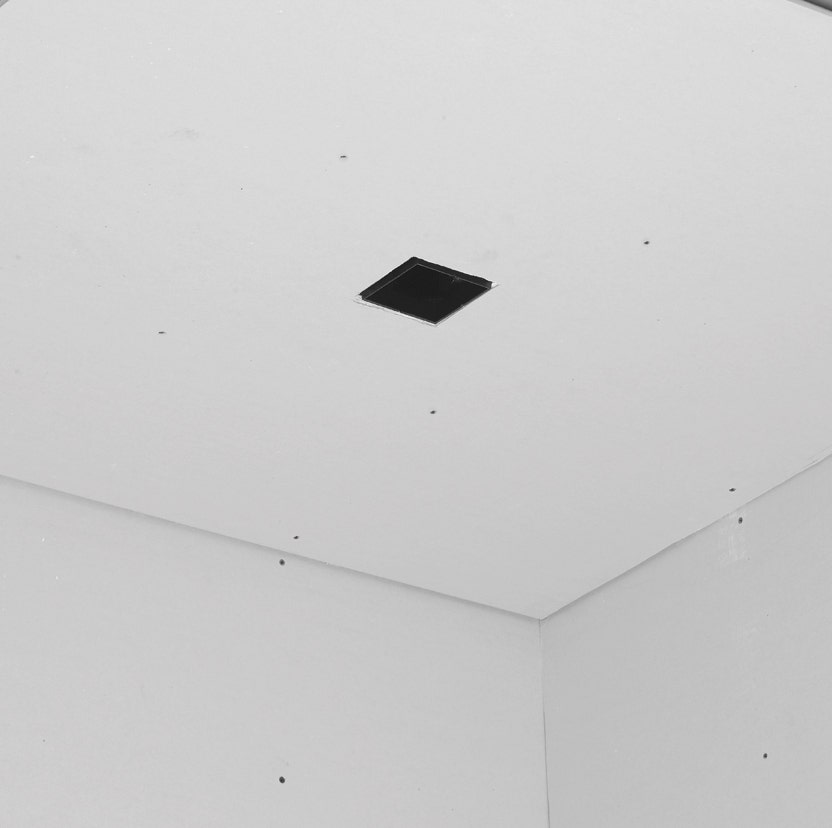

STEP 2


Mount wall board to ceiling and walls.
STEP 3


Attach plaster plate to aperture using supplied hardware.

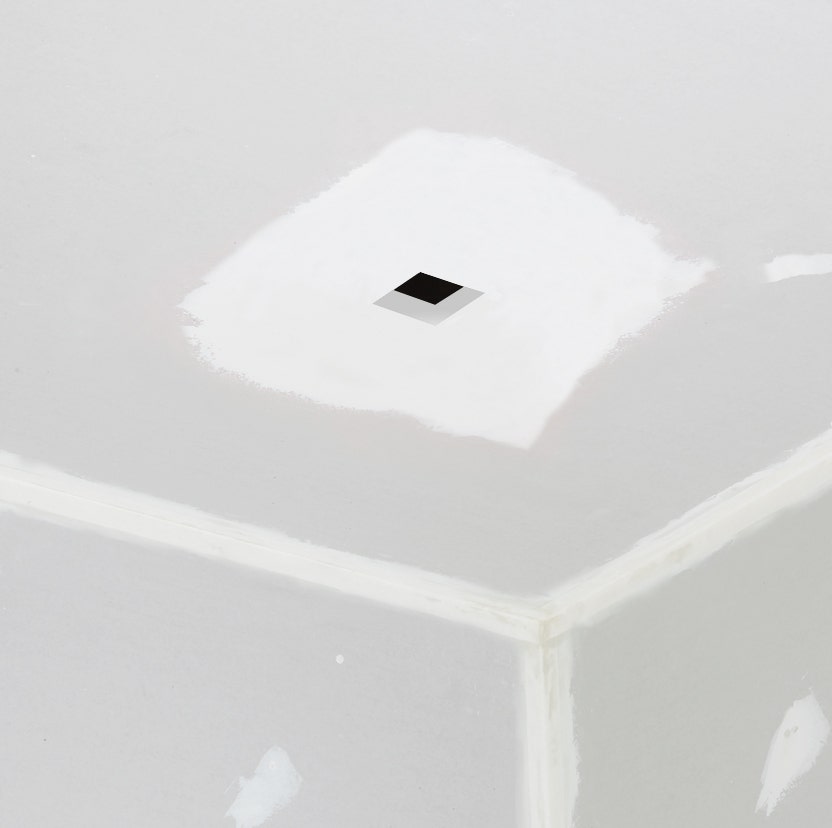

STEP 4


Skim coat around the plaster plate and up to the aperture for a seamless appearance.

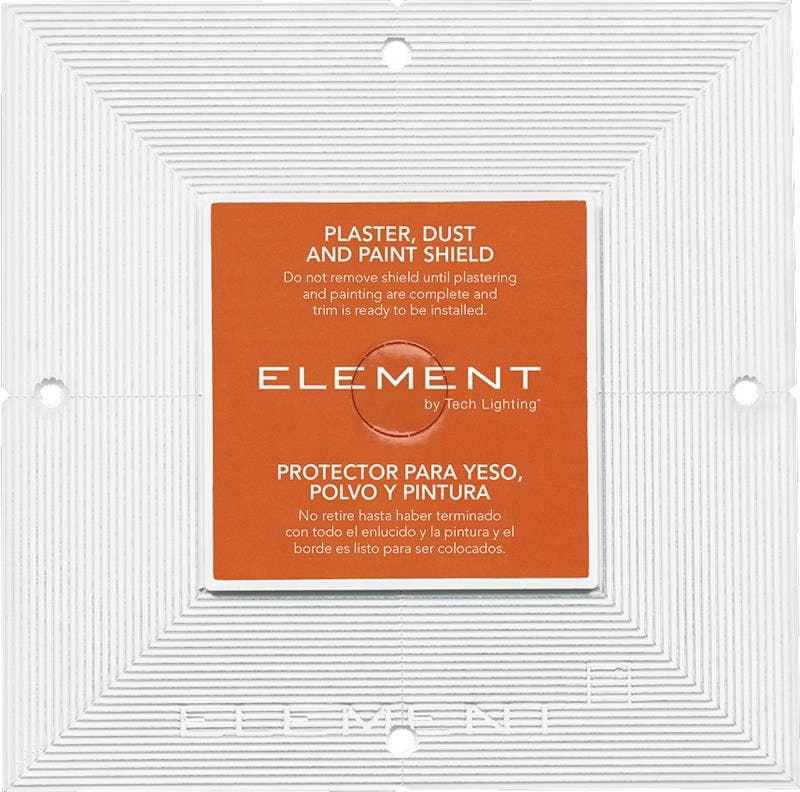

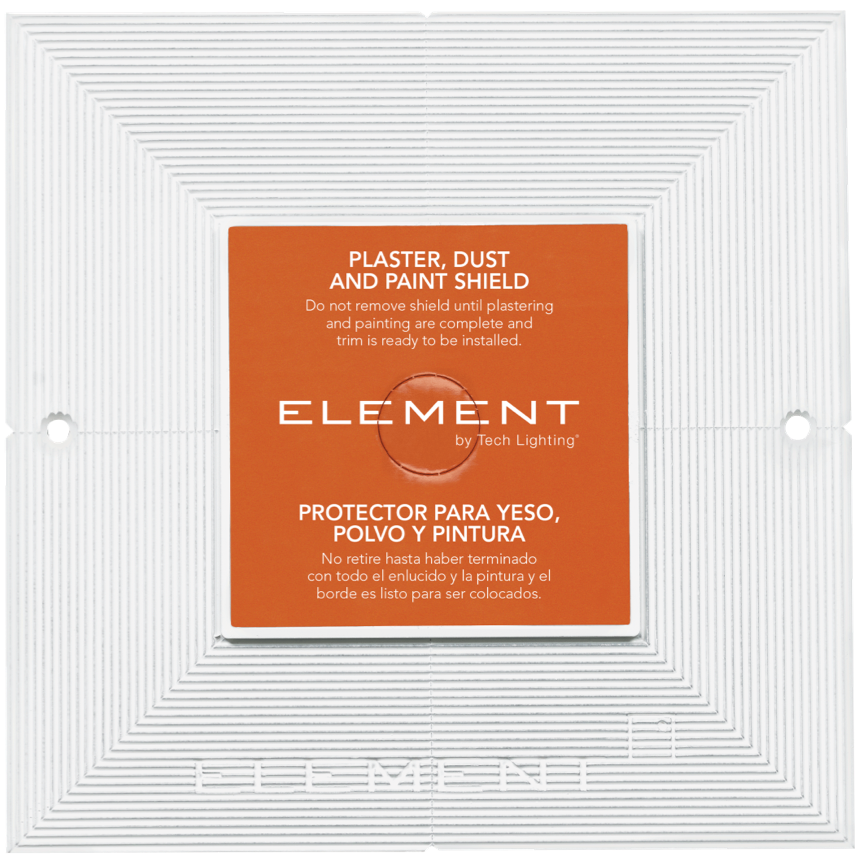

Plaster Plates
Rugged and durable, Plaster Plates ensure no seams, no cracks, no flexing when install flangeless trims.


DIE-CAST


SHEET METAL
The standard 3" aperture die-cast mud plate creates a tight, inflexible bond with the housing.
Ships standard on Element 3"


Sheet metal mud plates allow for less plaster feathering in tightly configured downlight installations.
Ships standard on 2" and 4" housing and optional on 3" housings

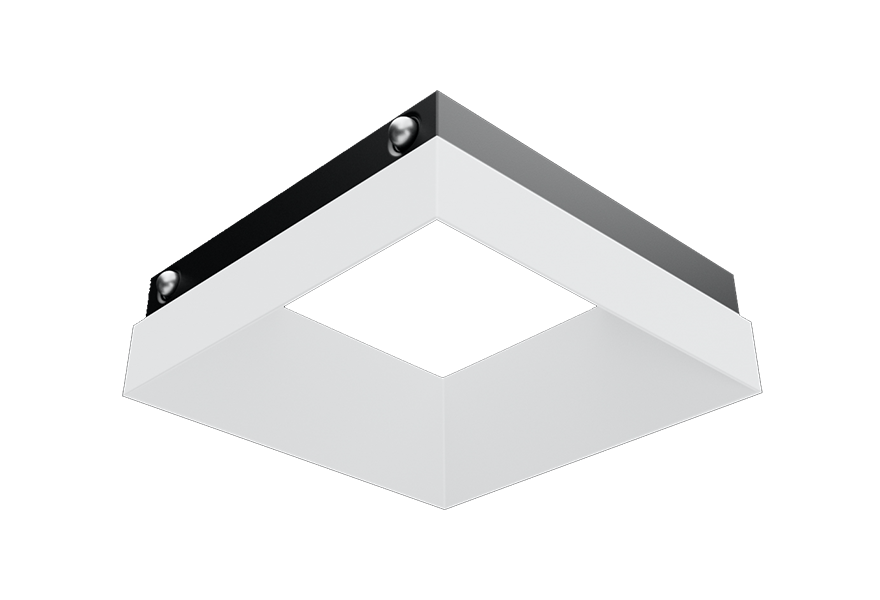

Precision Die-Cast Architectural Trims
The trim plays a significant role in the ‘at the ceiling’ experience as it blends into the architecture of the space. No seams. No warping. No sagging.

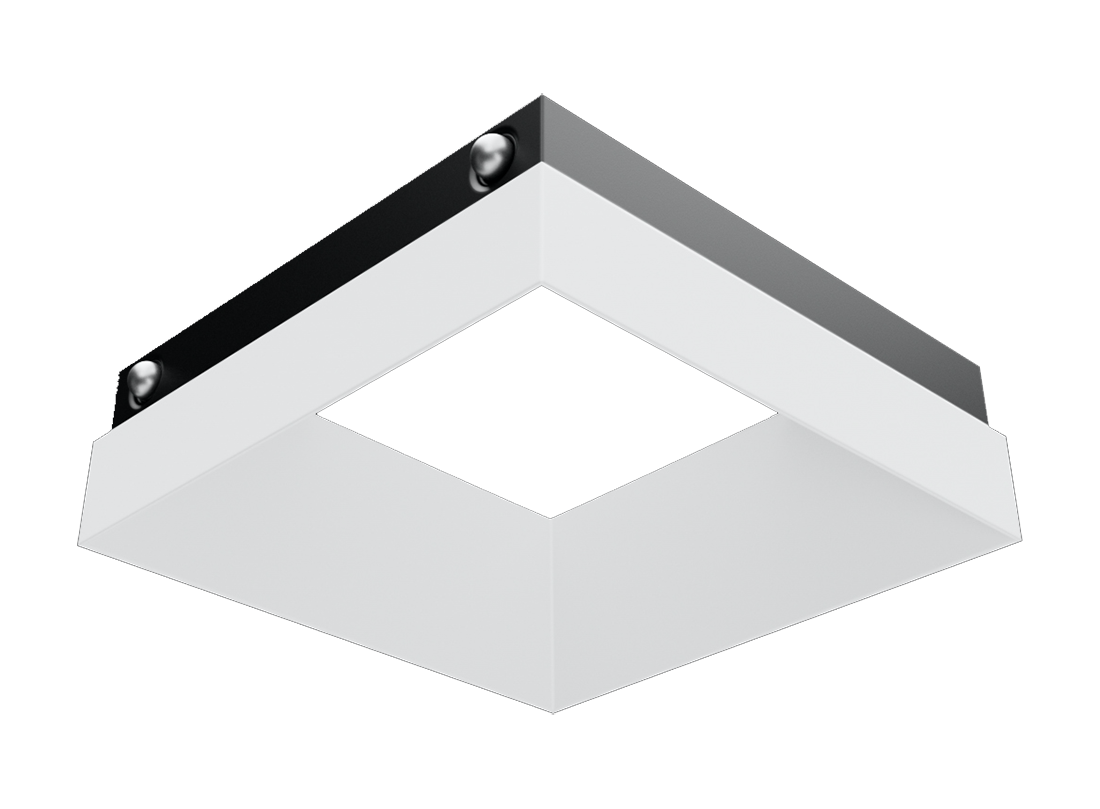

VIEW WITHOUT LENS

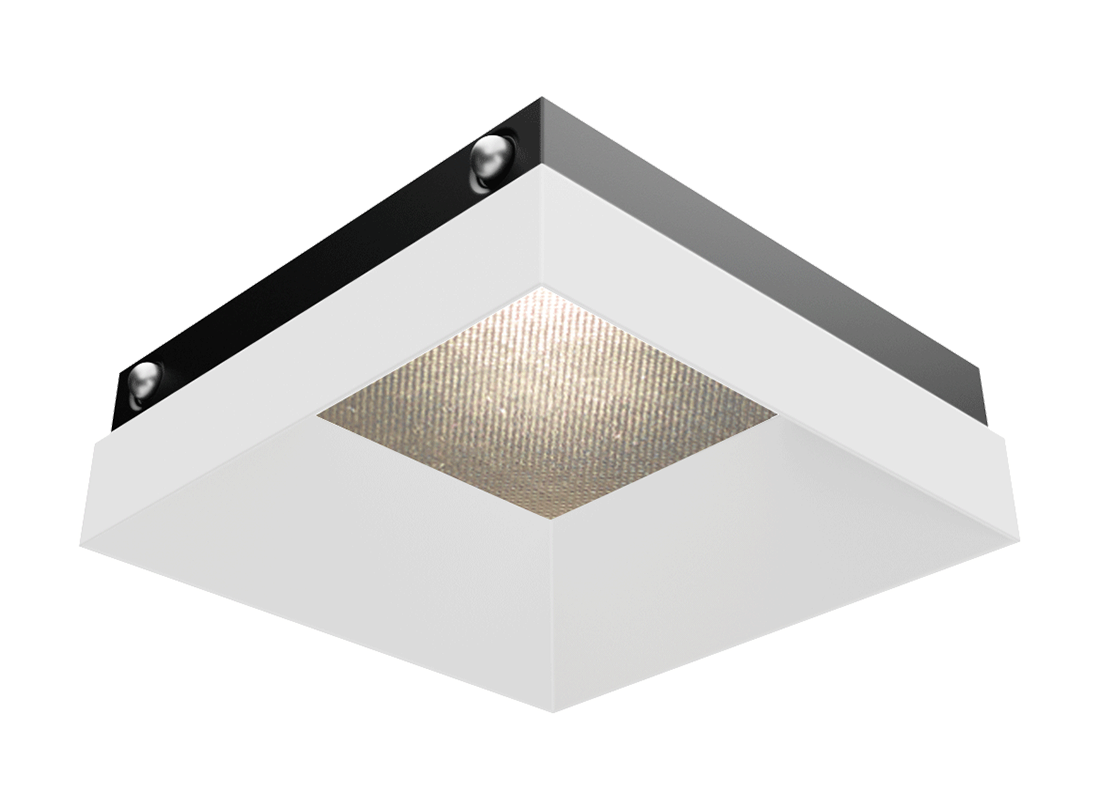

VIEW WITH LENS


TWO-TONE FINISH
features a painted black interior for reduced glare and flash
ONE PIECE DIE CAST
seamless corners and rugged durability that will not warp
PRECISION TENSION SPRINGS
heat-treated for optimal strength and solid mechanical mounting
LENS TRIM KITS
available as lensed to reduce visibility into the fixture or for shower applications

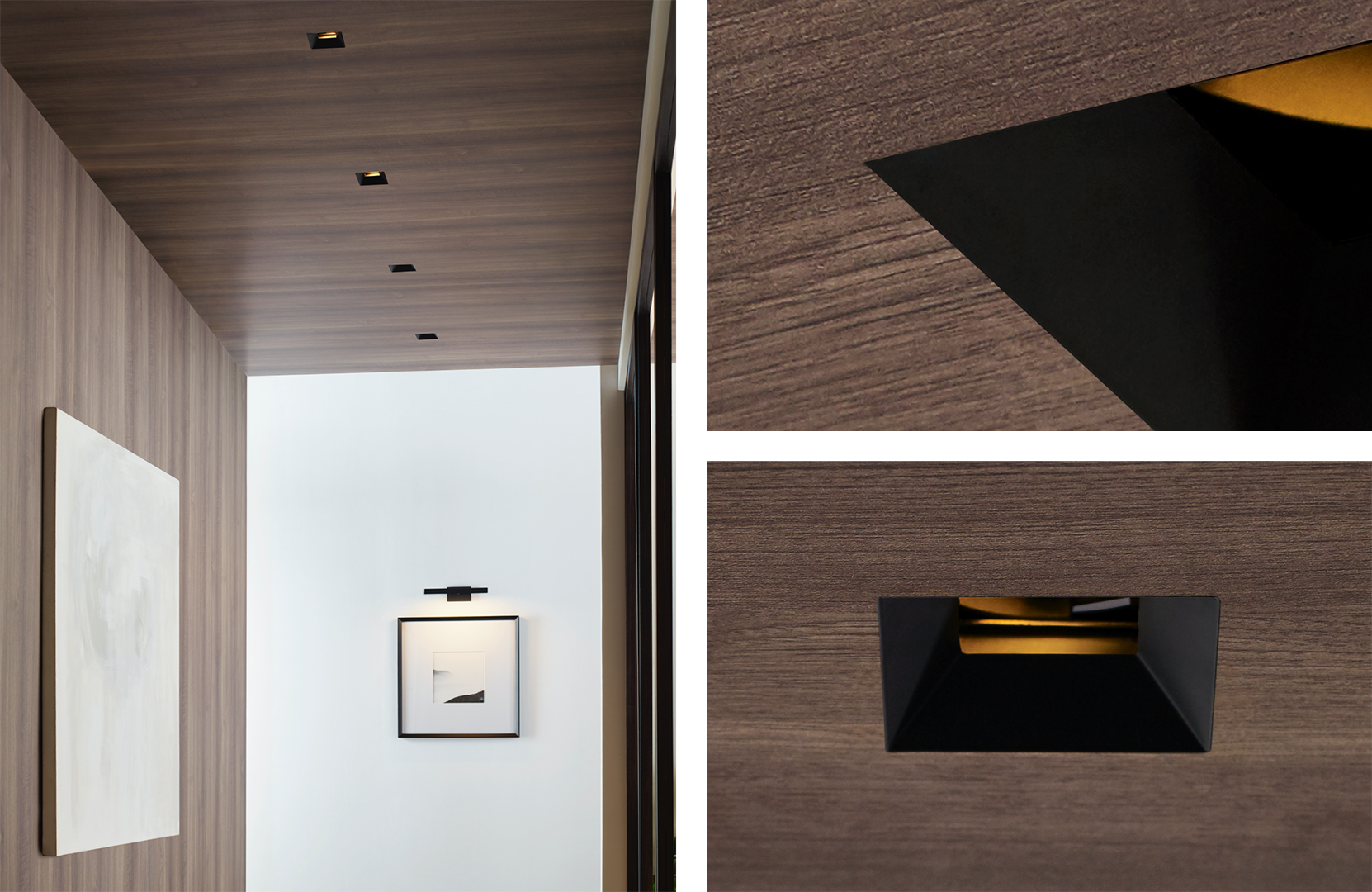

True Flangeless Wood Ceiling Installation
ELEMENT wood ceiling housings allow a standard ELEMENT 3" flangeless trim to achieve a truly flangeless, flush ceiling appearance in special applications such as wood or stone.


Numerous Housings
A wide assortment of housings suit nearly any new construction or remodel project. Specialty housings allow for a unified look across the space regardless of what is happening above the ceiling.

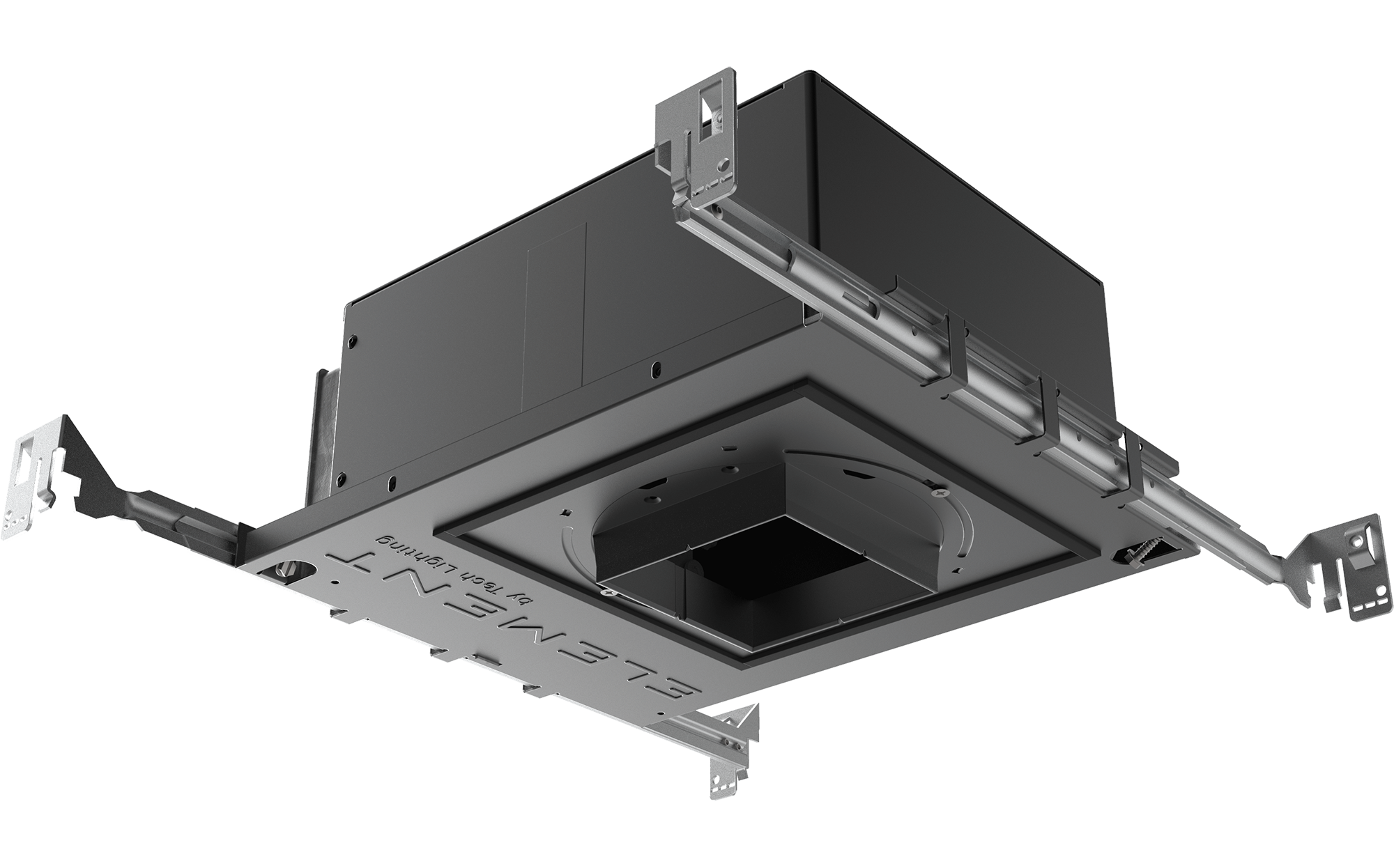

NEW CONSTRUCTION

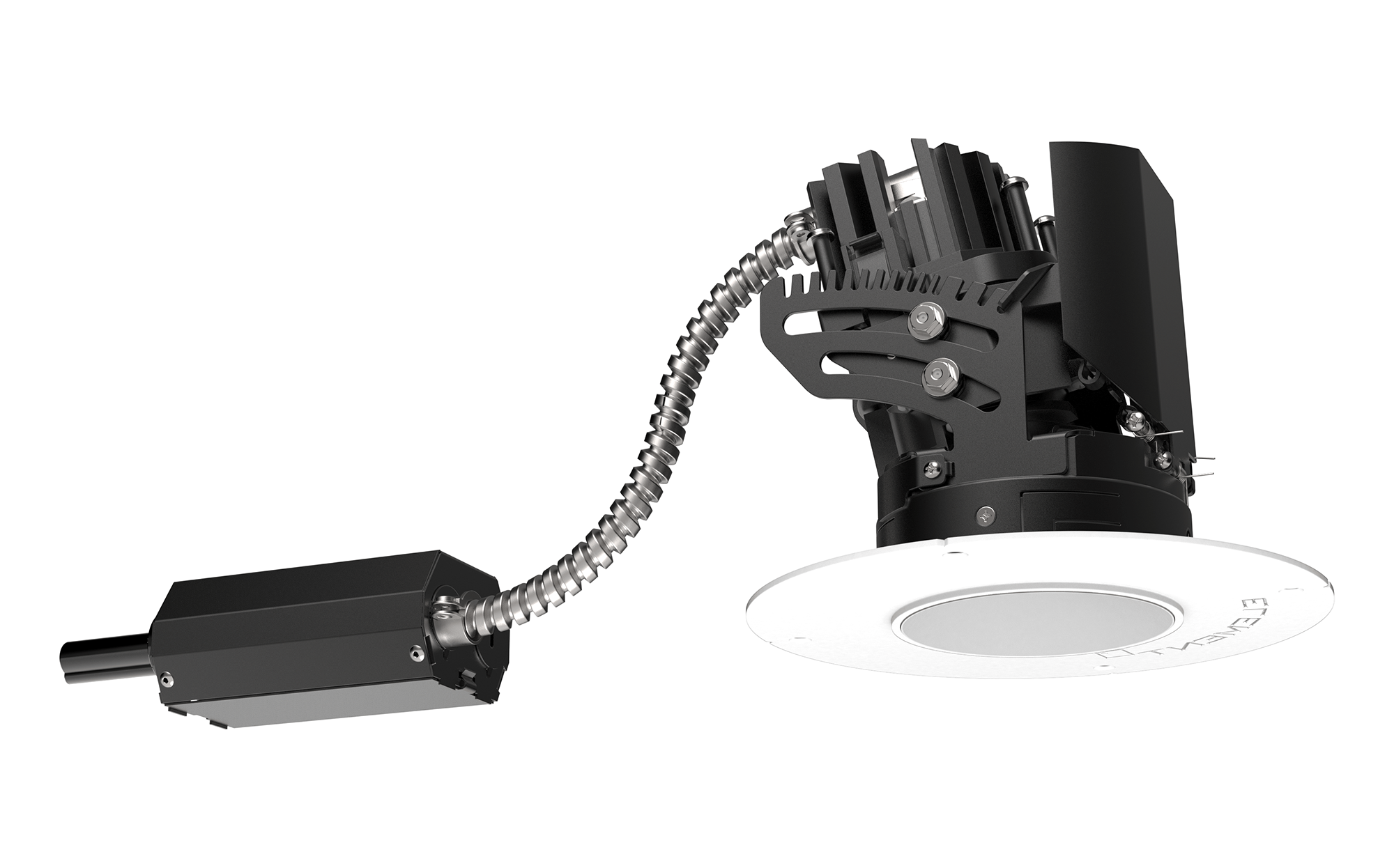

REMODEL


INSULATION CONTACT (IC)


NON-INSULATION CONTACT (NON-IC)

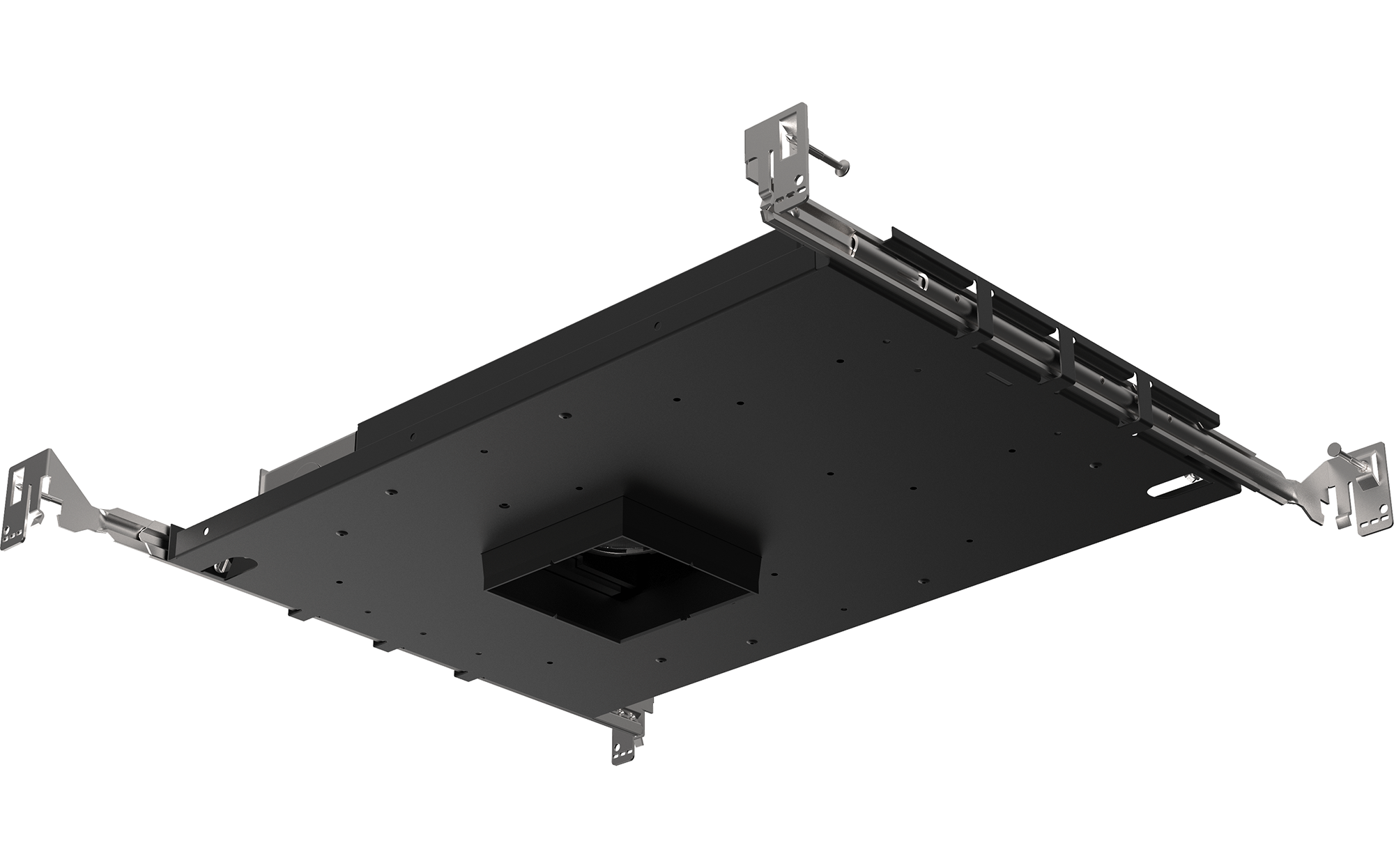

STANDARD HEIGHT


ULTRA-SHALLOW
Accessories


LENSES AND LOUVERS
A wide selection of compatible lenses and optical controls designed to help tailor the performance to your exact specifications.

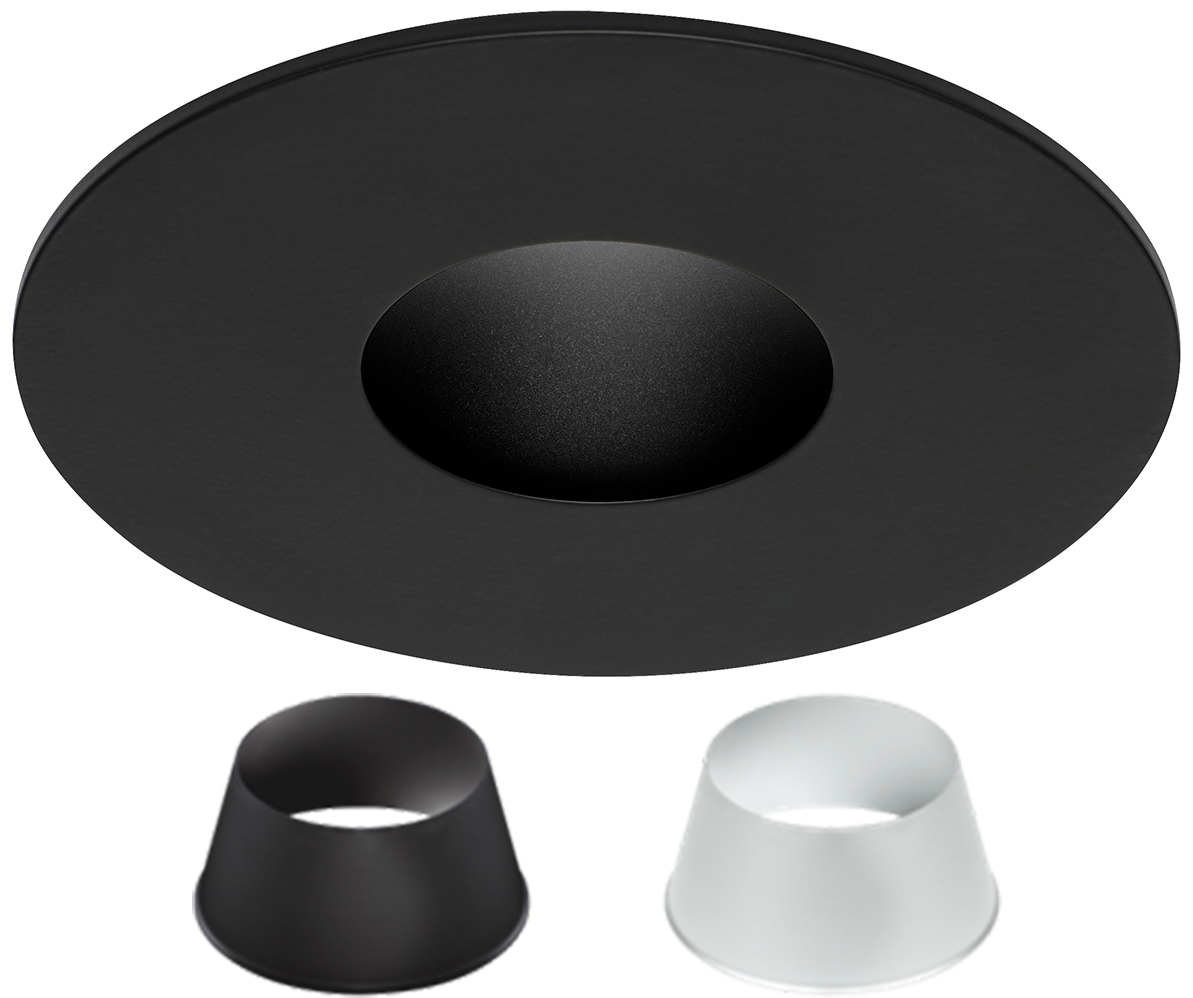

REFLECTORS
Optional specular reflectors reduce glare while creating a clean, quiet ceiling appearance.

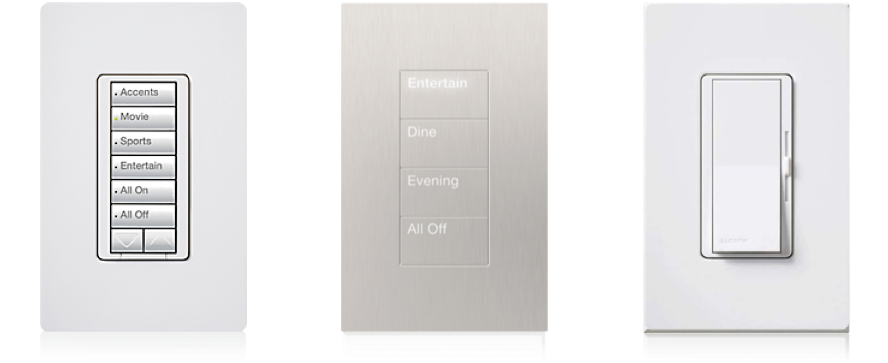

Controls
Lighting is the only dynamic design element. By turning different lights on and off or dimming them at various levels, we completely change how we experience a space. The drivers that power our LED fixtures provide deep dimming to 1% or less and are compatible with a wide variety of third-party dimmer controls.
