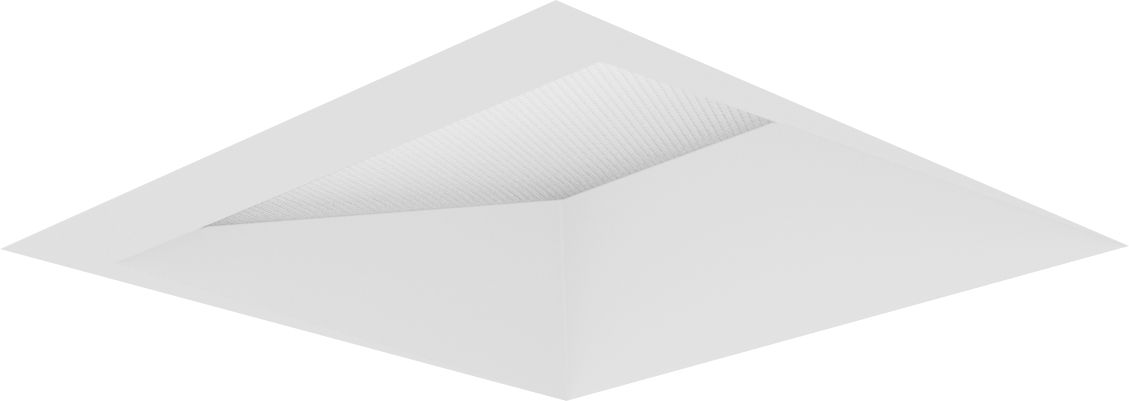

4" Pro Series LED Wall Wash
$100.00
Item
element-4-pro-series-led-wall-wash
ARCHITECTURAL COLLECTION
Description
The ELEMENT™ 4" Pro Series Wall Wash introduces a budget-friendly, specification-grade wall wash downlight that creates a beautifully uniform high output flood of illumination from top to bottom of the wall, without scalloping and hotspots - eliminating shadowing. The ELEMENT 4" Pro Series Wall Wash offers premium LED options with Static White, Warm Dim, and Tunable White.
1-step SDCM
- Smooth and consistent flood of illumination without scalloping or hotspots
- Flanged/flangeless die-cast trims
- Flangeless wood ceiling installation available
- Trims match the ELEMENT 4" Pro Series platform
OVERVIEW
The ELEMENT™ 4" Pro Series Wall Wash introduces a budget-friendly, specification-grade wall wash downlight that creates a beautifully uniform high output flood of illumination from top to bottom of the wall, without scalloping and hotspots - eliminating shadowing. The ELEMENT 4" Pro Series Wall Wash offers premium LED options with Static White, Warm Dim, and Tunable White.
1-step SDCM
- Smooth and consistent flood of illumination without scalloping or hotspots
- Flanged/flangeless die-cast trims
- Flangeless wood ceiling installation available
- Trims match the ELEMENT 4" Pro Series platform
Configure 4" Pro Series LED Wall Wash
1. Select Housing (Required)
| E4PR | ELEMENT 4" Pro Series LED Wall Wash Housing Round |
| E4PS | ELEMENT 4" Pro Series LED Wall Wash Housing Square |
| WC | Flangeless Wood Ceiling |
| L | Flangeless |
| F | Flanged |
| -L08 | 8W (750 LMS) |
| -L12 | 12W (1100 LMS) |
| -L17 | 17W (1600 LMS) |
| -L24 | 24W (2000 LMS) |
| -L29 | 29W (2300 LMS) |
| W | Wall Wash |
| I | IC Airtight |
| N | Non-IC Airtight |
| C | Chicago Plenum |
| Universal Phase/0-10V 1%-120V (Leave Blank) | |
| -ELD0 | EldoLED 0.1% 0-10V Linear-120V |
| -ELD0A | EldoLED 0.1% 0-10V Logarithmic-120V |
| -ELDD | EldoLED 0.1% DALI-120V |
| -ELT0 | EldoLED Tunable White 0.1% 0-10V Linear-120V |
| -ELTD | EldoLED Tunable White 0.1% DALI-120V |
| -HLECO | Lutron Hi-Lume 0.1% EcoSystem-120V |
| -2 | Universal Phase/0-10V 1%-277V |
| -ELD0-2 | EldoLED 0.1% 0-10V Linear-277V |
| -ELD0A-2 | EldoLED 0.1% 0-10V Logarithmic-277V |
| -ELDD-2 | EldoLED 0.1% DALI-277V |
| -ELT0-2 | EldoLED Tunable White 0.1% 0-10V Linear-277V |
| -ELTD-2 | EldoLED Tunable White 0.1% DALI-277V |
| -HLECO-2 | Lutron Hi-Lume 0.1% EcoSystem-277V |
2. Select Trim (Required To Choose One)
| E4PR | ELEMENT 4" Pro Series LED Wall Wash Trim/Module Round |
| E4PS | ELEMENT 4" Pro Series LED Wall Wash Trim/Module Square |
| LW | Flangeless Wall Wash |
| FW | Flanged Wall Wash |
| -830 | 80 CRI, 3000K, 1-Step |
| -835 | 80 CRI, 3500K, 1-Step |
| -927 | 90 CRI, 2700K, 1-Step |
| -930 | 90 CRI, 3000K, 1-Step |
| -935 | 90 CRI, 3500K, 1-Step |
| -TW52 | 90 CRI, 5000K-2700K, Tunable White, 2-Step |
| -840 | 80 CRI, 4000K, 1-Step |
| -940 | 90 CRI, 4000K, 1-Step |
| -WD31 | 90 CRI, 3000-1800K, Warm Dim, 2-Step |
| -B | Black |
| -W | White |
