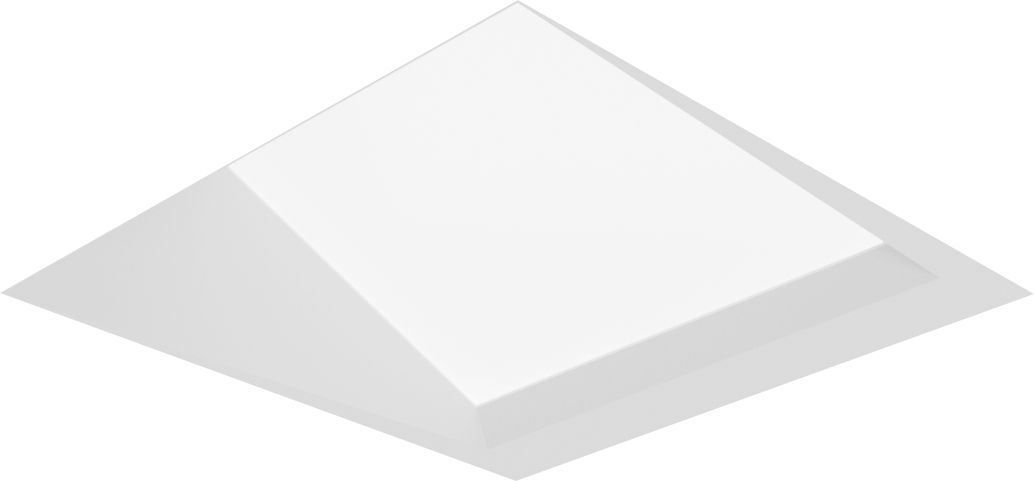

4" LED Wall Wash
$100.00
Item
element-4-led-wall-wash
ARCHITECTURAL COLLECTION
Description
The ELEMENT™ 4" Wall Wash sets a new standard for best-in-class as it couples with heightened performance and creates a beautifully uniform high output flood of illumination from top to bottom of the wall, without scalloping and hotspots - eliminating shadowing. The ELEMENT 4" Wall Wash is the ideal solution for illuminating large vertical areas and highlighting multiple focal points, textures, designs, and offers premium LED options with Static White, Warm Dim, and Tunable White.
1-step SDCM
- Best in class performance for smooth and consistent flood of illumination without scalloping or hotspots
- Flanged/flangeless die cast trims
- Flangeless wood ceiling installation available
OVERVIEW
The ELEMENT™ 4" Wall Wash sets a new standard for best-in-class as it couples with heightened performance and creates a beautifully uniform high output flood of illumination from top to bottom of the wall, without scalloping and hotspots - eliminating shadowing. The ELEMENT 4" Wall Wash is the ideal solution for illuminating large vertical areas and highlighting multiple focal points, textures, designs, and offers premium LED options with Static White, Warm Dim, and Tunable White.
1-step SDCM
- Best in class performance for smooth and consistent flood of illumination without scalloping or hotspots
- Flanged/flangeless die cast trims
- Flangeless wood ceiling installation available
Configure 4" LED Wall Wash
1. Select Housing (Required)
| E4R | ELEMENT 4" LED Wall Wash Housing Round |
| E4S | ELEMENT 4" LED Wall Wash Housing Square |
| WC | Flangeless Wood Ceiling |
| L | Flangeless |
| F | Flanged |
| W | Wall Wash |
| -LH | High Output, 29W |
| -LO | Low Output, 17W |
| I | IC Airtight |
| N | Non-IC Airtight |
| C | Chicago Plenum |
| Universal Phase/0-10V 1%-120V (Leave Blank) | |
| -ELD0 | EldoLED 0.1% 0-10V Linear-120V |
| -ELD0A | EldoLED 0.1% 0-10V Logarithmic-120V |
| -ELDD | EldoLED 0.1% DALI-120V |
| -ELT0 | EldoLED Tunable White 0.1% 0-10V Linear-120V |
| -ELTD | EldoLED Tunable White 0.1% DALI-120V |
| -HLECO | Lutron Hi-Lume 0.1% EcoSystem-120V |
| -277 | Universal Phase/0-10V 1%-277V |
| -ELD0-277 | EldoLED 0.1% 0-10V Linear-277V |
| -ELD0A-277 | EldoLED 0.1% 0-10V Logarithmic-277V |
| -ELDD-277 | EldoLED 0.1% DALI-277V |
| -ELT0-277 | EldoLED Tunable White 0.1% 0-10V Linear-277V |
| -ELTD-277 | EldoLED Tunable White 0.1% DALI-277V |
| -HLECO-277 | Lutron Hi-Lume 0.1% EcoSystem-277V |
2. Select Trim (Required To Choose One)
| E4R | ELEMENT 4" LED Wall Wash Trim Round |
| E4S | ELEMENT 4" LED Wall Wash Trim Square |
| LW | Flangeless Wall Wash |
| FW | Flanged Up To 1" Ceiling Thickness Wall Wash |
| -827 | 80 CRI, 2700K, 1-Step |
| -830 | 80 CRI, 3000K, 1-Step |
| -835 | 80 CRI, 3500K, 1-Step |
| -927 | 90 CRI, 2700K, 1-Step |
| -930 | 90 CRI, 3000K, 1-Step |
| -935 | 90 CRI, 3500K, 1-Step |
| -WD | 90 CRI, 3000-1800K, Warm Dim, 2-Step |
| -TW52 | 90 CRI, 5000K-2700K, Tunable White, 2-Step |
| -Z | Antique Bronze |
| -B | Black |
| -S | Satin Nickel |
| -W | White |
