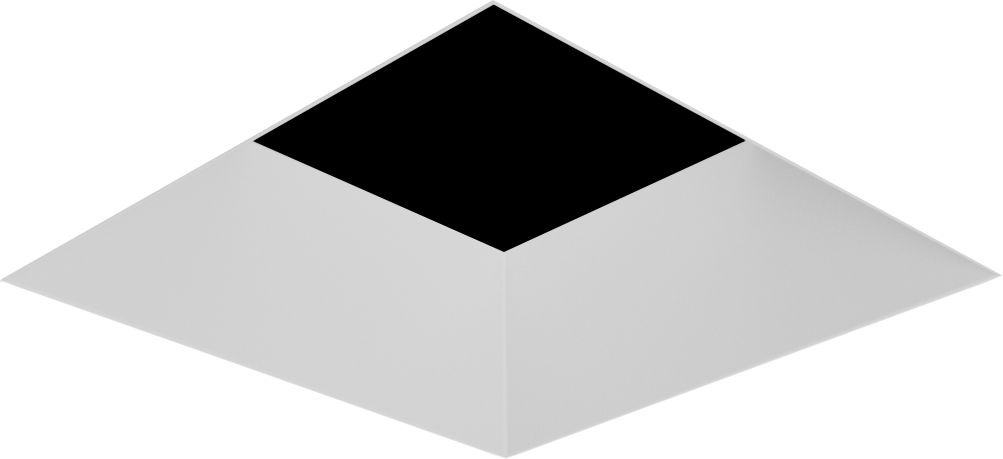

3" LED Shallow Adjustable Downlight
$100.00
Item
element-3-led-shallow-adjustable-downlight
ARCHITECTURAL COLLECTION
Description
The ELEMENT™ 3" Shallow Adjustable Downlight blends stunning architectural aesthetics with exceptional performance while designed to install into even the most limited of plenums. Experience complete adjustability through lockable, tool-free, hot aiming for effortless precision. Standing short at only 3", the Shallow Adjustable Downlight is able to achieve the same performance as the rest of the ELEMENT 3" platform. The ELEMENT 3" Shallow Adjustable Downlight offers premium LED options with Static White and Warm Dim.
- 1-step SDCM
- 3" housing height
- Tool-free aiming/locking, 0-40° tilt + 361° rotation
- Interchangeable optics: 10°, 18°, 25°, 40°, 60°
- Flanged/flangeless die-cast Bevel and Flat trims
- Flangeless wood ceiling installation available
- Trims match the ELEMENT 3" platform
OVERVIEW
The ELEMENT™ 3" Shallow Adjustable Downlight blends stunning architectural aesthetics with exceptional performance while designed to install into even the most limited of plenums. Experience complete adjustability through lockable, tool-free, hot aiming for effortless precision. Standing short at only 3", the Shallow Adjustable Downlight is able to achieve the same performance as the rest of the ELEMENT 3" platform. The ELEMENT 3" Shallow Adjustable Downlight offers premium LED options with Static White and Warm Dim.
- 1-step SDCM
- 3" housing height
- Tool-free aiming/locking, 0-40° tilt + 361° rotation
- Interchangeable optics: 10°, 18°, 25°, 40°, 60°
- Flanged/flangeless die-cast Bevel and Flat trims
- Flangeless wood ceiling installation available
- Trims match the ELEMENT 3" platform
Configure 3" LED Shallow Adjustable Downlight
1. Select Housing (Required)
| E3R | ELEMENT 3" LED Shallow Adjustable Housing Round |
| E3S | ELEMENT 3" LED Shallow Adjustable Housing Square |
| LF | Flangeless |
| FF | Flanged |
| WC | Flangeless Wood Ceiling |
| -LH | High Output, 17W |
| -LO | Low Output, 12W |
| 827 | 80 CRI, 2700K, 1-Step |
| 830 | 80 CRI, 3000K, 1-Step |
| 835 | 80 CRI, 3500K, 1-Step |
| 927 | 90 CRI, 2700K, 1-Step |
| 930 | 90 CRI, 3000K, 1-Step |
| 935 | 90 CRI, 3500K, 1-Step |
| WD | 90 CRI, 3000-1800K, Warm Dim, 2-Step |
| 922 | 90 CRI, 2200K, 2-Step |
| 924 | 90 CRI, 2400K, 2-Step |
| 0 | 10° |
| 1 | 18° |
| 2 | 25° |
| 4 | 40° |
| 6 | 60° |
| A | Adjustable |
| SH | SHALLOW IC Airtight |
| CSH | SHALLOW IC Chicago Plenum |
| Universal Phase/0-10V 1% (Leave Blank) |
2. Select Trim (Required To Choose One)
3" Standard Trim
| E3R | ELEMENT 3" Trim Round |
| E3S | ELEMENT 3" Trim Square |
| L | Flangeless |
| F | Flanged Up To 1" Ceiling Thickness |
| F15 | Flanged 1.1"-1.5" Ceiling Thickness |
| F20 | Flanged 1.6"-2.0" Ceiling Thickness |
| F25 | Flanged 2.1"-2.5" Ceiling Thickness |
| B | Bevel |
| F | Flat |
| B8 | 80° Bevel |
| -O | No Lens |
| -H | Shower |
| -L | Lensed |
| W | White |
| Z | Antique Bronze |
| B | Black |
| S | Satin Nickel |
