3" LED Dual Adjustable Downlight
$100.00
Item
element-3-led-dual-adjustable-downlight
ARCHITECTURAL COLLECTION
Description
The ELEMENT™ 3" Dual Adjustable Downlight blends stunning architectural aesthetics with exceptional performance by pairing two closely spaced downlights, giving designers the freedom to independently aim each one to meet the demanding requirements of task or accent lighting. Experience complete adjustability through lockable, tool-free, hot aiming for effortless precision. The ELEMENT 3" Dual Adjustable Downlight offers premium LED options with Static White and Warm Dim.
- 1-step SDCM
- Tool-free aiming/locking, 0-40° tilt + 361° rotation
- Interchangeable optics: 10°, 18°, 25°, 40°, 60°
- Flanged/flangeless die-cast Bevel and Flat trims
- Flangeless wood ceiling installation available
- Trims match the ELEMENT 3" platform
OVERVIEW
The ELEMENT™ 3" Dual Adjustable Downlight blends stunning architectural aesthetics with exceptional performance by pairing two closely spaced downlights, giving designers the freedom to independently aim each one to meet the demanding requirements of task or accent lighting. Experience complete adjustability through lockable, tool-free, hot aiming for effortless precision. The ELEMENT 3" Dual Adjustable Downlight offers premium LED options with Static White and Warm Dim.
- 1-step SDCM
- Tool-free aiming/locking, 0-40° tilt + 361° rotation
- Interchangeable optics: 10°, 18°, 25°, 40°, 60°
- Flanged/flangeless die-cast Bevel and Flat trims
- Flangeless wood ceiling installation available
- Trims match the ELEMENT 3" platform
Configure 3" LED Dual Adjustable Downlight
1. Select Housing (Required)
| E3R | ELEMENT 3" LED Dual Adjustable Housing Round |
| E3S | ELEMENT 3" LED Dual Adjustable Housing Square |
| WC | Flangeless Wood Ceiling |
| L | Flangeless |
| F | Flanged |
| -LH | High Output, 34W |
| -LO | Low Output, 24W |
| 827 | 80 CRI, 2700K, 1-Step |
| 830 | 80 CRI, 3000K, 1-Step |
| 835 | 80 CRI, 3500K, 1-Step |
| 927 | 90 CRI, 2700K, 1-Step |
| 930 | 90 CRI, 3000K, 1-Step |
| 935 | 90 CRI, 3500K, 1-Step |
| WD | 90 CRI, 3000-1800K, Warm Dim, 2-Step |
| 922 | 90 CRI, 2200K, 2-Step |
| 924 | 90 CRI, 2400K, 2-Step |
| 0 | 10° |
| 1 | 18° |
| 2 | 25° |
| 4 | 40° |
| 6 | 60° |
| DA | Dual Adjustable |
| I | IC Airtight |
| N | Non-IC Airtight |
| C | Chicago Plenum |
| Universal Phase/0-10V 1% (Leave Blank) |
2. Select Trim (Required To Choose One)

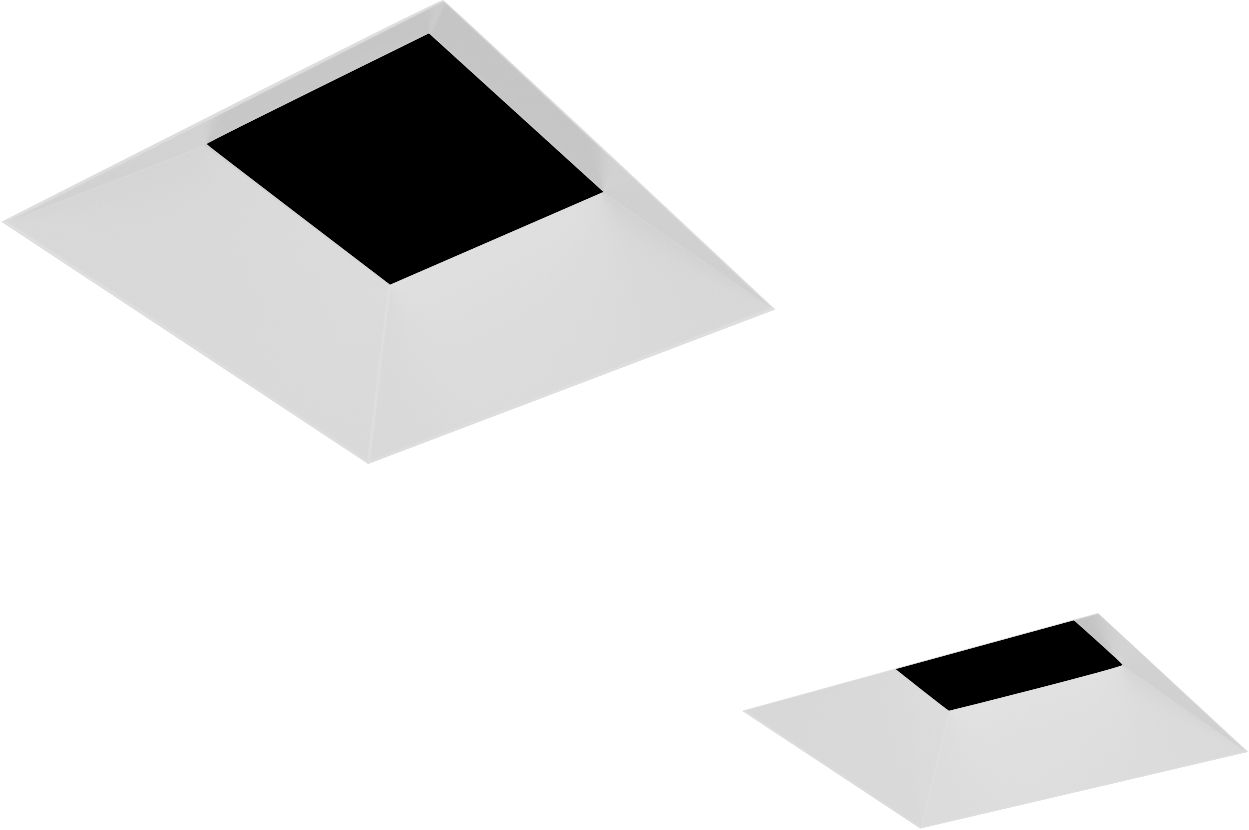

| E3R | ELEMENT 3" Trim Round |
| E3S | ELEMENT 3" Trim Square |
| L | Flangeless |
| F | Flanged Up To 1" Ceiling Thickness |
| F15 | Flanged 1.1"-1.5" Ceiling Thickness |
| F20 | Flanged 1.6"-2.0" Ceiling Thickness |
| F25 | Flanged 2.1"-2.5" Ceiling Thickness |
| B | Bevel |
| F | Flat |
| B8 | 80° Bevel |
| -O | No Lens |
| -H | Shower |
| -L | Lensed |
| W | White |
| Z | Antique Bronze |
| B | Black |
| S | Satin Nickel |
