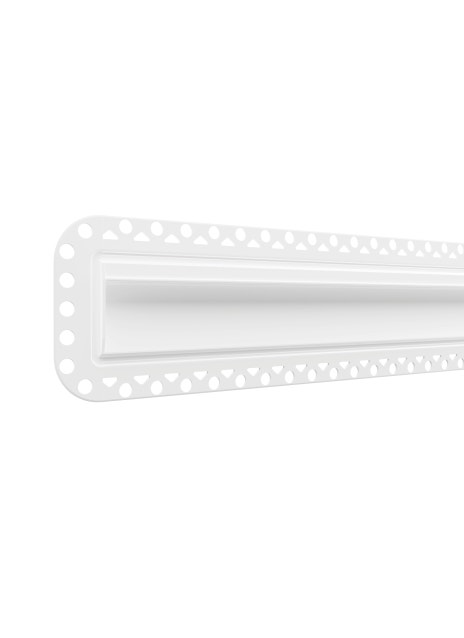

Recessed Flangeless Mud-In Cove/Toe Kick
$100.00
Item
recessed-flangeless-mud-in-cove-toe-kick
VC ARCHITECTURAL
Description
Create layers of light with soft indirect illumination at floor level for an elegant modern aesthetic or draw the eye upward by highlighting cove architectural features that add depth and dimension to your space with ESSENCE Recessed Flangeless Mud-In Cove/Toe- Kick accent lighting. No stud or joist modification is necessary as the ESSENCE Recessed Flangeless Mud-In Cove/Toe-Kick fixture’s slim profile installs directly into half-inch drywall.
- Clean Aesthetic with Minimal Shadowing
- Once installed, the channel is concealed, and only the fixture aperture is visible
- Tight LED pitch (Static White. 72 LEDs/ft. Warm Dim. 52 LEDs/ft)
- Ease of Specifying and Installation
- May be installed in drywall that is 1/2" or larger without stud/joist modification
- Suitable for wall mount
- Factory Assembled and Field Assembled options are available
- Fixtures are available in 1-in increments up to 50 ft of illuminated length
- For applications requiring longer runs up to 100 ft of illuminated length, specify two fixtures and install the Access Boxes at the ends of the run
- Fixtures longer than 8 ft contain multiple segments that are joined in the field
- The included tool allows for easy LED Tape installation into the channel
- Application Versatility
- Provides indirect illumination on the floor (toe kick) or ceiling (cove)
- Reverse-phase, forward-phase, and TRIAC dimming down to 0.2%, Lutron Hi-lume Ecosystem down to 0.1%, and eldoLED 0-10V down to 0.1%
- Registered CEC appliance database. complies with CEC 2019 title 24 part 6
- ETL listed Class 2, Damp Location
- ADA compliant
Downloads
Back to Top
Create layers of light with soft indirect illumination at floor level for an elegant modern aesthetic or draw the eye upward by highlighting cove architectural features that add depth and dimension to your space with ESSENCE Recessed Flangeless Mud-In Cove/Toe- Kick accent lighting. No stud or joist modification is necessary as the ESSENCE Recessed Flangeless Mud-In Cove/Toe-Kick fixture’s slim profile installs directly into half-inch drywall.
Configure Recessed Flangeless Mud-In Cove/Toe Kick
| ESRLCV | ESSENCE Recessed Flangeless Mud-In Cove/Toe Kick |
| U | U-Series |
| P | P-Series |
| D | D-Series |
| 17 | 170 LM/FT |
| 29 | 295 LM/FT |
| 12 | 120 LM/FT |
| 19 | 195 LM/FT |
| 28 | 285 LM/FT |
| 44 | 440 LM/FT |
| 924 | 2400K |
| 927 | 2700K |
| 930 | 3000K |
| 935 | 3500K |
| 942 | 4200K |
| 9W31 | Warm Dim 3000K-1800K |
| F | Frosted |
| ABES | Access Box | Standard End Cap |
| ABEL | Access Box | Low-Profile End Cap |
| AJES | Access Box With Junction Box | Standard End Cap |
| AJEL | Access Box With Junction Box | Low-Profile End Cap |
| F | Factory Assembled |
| D | Field Assembled |
