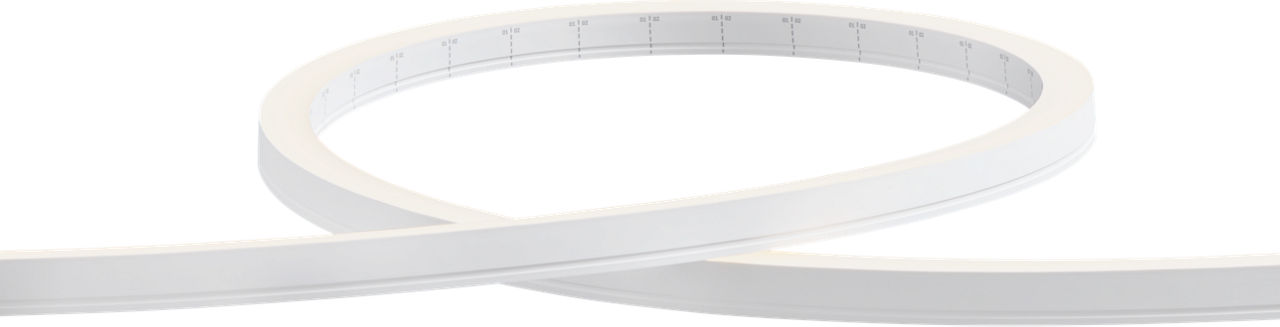

Essence Flex Side Bend 0606 Indoor/Outdoor Wet IP67 Static White LED Strip
$100.00
Item
flex-side-bend-0606-indoor-outdoor-wet-ip67-static-white
Only %1 left
ARCHITECTURAL COLLECTION
Description
ESSENCE™ Flex Side Bend Static White is a versatile flexible LED strip designed for indoor and outdoor architectural lighting applications. Delivering pixel-free illumination from a 0.6-inch profile, it bends horizontally to create seamless lighting details.
- Integral lens delivers pixel-free, uniform illumination. ;
- White silicone construction blends seamlessly into surrounding architecture when unlit. ;
- Factory-built in specified lengths from 6 inches to 600 inches. ;
- Mounting clips and mounting channel available for straight and curved applications. ;
- Fully sealed silicone construction protects internal components from moisture, dirt, and debris. ;
- Wet IP67 construction withstands demanding indoor and outdoor environments. ;
- Ideal for accent, cove, and architectural lighting. ;
- Compatible with reverse-phase, forward-phase, TRIAC, and 0-10V dimming. ;
- UL Listed Class 2 and Title 24 compliant.
Essence Flex Side Bend 0606 Indoor/Outdoor Wet IP67 Static White LED Strip
Description
ESSENCE™ Flex Side Bend Static White is a versatile flexible LED strip designed for indoor and outdoor architectural lighting applications. Delivering pixel-free illumination from a 0.6-inch profile, it bends horizontally to create seamless lighting details.
| ESSB0606 | ESSENCE Flex Side Bend .6" X .6" |
| P | P-Series |
Whole Numbers Only
| 09 | 90 LM/FT |
| 23 | 230 LM/FT |
| 924 | 2400K |
| 927 | 2700K |
| 930 | 3000K |
| 935 | 3500K |
| 942 | 4200K |
| F | Frosted |
| W | White |
| B | Back |
| E | End |
| N | No Feed |
| S1 | Side 1 |
| B | Back |
| E | End |
| N | No Feed |
| S1 | Side 1 |
| 7 | Wet IP67 |
ESSENCE Flex Rigid Mounting Channel
Description
ESSENCE™ Flex Rigid Mounting Channels are compatible with ESSENCE Flex 0606 LED Strips. Rigid Mounting Channels have an anodized aluminum finish. Available in 48" and 96" lengths and can be field cut to shorter lengths. Channels come with predrilled holes for mounting, 7.9-inches from each end. If field cutting channel, redrill mounting holes as needed.
| ESF0606 | ESSENCE Flex Rigid Mounting Channel |
| 48 | 48 IN |
| 96 | 96 IN |
| A | Satin Aluminum |
ESSENCE Flex Bendable Mounting Channel
Description
ESSENCE™ Flex Bendable mounting channel follows smooth curves. Bendable mounting channel can bend horizontally or vertically. Compatible with ESSENCE Flex 0606 LED Strip. Bendable mounting channel is stainless steel painted white. 39" long. Can be cut in field to shorter lengths. Mounting screws included.
| ESF06BND39W | ESSENCE Flex Bendable Mounting Channel |
ESSENCE Flex Mounting Bracket
Description
ESSENCE™ Flex Mounting Brackets are compatible with ESSENCE Flex 0606 LED Strips. Each pack comes with 2 mounting brackets and 4 screws. Mounting Brackets are transparent plastic, and install over the face of the LED Strip. Recommended for outdoor installations. The maximum bracket spacing is 8 inches.
| ESF06STR | ESSENCE Flex Mounting Bracket |
ESSENCE Flex Mounting Clip
Description
ESSENCE™ Flex Mounting Clips are compatible with ESSENCE Flex 0606 LED Strips. Mounting clips are stainless steel and painted white. Mounting clips included with ESSENCE Flex LED Strip, order additional as needed. Each pack contains two mounting clips and two screws.
| ESFCLPSF06W | ESSENCE Flex Mounting Clip |
ESSENCE Flex Wet IP68 Splice Box
Description
ESSENCE™ Flex Wet IP68 Splice Box is compatible with all ESSENCE Flex LED Strip. Provides a watertight enclosure for electrical wire connections for indoor and outdoor wet applications. Connect up to three wires with easy lever lock design. White finish. Slim 1-inch profile.
| ESFCW8 | ESSENCE Wet IP68 Splice Box |
